Description

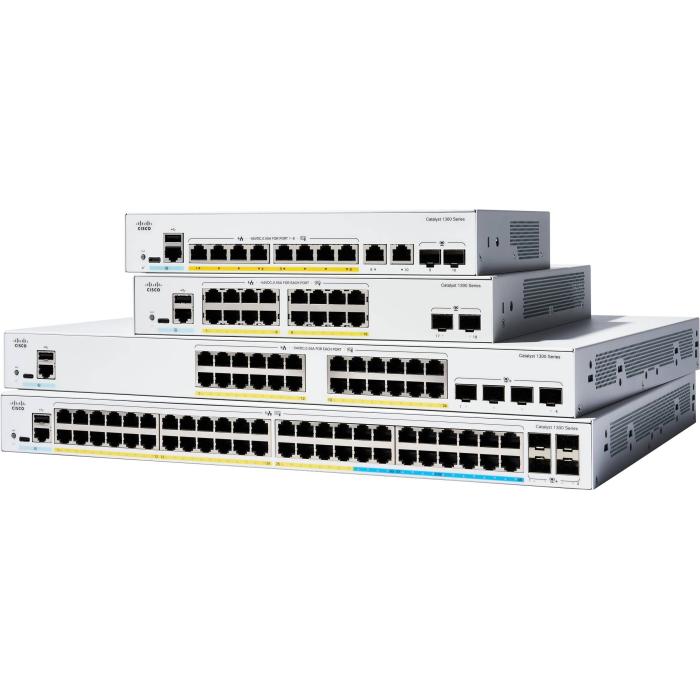

The Cisco Catalyst 1300 managed switch combines L2/L3 layers in a 24-port RJ-45 Gigabit Ethernet device, with four SFP slots for fibre uplinks and an RJ-45 or USB Type-C console port. This grey model integrates PoE support to power network devices directly from the unit, along with advanced features such as quality of service, port mirroring, link aggregation, and private or voice VLANs. Its web-based management and CLI configuration allow you to control traffic with rate limiting and policy-based routing, while HOL blocking and the spanning tree protocol ensure stable operation over Cat5e cabling. Ideal for corporate networks requiring a robust and scalable central point.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2/L3
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- Configuring Location Settings (CLI): Yes
- MIB support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- SFP module slots quantity: 4
- Console port: RJ-45/USB Type-C
Network
- Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.
- Cable types supported: Cat5e
- Port mirroring: Yes
- Policy-based routing: Yes
- Link aggregation: Yes
- Broadcast storm control: Yes
- Rate limiting: Yes
- Spanning tree protocol: Yes
- Head-of-line (HOL) blocking: Yes
- QinQ implementation: Selective QinQ
- VLAN support: Yes
- Virtual LAN features: Private VLAN, Voice VLAN
Data transmission
- Switching capacity: 56 Gbit/s
- MAC address table: 16000 entries
- Number of queues: 8
- Static route: Yes
- Number of static routes: 990
- Jumbo frames support: Yes
- Jumbo frames: 9000
- Packet buffer memory: 1.5 MB
Security
- DHCP features: DHCP auto-config, DHCP client, DHCP relay, DHCP server, DHCP snooping
- Access Control List (ACL): Yes
- Access Control List (ACL) rules: 1024
- IGMP snooping: Yes
- IGMP proxy: Yes
- Security algorithms: HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2
- SSH/SSL support: Yes
- Authentication: MAC-based authentication, Web-based authentication
- DoS attack prevention: Yes
- Authentication type: RADIUS, TACACS+
- Queue scheduling algorithms: Weighted Round Robin (WRR)
Multicast features
- Multicast support: Yes
Protocols
- GARP VLAN Registration Protocol (GVRP): Yes
- IPv4 & IPv6 features: ICMPv6, IPv6 SNMP, IPv6 SSH, IPv6 TFTP, IPv6 Telnet
Design
- Rack mounting: Yes
- Product colour: Grey
- Reset button: Yes
Performance
- Built-in processor: Yes
- Processor frequency: 1.4 MHz
- Memory type: DDR4-SDRAM
- Internal memory: 1000 MB
- Flash memory: 512 MB
- Plug and Play: Yes
- Mean time between failures (MTBF): 698220 h
Power
- Power source: AC
- AC input voltage: 100 - 220 V
- AC input frequency: 50/60 Hz
- Power consumption (typical): 27.5 W
- Power plug type: Type C
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) ports quantity: 24
- Total Power over Ethernet (PoE) budget: 195 W
Other features
- Packaging content: Switch, power cable, USB Type C cable and mounting hardware
Operational conditions
- Operating temperature (T-T): -5 - 50 °C
- Storage temperature (T-T): -25 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 10 - 90%
- Heat dissipation: 795.2 BTU/h
Weight & dimensions
- Width: 298.7 mm
- Depth: 444.5 mm
- Height: 43.9 mm
- Weight: 3.53 kg
Packaging data
- Package width: 430 mm
- Package depth: 575.1 mm
- Package height: 105.9 mm
- Package weight: 5.77 kg
Certificates
- Certification: UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Logistics data
- Country of origin: China
