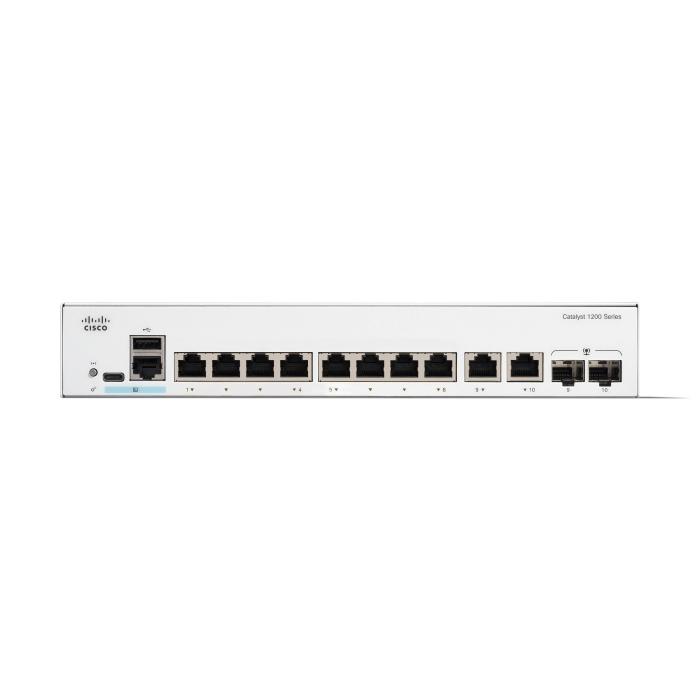

Cisco Catalyst 1200-8T-E-2G Smart Switch, 8 Port GE, Ext PS, 2x1GE Combo, Limited Lifetime Protection (C1200-8T-E-2G)

$152.35
$152.35 without VAT

More info

Brand: CISCO
SKU: 105648 PRC: 521640 EAN: 889728521819 PN: c1200-8t-e-2g

Description

Specifications

Management features

  • Switch type: Managed
  • Switch layer: L2
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • Configuring Location Settings (CLI): Yes
  • MIB support: Yes

Ports & interfaces

  • Basic switching RJ-45 Ethernet ports quantity: 10
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • SFP module slots quantity: 2
  • Console port: RJ-45/USB Type-C

Network

  • Head-of-line (HOL) blocking: Yes
  • VLAN support: Yes
  • Number of VLANs: 255
  • Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3az
  • 10G support: No
  • Port mirroring: Yes
  • Link aggregation: Yes
  • Broadcast storm control: Yes
  • Spanning tree protocol: Yes

Data transmission

  • Switching capacity: 20 Gbit/s
  • Forwarding rate: 14.88 Mpps
  • MAC address table: 8000 entries
  • Number of queues: 8
  • Jumbo frames support: Yes
  • Jumbo frames: 9000
  • Packet buffer memory: 1.5 MB

Security

  • Access Control List (ACL) rules: 512
  • Security algorithms: 802.1x RADIUS
  • Loop protection: Yes
  • DoS attack prevention: Yes
  • Queue scheduling algorithms: Weighted Round Robin (WRR)

Multicast features

  • Multicast support: Yes

Protocols

  • GARP VLAN Registration Protocol (GVRP): Yes

Design

  • Rack mounting: Yes
  • Form factor: 1U
  • Product colour: White
  • Reset button: Yes
  • LED indicators: Yes

Performance

  • Built-in processor: Yes
  • Processor frequency: 1.4 MHz
  • Memory type: DDR4-SDRAM
  • Internal memory: 1000 MB
  • Flash memory: 512 MB
  • Firmware upgradeable: Yes
  • Mean time between failures (MTBF): 2171669 h

Power

  • Power source: AC
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50/60 Hz
  • Power consumption (typical): 10.65 W
  • Power plug type: Type C

Power over Ethernet (PoE)

  • Power over Ethernet (PoE): No

Other features

  • Packaging content: Switch, power cable, USB Type C cable and mounting hardware

Operational conditions

  • Operating temperature (T-T): -5 - 50 °C
  • Storage temperature (T-T): -25 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 10 - 90%

Weight & dimensions

  • Width: 184.9 mm
  • Depth: 268.2 mm
  • Height: 43.9 mm
  • Weight: 1.39 kg

Packaging data

  • Package width: 299 mm
  • Package depth: 544.8 mm
  • Package height: 103.9 mm
  • Package weight: 2.45 kg

Certificates

  • Certification: UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A

Logistics data

  • Country of origin: China
