Description

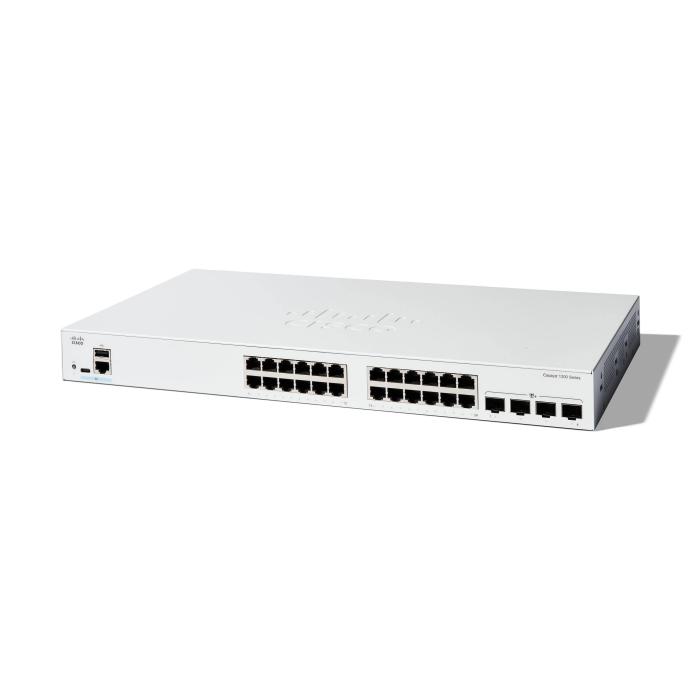

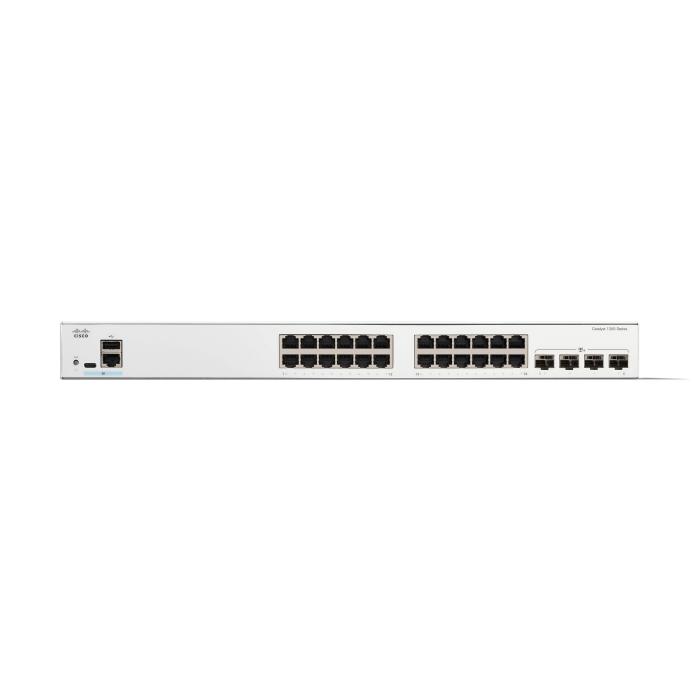

The Cisco C1200-24T-4X managed switch, in a white finish, offers 24 Gigabit Ethernet RJ-45 ports and 4 SFP+ modules for high-speed links in office or small campus networks. With L2/L3 layer, web-based management and command-line interface (CLI) support, it allows you to configure VLANs, quality of service (QoS), flow control and port mirroring for optimised and secure traffic. It includes ARP inspection, head-of-line blocking and support for jumbo frames of 9000 bytes, as well as storm control and spanning tree protocol. This Cisco-branded device supports MIB and remote monitoring, designed for detailed, hassle-free network control.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2/L3
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- ARP inspection: Yes
- Configuring Location Settings (CLI): Yes
- MIB support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Installed SFP+ modules quantity: 4
Network
- Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.
- Port mirroring: Yes
- Flow control support: Yes
- Broadcast storm control: Yes
- Spanning tree protocol: Yes
- Head-of-line (HOL) blocking: Yes
- Ethernet LAN data rates: 1000 Mbit/s
- VLAN support: Yes
Data transmission
- Static route: Yes
- Jumbo frames support: Yes
- Jumbo frames: 9000
Security
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- Security algorithms: HTTPS, SSH, SSL/TLS
- MAC address filtering: Yes
- SSH/SSL support: Yes
Multicast features
- Multicast support: Yes
Design
- Product colour: White
- Housing material: Metal
- Reset button: Yes
- LED indicators: Yes
Performance
- Processor frequency: 1400 MHz
- Internal memory: 1024 MB
- Flash memory: 512 MB
Power
- Power source: AC
- Power supply included: Yes
- Power plug type: Type C
Other features
- Packaging content: Switch, power cable, USB Type C cable and mounting hardware
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -25 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 10 - 90%
Weight & dimensions
- Width: 240 mm
- Depth: 444.5 mm
- Height: 43.9 mm
Packaging data
- Package width: 419.1 mm
- Package depth: 575.1 mm
- Package height: 108 mm
- Package weight: 5.22 kg
Logistics data
- Country of origin: China
