Description

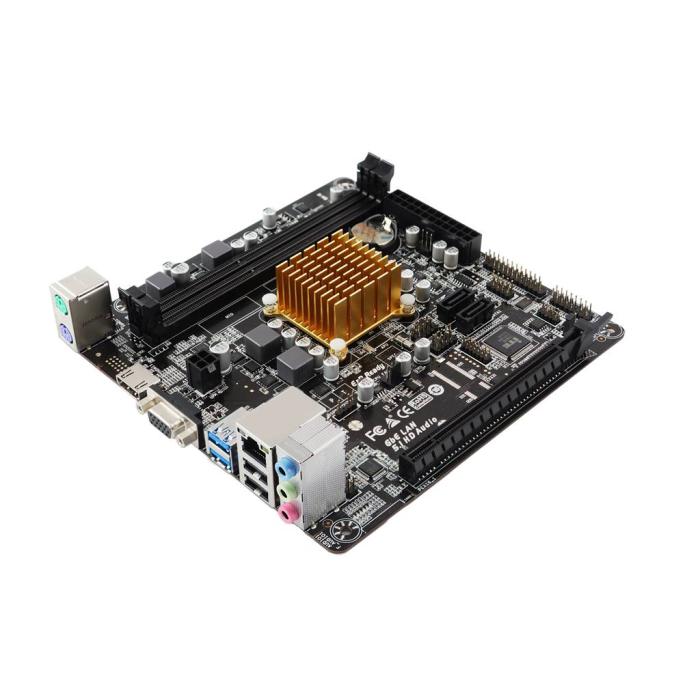

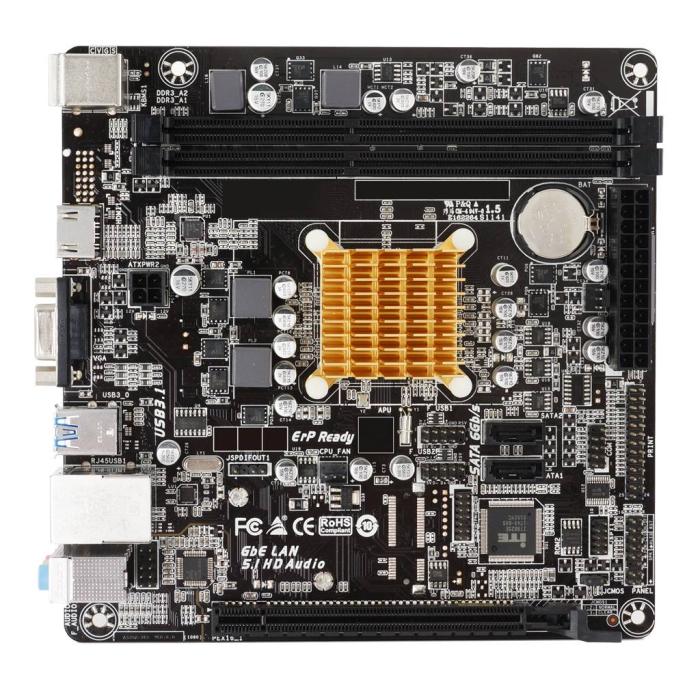

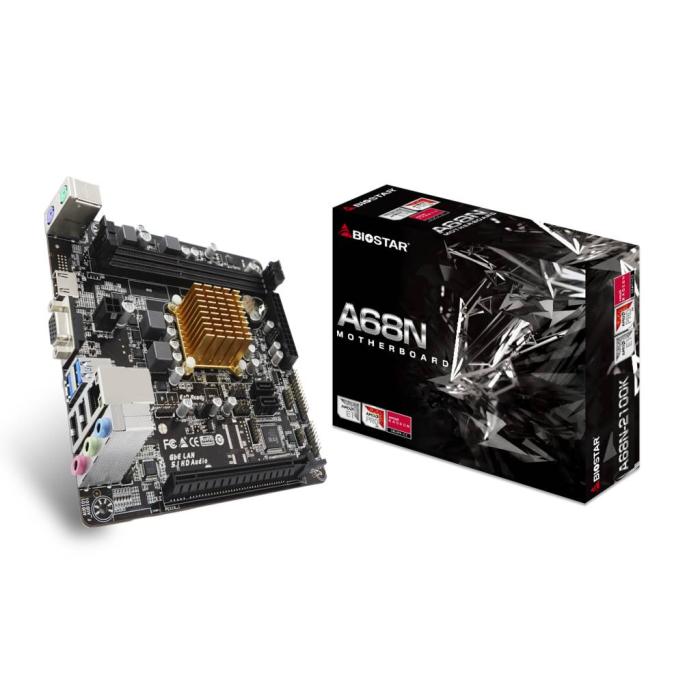

Mini ITX motherboard BIOSTAR A68N-2100K with integrated AMD E1-6010 dual-core processor, designed for compact builds. Supports up to 16 GB of DDR3 or DDR3L memory in two DIMM slots, with speeds of 800, 1066 and 1333 MHz and a voltage of 1.25 V. Includes two slots for modules from 512 MB to 8 GB, No-ECC compatibility and storage via SATA III; it also features an S/PDIF output, front audio connector and front panel header, as well as HDCP. This board provides a simple foundation for office or basic multimedia systems, without support for parallel processing and with a single SMP processor.
Specifications
Processor
- Processor manufacturer: AMD
- Maximum number of SMP processors: 1
- Processor model: E1-6010
- Processor cores: 2
Memory
- Supported memory types: DDR3-SDRAM, DDR3L-SDRAM
- Number of memory slots: 2
- Memory slots type: DIMM
- Memory voltage: 1.25 V
- ECC сompatibility: Non-ECC
- Supported memory clock speeds: 800, 1066, 1333 MHz
- Maximum internal memory: 16 GB
- Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 512MB
Storage controllers
- Supported storage drive interfaces: SATA III
Graphics
- Parallel processing technology support: Not supported
- HDCP: Yes
Internal I/O
- USB 2.0 connectors: 2
- Number of SATA III connectors: 2
- S/PDIF out connector: Yes
- Front panel audio connector: Yes
- Front panel connector: Yes
- CPU fan connector: Yes
- Number of chassis fan connectors: 1
- Number of COM connectors: 1
- TPM connector: Yes

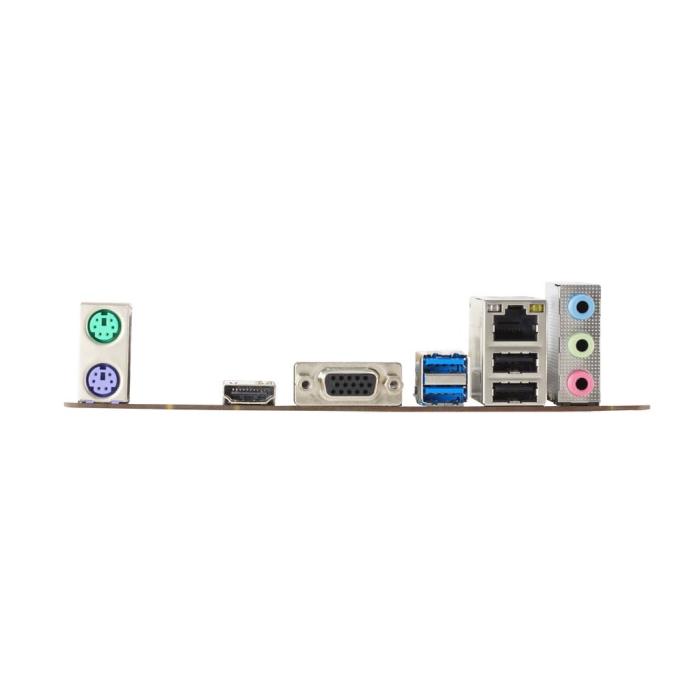

Rear panel I/O ports
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- Ethernet LAN (RJ-45) ports: 1
- PS/2 ports quantity: 2
- VGA (D-Sub) ports quantity: 1
- HDMI ports quantity: 1
Network
- Ethernet LAN: Yes
- Ethernet interface type: Gigabit Ethernet
- LAN controller: Realtek RTL8111H
- Wi-Fi: No
Features
- Audio chip: Realtek ALC887
- Audio output channels: 7.1 channels
- PC health monitoring: CPU, Fan, Temperature
- Component for: PC
- Motherboard form factor: mini ITX
- Motherboard chipset family: AMD
- Windows operating systems supported: Windows 10, Windows 7, Windows 8.1
Expansion slots
- PCI Express x16 (Gen 2.x) slots: 1
BIOS
- Clear CMOS jumper: Yes
Logistics data
- Harmonized System (HS) code: 84733020
Weight & dimensions
- Width: 170 mm
- Depth: 170 mm
Packaging content
- Cables included: SATA
- Drivers included: Yes
- Bundled software: BullGuard Smart Speed LAN
