Description

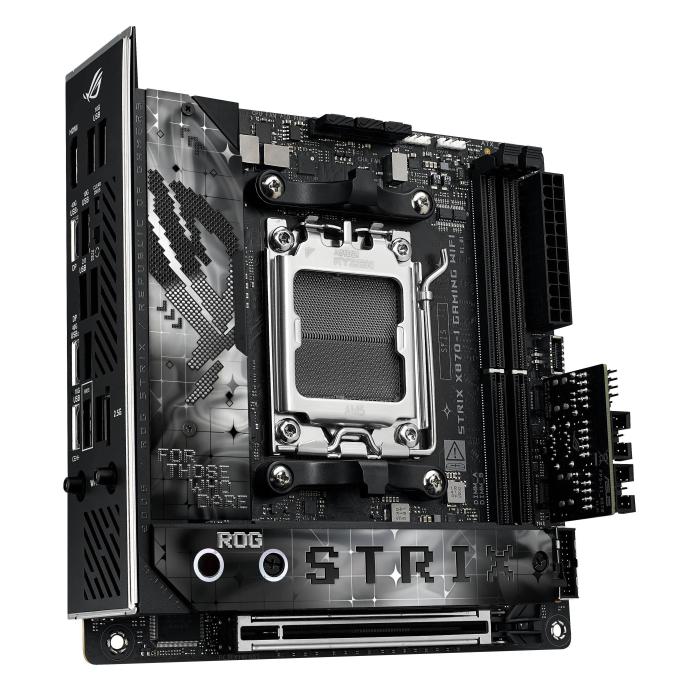

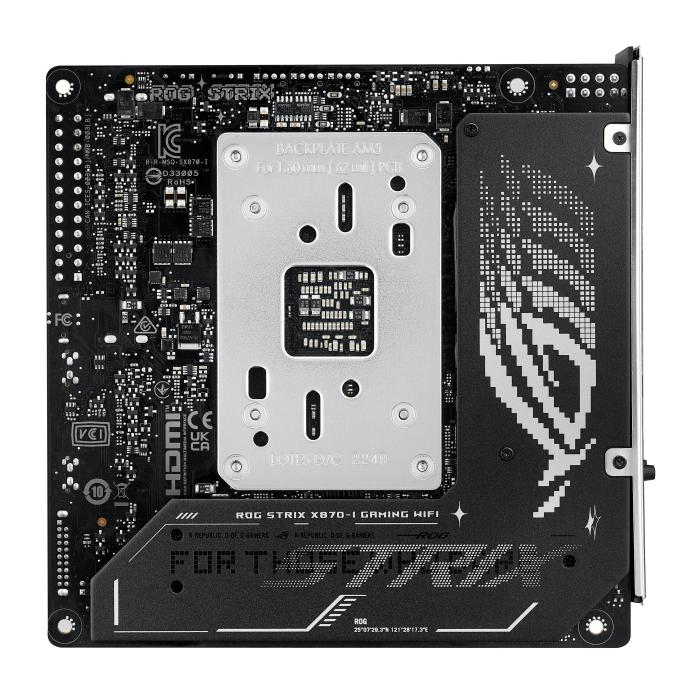

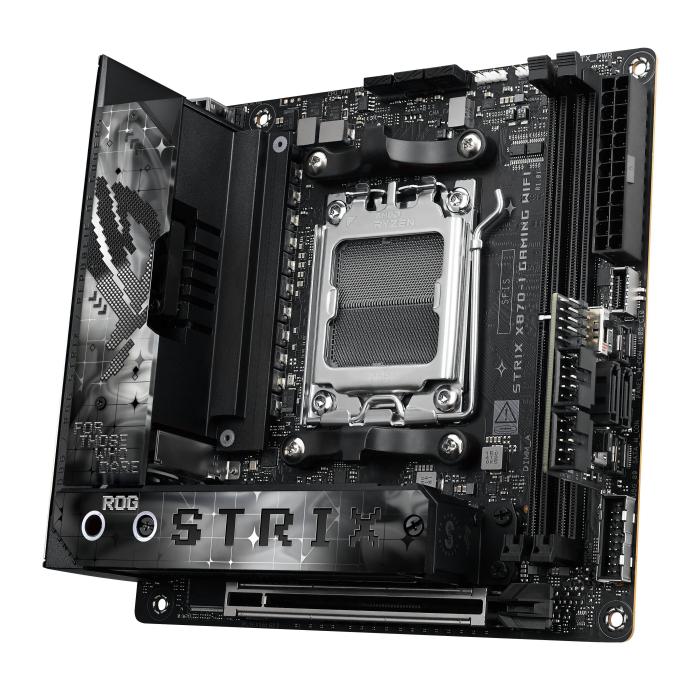

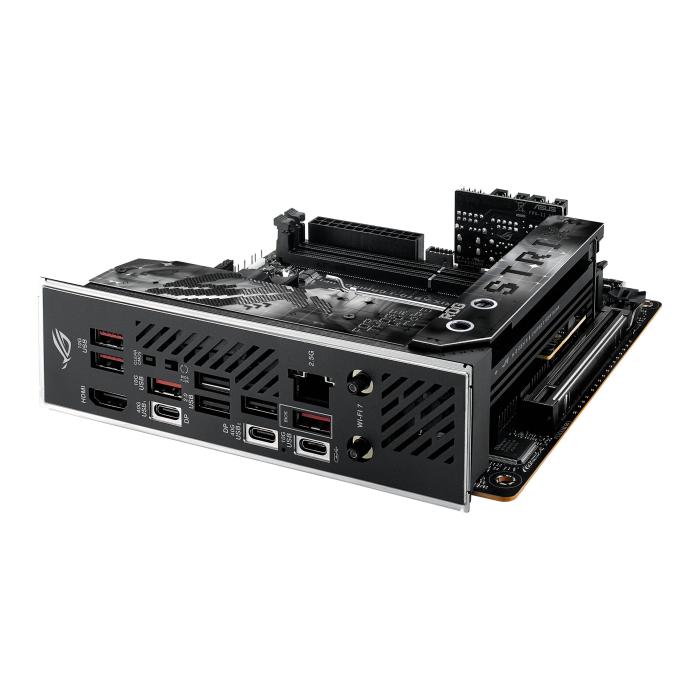

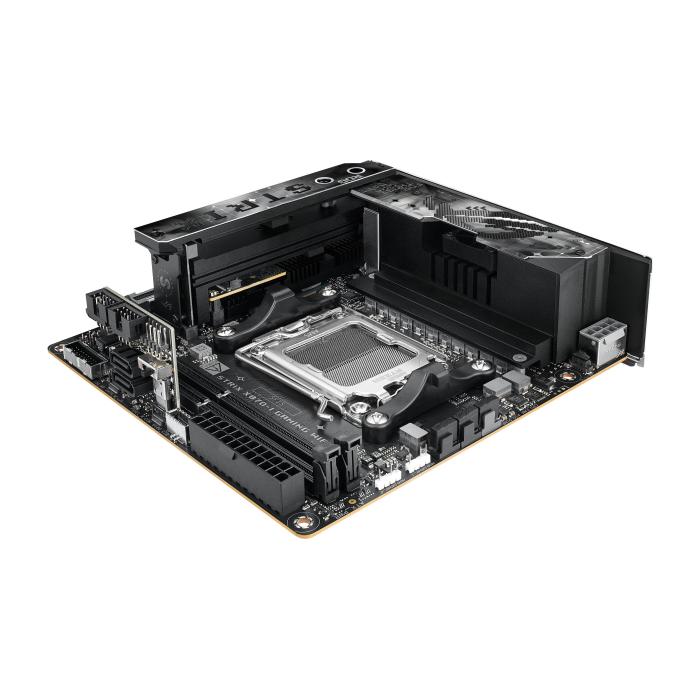

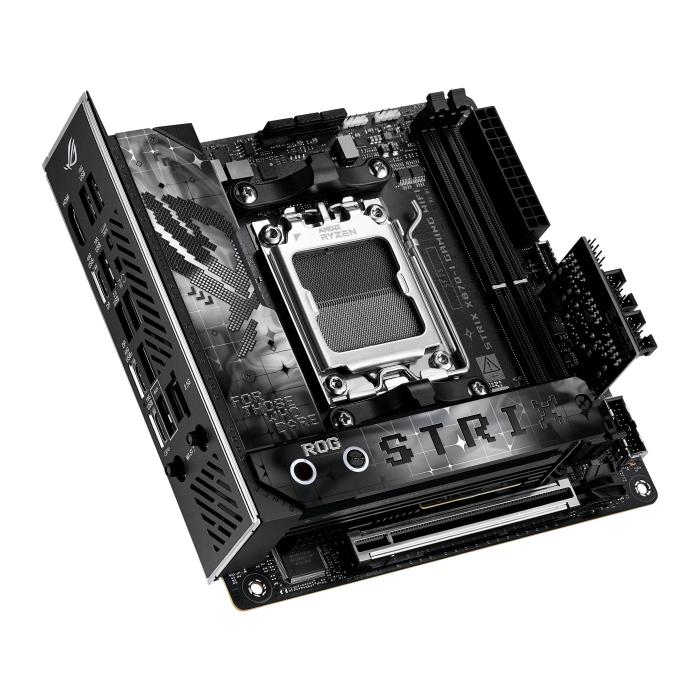

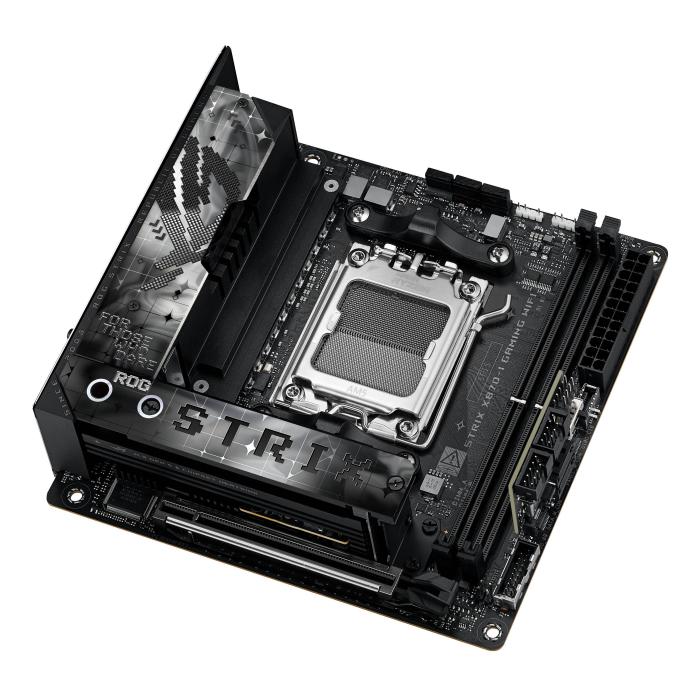

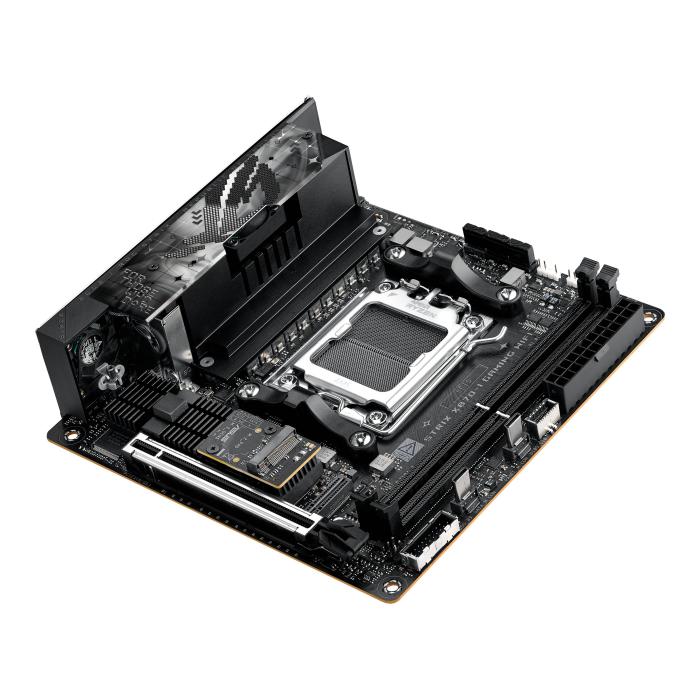

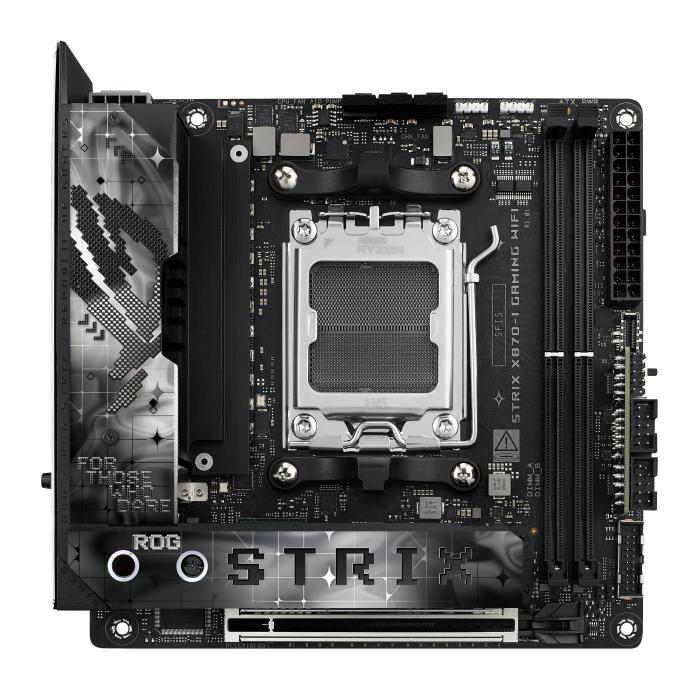

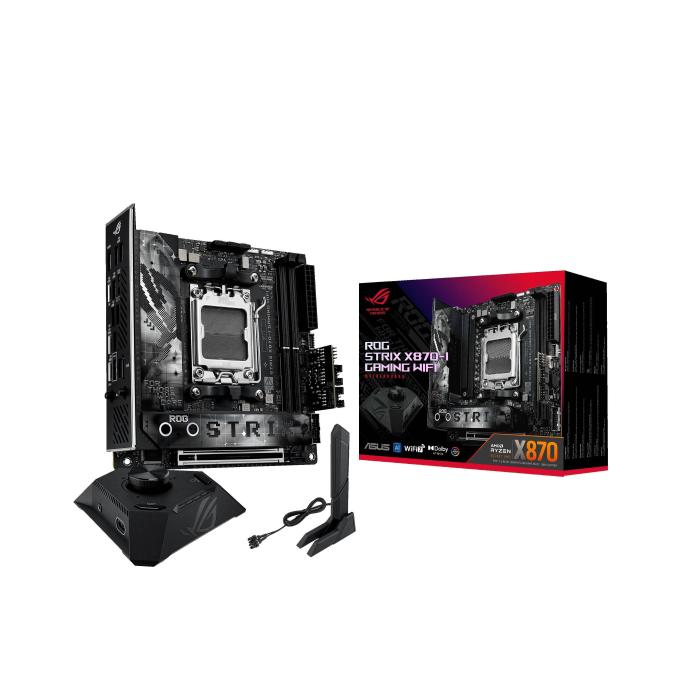

ASUS ROG STRIX X870-I GAMING WIFI motherboard in mini ITX format, prepared for AMD Ryzen 7000, 8000, and 9000 series processors with AM5 socket. It features two DIMM slots for DDR5-SDRAM memory, support for up to 96 GB in dual channel, and compatibility with ECC and non-ECC profiles, reaching a maximum speed of 8600 MHz. For storage, it supports up to four drives between HDD and SSD via M.2 and SATA III interfaces, with support for RAID configurations at levels 0, 1, and 10. This board integrates Wi-Fi connectivity and offers a compact design intended for mini ITX builds without compromising on the features of the ROG Strix series.
Specifications
Processor
- Processor manufacturer: AMD
- Processor socket: Socket AM5
- Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Memory
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 2
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: ECC & Non-ECC
- Supported memory clock speed (max): 8600 MHz
- Maximum internal memory: 96 GB
- Unbuffered memory: Yes
Storage controllers
- RAID support: Yes
- RAID levels: 0, 1, 10
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- Number of HDDs supported: 2
- Number of storage drives supported: 4
Graphics
- Parallel processing technology support: Not supported
- On-board graphics card: No

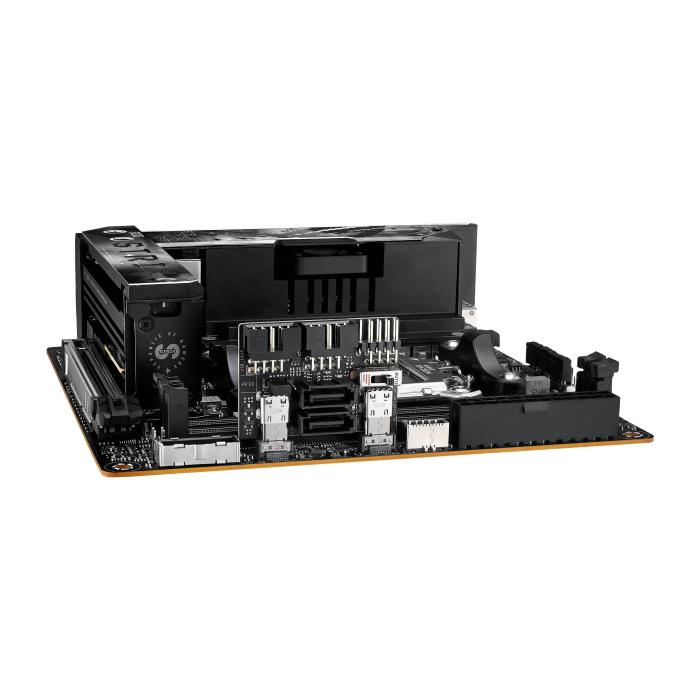

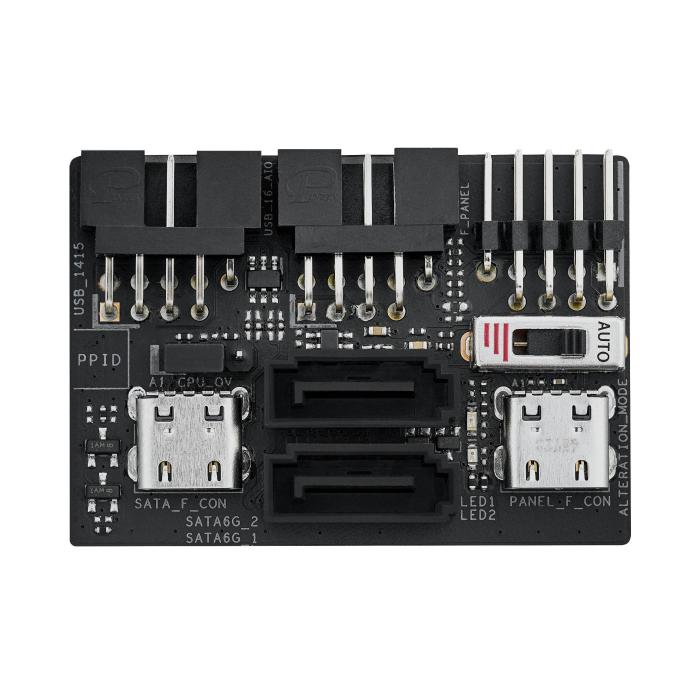

Internal I/O
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
- Number of SATA III connectors: 2
- Front panel connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of chassis fan connectors: 1
- EPS power connector (8-pin): Yes
- 12V power connector: Yes

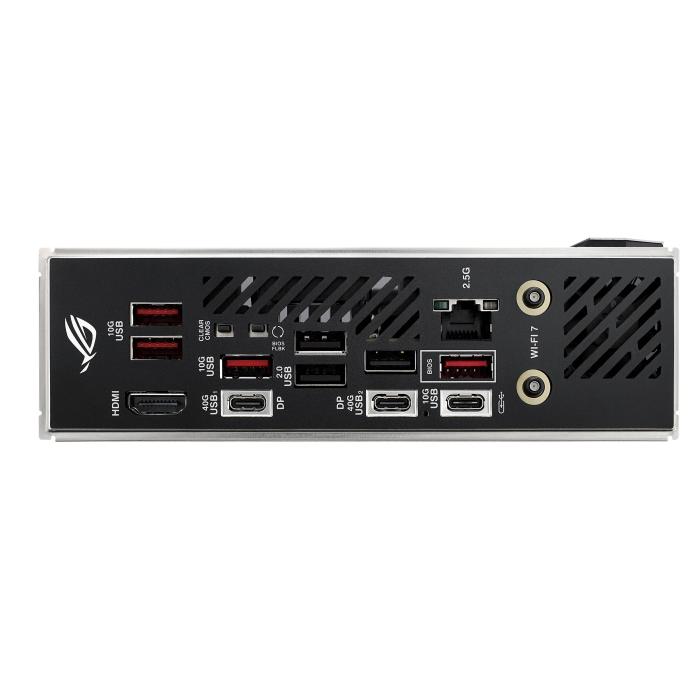

Rear panel I/O ports
- USB 2.0 ports quantity: 3
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
- USB4 Gen 3x2 ports quantity: 2
- Ethernet LAN (RJ-45) ports: 1
- HDMI ports quantity: 1
- USB connector type: USB Type-A, USB Type-C
Network
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
- Wi-Fi: Yes
- Top Wi-Fi standard: Wi-Fi 7 (802.11be)
- Wi-Fi standards: Wi-Fi 7 (802.11be)
- Bluetooth: Yes
- Bluetooth version: 5.4
Features
- Motherboard chipset: AMD X870
- Product colour: Black
- Component for: PC
- Motherboard form factor: mini ITX
- Motherboard chipset family: AMD
- Windows operating systems supported: Windows 11 x64
Expansion slots
- PCI Express x16 (Gen 5.x) slots: 1
- Number of M.2 (M) slots: 2
BIOS
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- Clear CMOS button: Yes
Weight & dimensions
- Width: 170 mm
- Depth: 170 mm
