be quiet! Straight Power 11 1000W 1000W ATX Black power supply unit

Few units

Product 1 image

Product 2 image

Product 3 image

Product 4 image

Product 5 image

Product 6 image

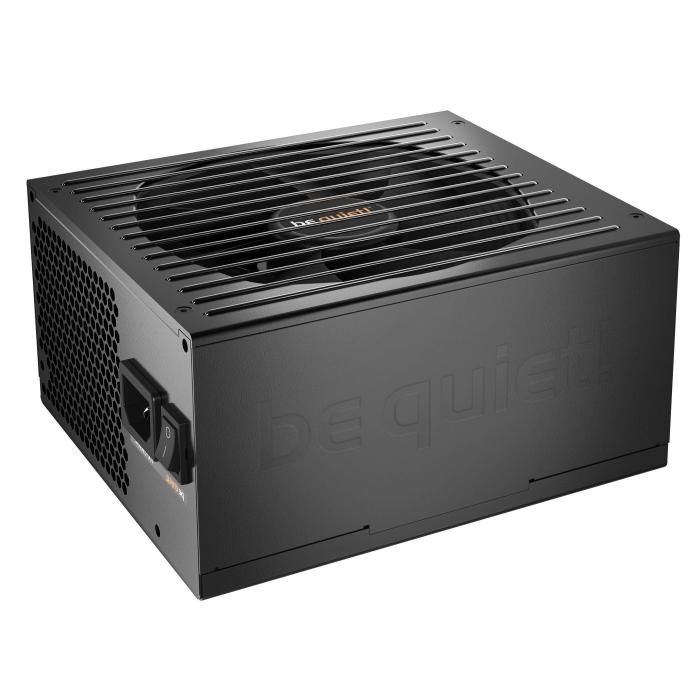

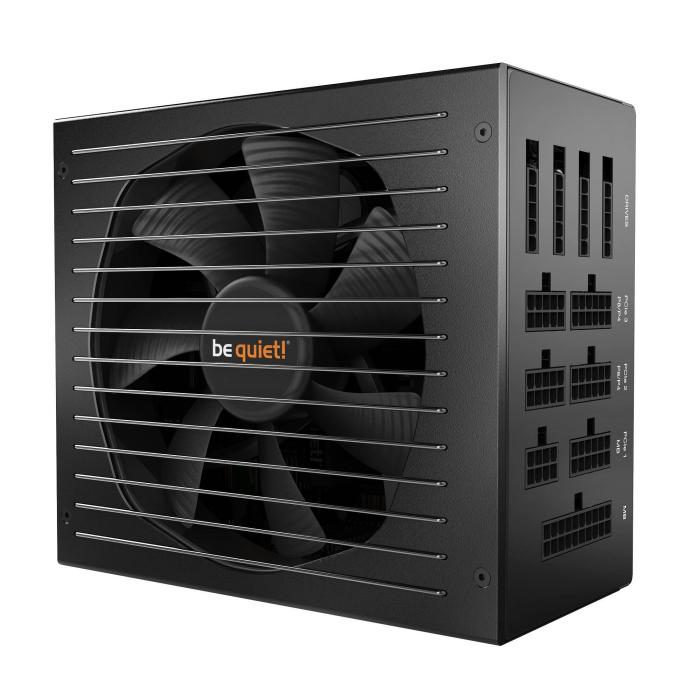

be quiet! Straight Power 11 1000W 1000W ATX Black power supply unit

276.00 €

228.10 € without VAT

be quiet! Straight Power 11 1000W, 1000 W, 100 - 240, 1070 W, 50 - 60, Active, 150 W. More info

Amount

Brand: BE QUIET!

SKU: 79997 PRC: 195956 EAN: 4260052185803 PN: BN285

Description

Straight Power 11, 1000 W, ATX 12V 2.4, EPS 12V 2.92, 100 - 240 V, 50/60 Hz, active PFC, SilentWings 3 135mm, ATX 20+4-pin, 6x PCIe 6+2-pin, 11x SATA, 4x PATA, FDD, Black

Specifications

Power

Total power: 1000 W
Peak power: 1070 W
AC input voltage: 100 - 240
AC input frequency: 50 - 60
Input current: 13
Power factor: 0.99
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 150 W
Combined power (+12V): 999.6 W
Combined power (+5V): 150 W
Combined power (-12V): 6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 25 A
Max output current (+12V1): 22 A
Max output current (+12V2): 22 A
Max output current (+12V3): 30 A
Max output current (+12V4): 30 A
Max output current (+5V): 25 A
Max output current (-12V): 0.5 A
Max output current (+5Vsb): 3 A
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Hold time: 19.8 ms
Efficiency: 93%

Cooling

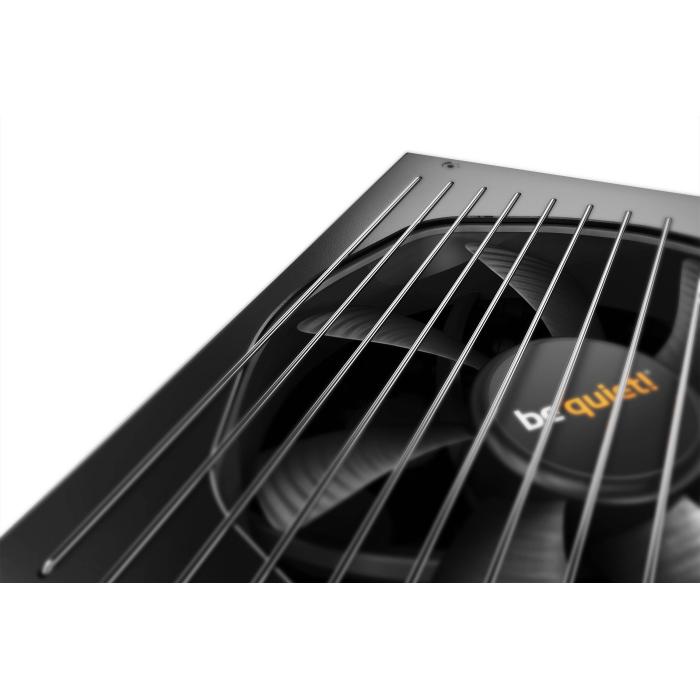

Fan diameter: 13.5 cm
Number of fans: 1 fan(s)

Ports & interfaces

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 60 cm
Number of PATA power connectors: 4
Number of SATA power connectors: 11
SATA power cable length: 550 mm
PCI Express power connectors (6+2 pin): 6
PCI Express power cable length: 60 cm
CPU power connector (4+4 pin): Yes
CPU power cable length: 70 cm
Floppy disk drive connector: Yes

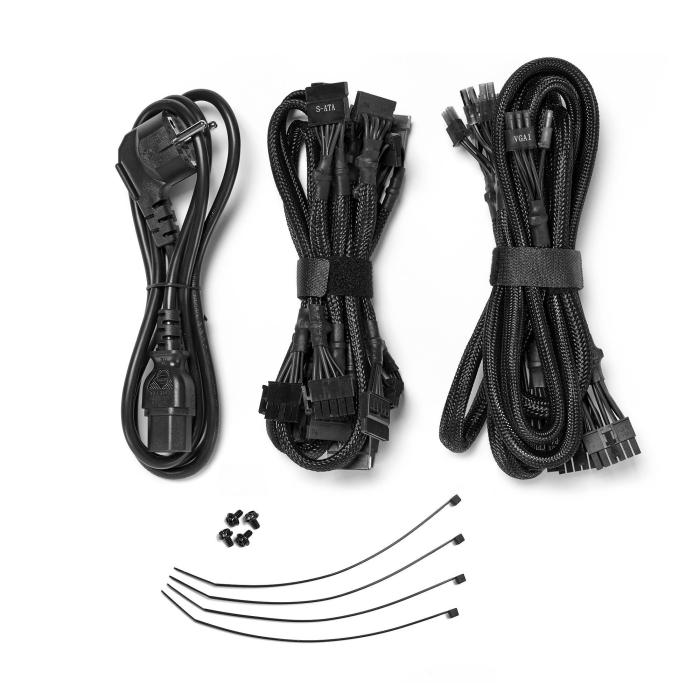

Cabling type: Modular

Performance

Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 2.4
EPS version: 2.92
Silent mode: Yes
Noise level (silent mode, <30%): 11.15 dB
Noise level (quiet mode, 50%): 11.8 dB
Noise level (full-load mode, 100%): 32.1 dB
Bearing technology: FDB
On/off switch: Yes

Design

Colour of product: Black
Illumination: No

Technical details

Cable management: Yes

Weight & dimensions

Width: 150 mm
Depth: 170 mm
Height: 86 mm
Weight: 1.85 kg

Certificates

80 PLUS certification: 80 PLUS Gold
Energy Star certified: Yes
RoHS compliance: Yes
Certification: CE, FCC, TÜV, cTUVus, RCM, BSMI, CU

Packaging data

Package width: 248 mm
Package depth: 328 mm
Package height: 102 mm
Package weight: 3.57 kg

Packaging content

Cable ties included: Yes
Screws included: Yes
Manual: Yes
