Description

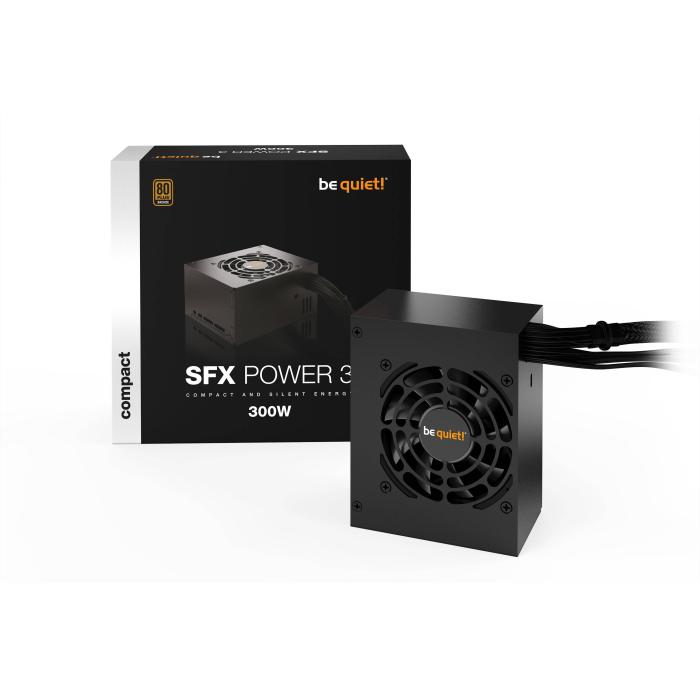

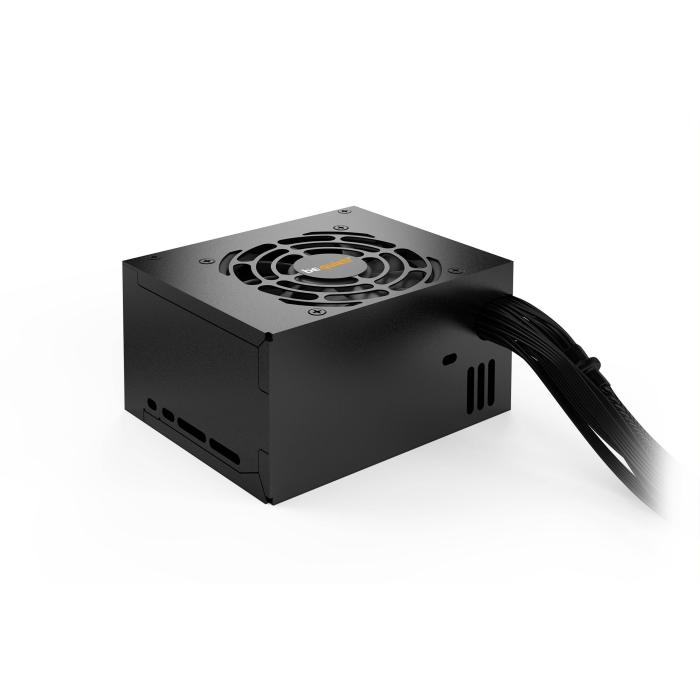

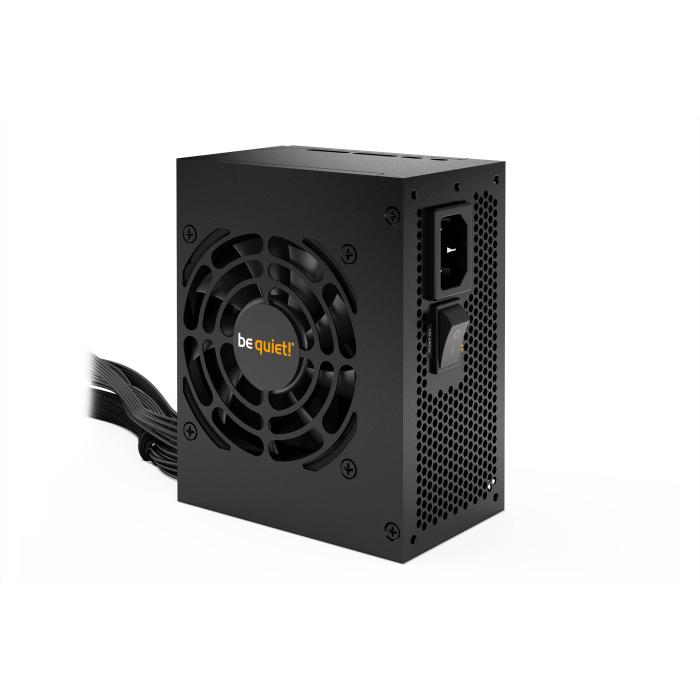

be quiet! SFX POWER 3 300W, 300 W, 100 - 240 V, 350 W, 50/60 Hz, 5/2 A, 5 A
Specifications
Power
- Total power: 300 W
- Peak power: 350 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Input current: 5/2 A
- Maximum input current (@110V): 5 A
- Maximum input current (@220V): 2 A
- Power factor: 0.98
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 85 W
- Combined power (+12V): 300 W
- Combined power (+5V): 85 W
- Max output current (+3.3V): 16 A
- Max output current (+12V1): 25 A
- Max output current (+5V): 16 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 2.5 A
- Hold time: 26.8 ms
- Efficiency: 88.1%
- Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 35 cm
- Number of SATA power connectors: 3
- SATA power cable length: 300,450,600 mm
- Peripheral (Molex) power connectors (4-pin): 2
- Peripheral (Molex) power cable length: 300,450 mm
- PCI Express power connectors (6+2 pin): 1
- PCI Express power cable length: 40 cm
- CPU P4 connector (4-pin): 1
- CPU power cable length: 40 cm
- Floppy drive power connector: 1
- Floppy disk drive cable length: 60 cm
- Cabling type: Non-Modular
Performance
- 80 PLUS certification: 80 PLUS Bronze
- Purpose: PC
- Power supply unit (PSU) form factor: SFX
- ATX version: 3.42
- EPS version: 2.92

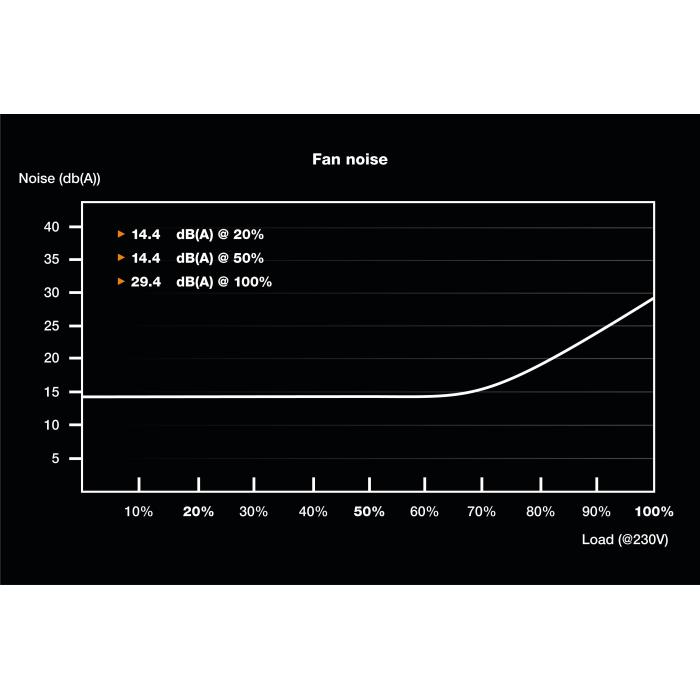

- Noise level: 29.4 dB
- Bearing technology: Rifle
- Mean time between failures (MTBF): 100000 h
- Safety: CE, CB, TÜV, CU
Design
- Product colour: Black
- Cooling type: Active
- Fan diameter: 8 cm
- Number of fans: 1 fan(s)
- On/off switch: Yes
Weight & dimensions
- Width: 125 mm
- Depth: 100 mm
- Height: 64 mm
- Weight: 840 g
Packaging data
- Package width: 197 mm
- Package depth: 75 mm
- Package height: 207 mm
- Package weight: 1.19 kg
- Package type: Box
Technical details
- Sustainability compliance: Yes
- Sustainability certificates: ENERGY STAR, ErP, RoHS, WEEE
Logistics data
- Shipping (inner) case length: 45.7 cm
- Shipping (inner) case width: 26.5 cm
- Shipping (inner) case height: 23.3 cm
- Shipping (inner) case gross weight: 7.91 kg
- Quantity per shipping (inner) case: 6 pc(s)
