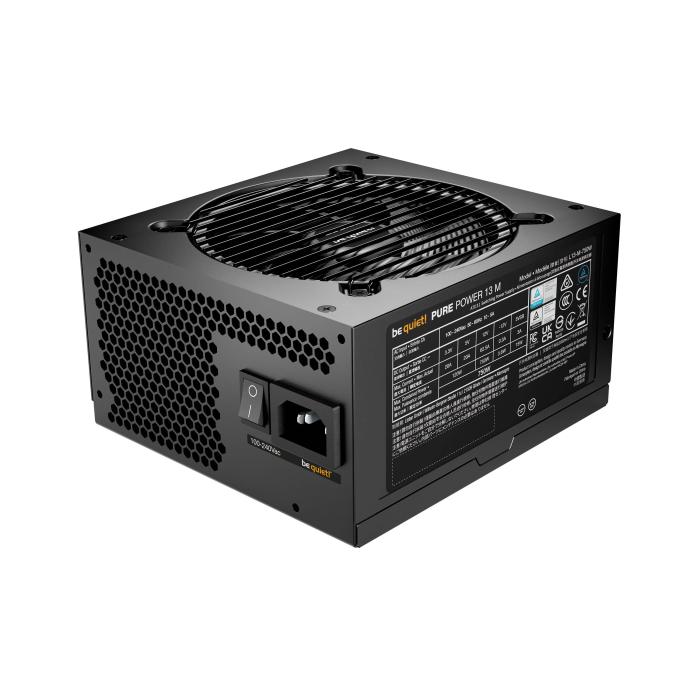

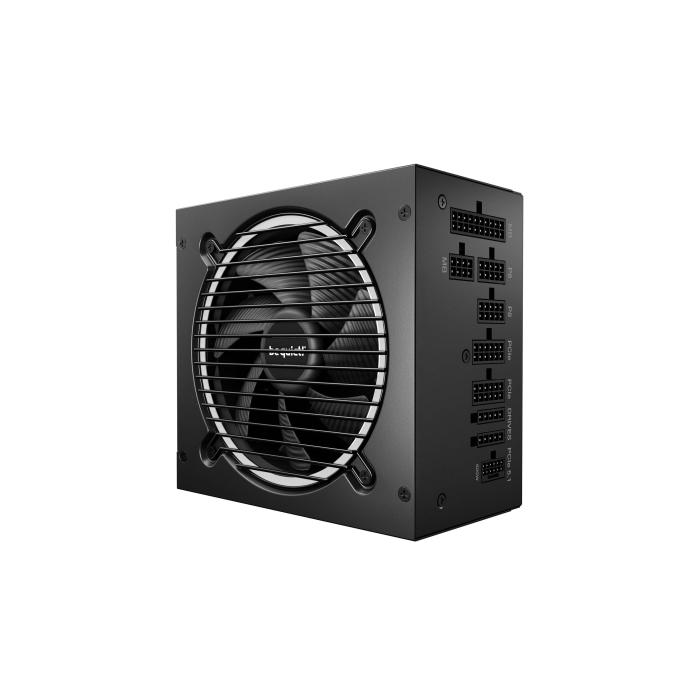

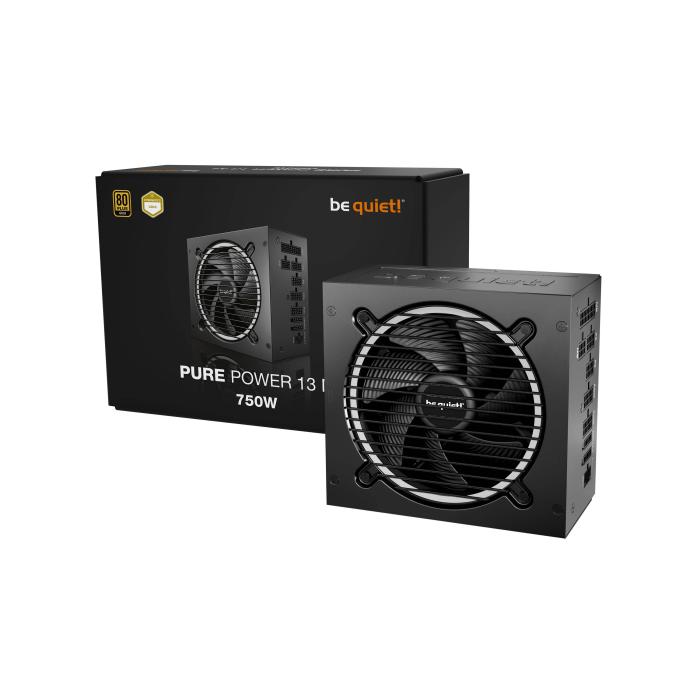

Name: be quiet! Pure Power 13 M | 750W power supply unit 20+4 pin ATX ATX Black
Brand: BE QUIET!
Price: 132 EUR
Availability: InStock

be quiet! Pure Power 13 M | 750W power supply unit 20+4 pin ATX ATX Black

132.00 €

109.09 € without VAT

Amount

Brand: BE QUIET!

SKU: 112646 PRC: 606682 EAN: 4260052192184 PN: BP026EU

Description

Specifications

Power

Total power: 750 W
Peak power: 820 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Maximum input current (@110V): 10 A
Maximum input current (@220V): 5 A
Power factor: 0.98
Power Factor Correction (PFC) type: Active
Number of +12V rail(s): 1
Combined power (+3.3V): 120 W
Combined power (+12V): 750 W
Combined power (+5V): 120 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V1): 62.5 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Hold time: 28.62 ms
Efficiency: 92.6%
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage

Ports & interfaces

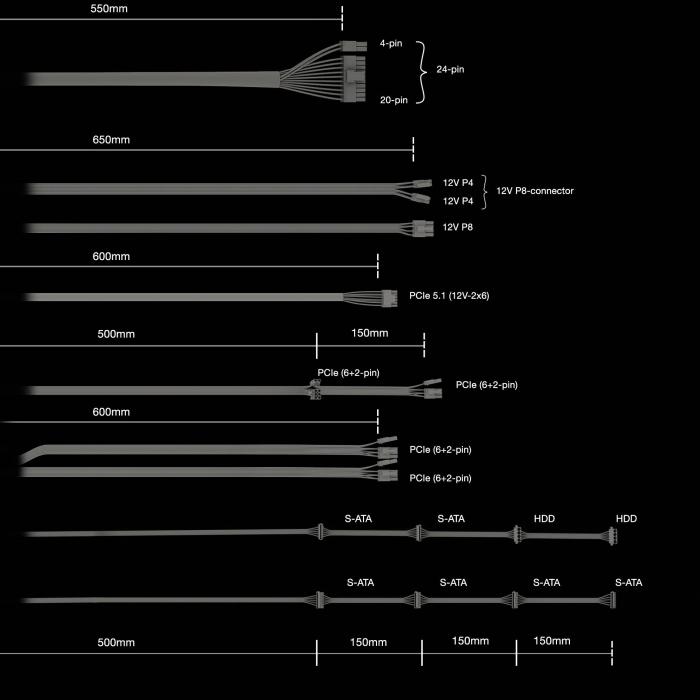

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 55 cm
Number of SATA power connectors: 6
SATA power cable length: 500, 650, 800, 950 mm
Peripheral (Molex) power connectors (4-pin): 2
Peripheral (Molex) power cable length: 800, 950 mm
EPS power connector (8-pin): Yes
PCI Express power connectors (6+2 pin): 4
PCI Express power connectors (12-pin): 1
CPU P4 connector (4-pin): 2
CPU power connector (4+4 pin): Yes
CPU power cable length: 65 cm
Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
EPS version: 2.92

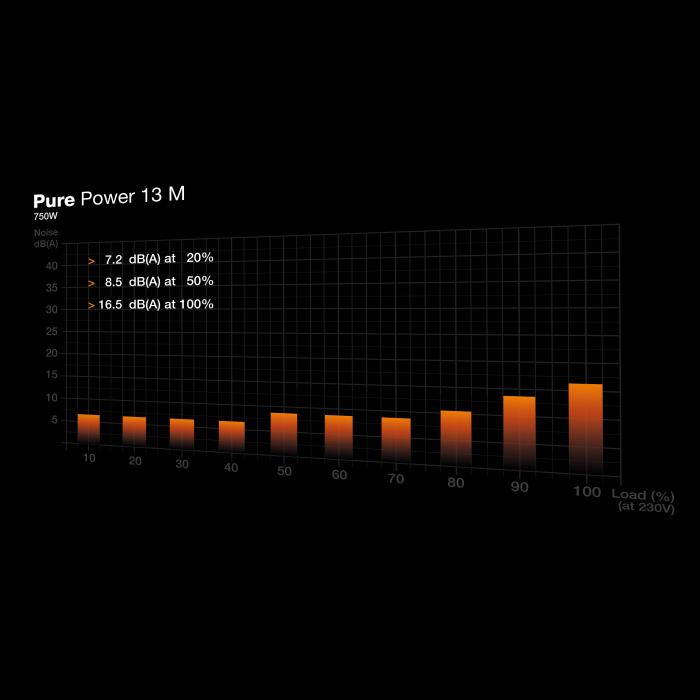

Noise level: 20.8 dB
Bearing technology: Rifle
Mean time between failures (MTBF): 100000 h

Design

Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Fan speed: 0 - 1800 RPM
On/off switch: Yes

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Packaging content

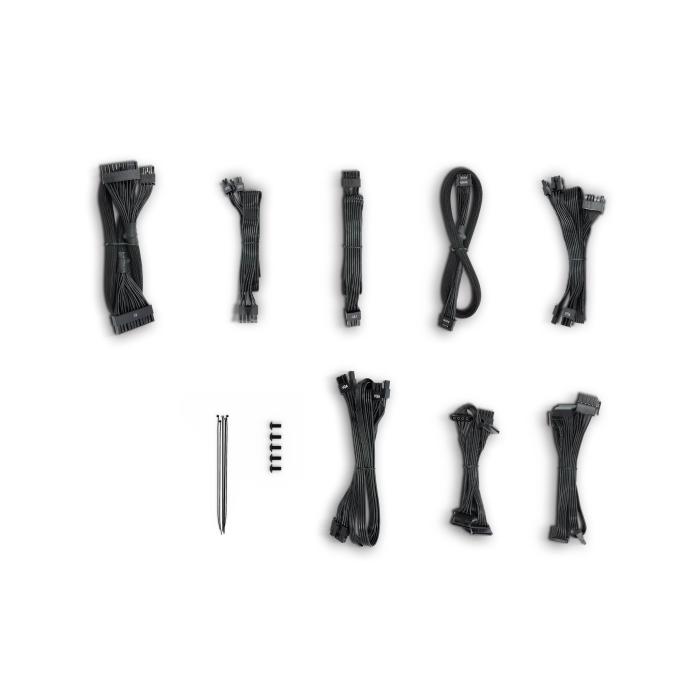

Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA

Certificates

Compliance certificates: BSMI, CB, CCC, CE, Federal Communications Commission (FCC), IRAM, RCM, RoHS, TÜV mark, UKCA, WEEE, cTUVus

Weight & dimensions

Width: 150 mm
Depth: 160 mm
Height: 86 mm
Weight: 2.46 kg

Packaging data

Package width: 210 mm
Package depth: 320 mm
Package height: 133 mm
Package weight: 3.2 kg

Technical details

Sustainability certificates: ENERGY STAR, ErP

Logistics data

Shipping (inner) case length: 58 cm
Shipping (inner) case width: 32.5 cm
Shipping (inner) case height: 23.3 cm
Products per shipping (inner) case: 6 pc(s)
Shipping (inner) case gross weight: 21.5 kg

Other features

Screws included: Yes
Cable ties included: Yes
