Description

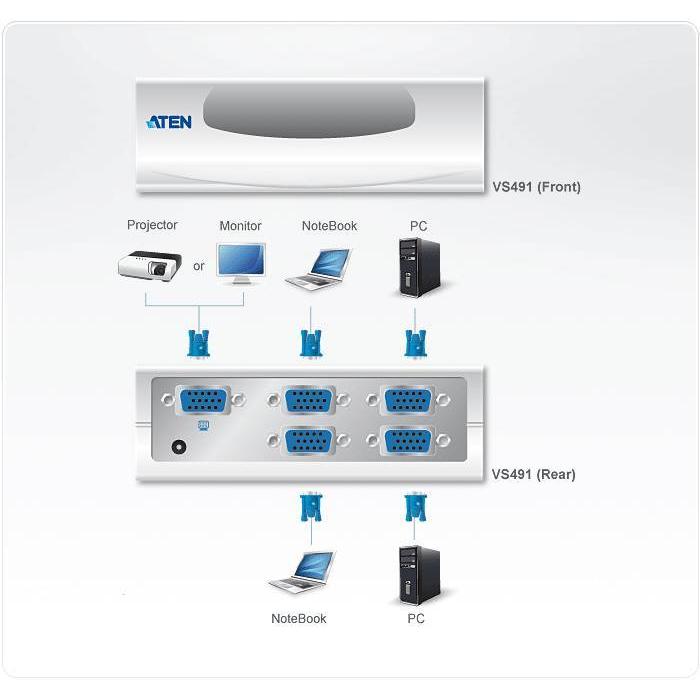

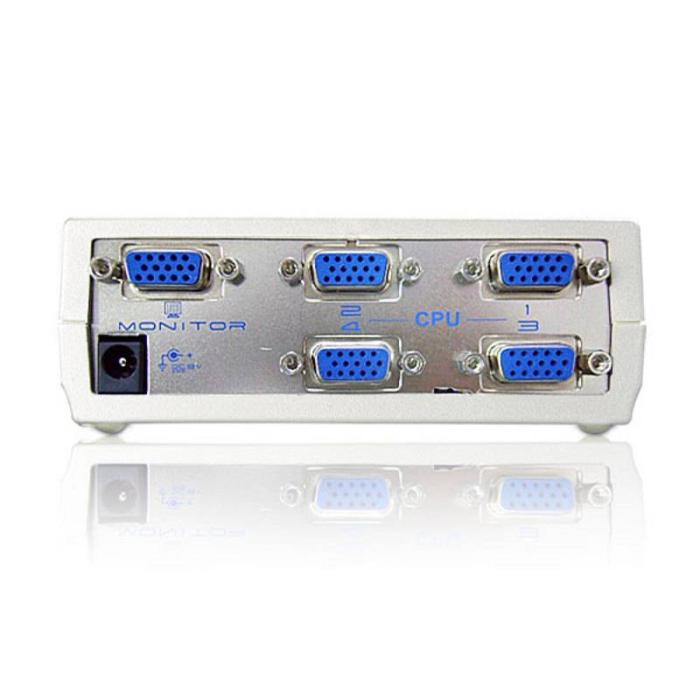

The ATEN VS491 is a VGA video switch that distributes one input signal to four outputs. It features one VGA input port and four VGA output ports, with HDB-15 female connectors, and offers a maximum resolution of 1920 x 1440 pixels with a bandwidth of 150 MHz. Its input and output impedance is 75 Ω, and it allows an operating distance of up to 10 m. It incorporates a DC power input jack and its power consumption is 1.35 W. The housing combines metal and plastic in silver, with a weight of 180 g and dimensions of 120 x 44 x 65.2 mm. It is designed for rack mounting with 1U capacity and a height of 44 mm.
Specifications
Ports & interfaces
- Video port type: VGA
- VGA (D-Sub) ports quantity: 5
- VGA (D-Sub) input ports: 1
- VGA (D-Sub) output ports: 4
- Video in: 4 x HDB-15 Female (Blue)
- Video out: 1 x HDB-15 Female (Blue)
- DC-in jack: Yes
Features
- Material: Metal, Plastic
- Product colour: Silver
- Maximum operating distance: 10 m
- Rack mounting: Yes
- Bandwidth: 150 MHz
- Maximum resolution: 1920 x 1440 pixels
- Rack capacity: 1U
- Input impedance: 75 Ω
- Output impedance: 75 Ω
Power
- Power consumption (typical): 1.35 W
Weight & dimensions
- Width: 120 mm
- Depth: 65.2 mm
- Height: 44 mm
- Weight: 180 g
Packaging content
- AC adapter included: Yes
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
Technical details
- Compliance certificates: RoHS
