Description

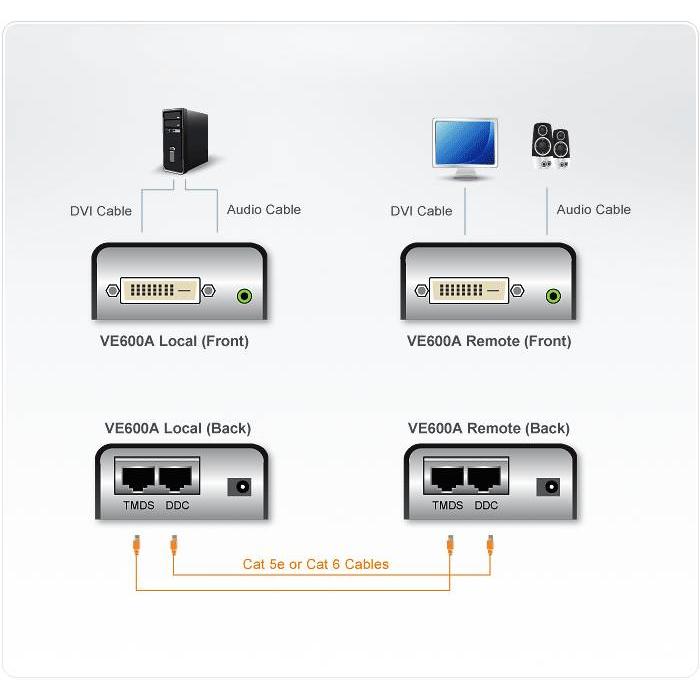

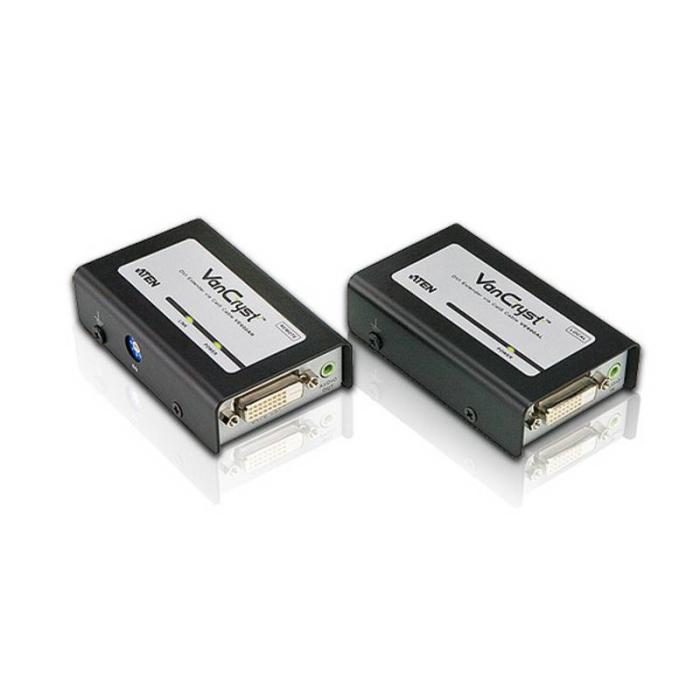

The ATEN DVI and audio over Cat 5 extender, in black, works as a transmitter and receiver of AV signals to carry video and sound from one device to another via network cabling. It uses Cat5e cables and supports resolutions of up to 1920 x 1200 pixels, with compatibility with 1080i and 1080p video modes. The connection is wired and the set offers DVI inputs and outputs, as well as RJ-45 ports and an audio output. It supports HDCP, so you can play protected content without problems between the source and the destination. Its 100 Ω impedance and 225 MHz bandwidth allow the signal to be carried stably along the installed run. The casing is metal, which provides robustness to the installation, and each unit weighs 490 g. It is supplied in a pack of 2 units, with the transmitter and receiver ready to deploy the installation.
Specifications
Features
- Type: AV transmitter & receiver
- Maximum resolution: 1920 x 1200 pixels
- Cable types supported: Cat5e
- Maximum transfer distance: 60 m
- Supported video modes: 1080i, 1080p
- Supported graphics resolutions: 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
- Bandwidth: 225 MHz
- HDCP: Yes
- Material: Metal
- Impedance: 100 Ω
- Product colour: Black
Ports & interfaces
- Connectivity technology: Wired
- Ethernet LAN: Yes
- RJ-45 input ports: 2
- RJ-45 output ports: 2
- DVI input ports: 2
- DVI output ports: 2
- Video in: 1 x DVI-D
- Video out: 1 x DVI-D
- Audio input: 1
- Audio output: 1
Power
- Power consumption (max): 2.05 W
- Power consumption (transmitter) (max): 1.56 W
- Power consumption (receiver) (max): 0.76 W
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
Weight & dimensions
- Weight: 490 g
- Receiver dimensions (WxDxH): 56 x 91.3 x 24 mm
- Receiver weight: 170 g
- Transmitter dimensions (WxDxH): 56 x 91.3 x 24 mm
- Transmitter weight: 170 g
Packaging data
- Quantity per pack: 2 pc(s)
- Package width: 59 mm
- Package depth: 239 mm
- Package height: 160 mm
- Package weight: 660 g
Packaging content
- AC adapter included: Yes
- Manual: Yes
- Grounding wire: Yes
- Mounting kit: Yes
Technical details
- Compliance certificates: RoHS
Logistics data
- Master (outer) case width: 315 mm
- Master (outer) case length: 490 mm
- Master (outer) case height: 338 mm
- Master (outer) case gross weight: 14 kg
- Master (outer) case net weight: 9.8 kg
- Products per master (outer) case: 20 pc(s)
