Description

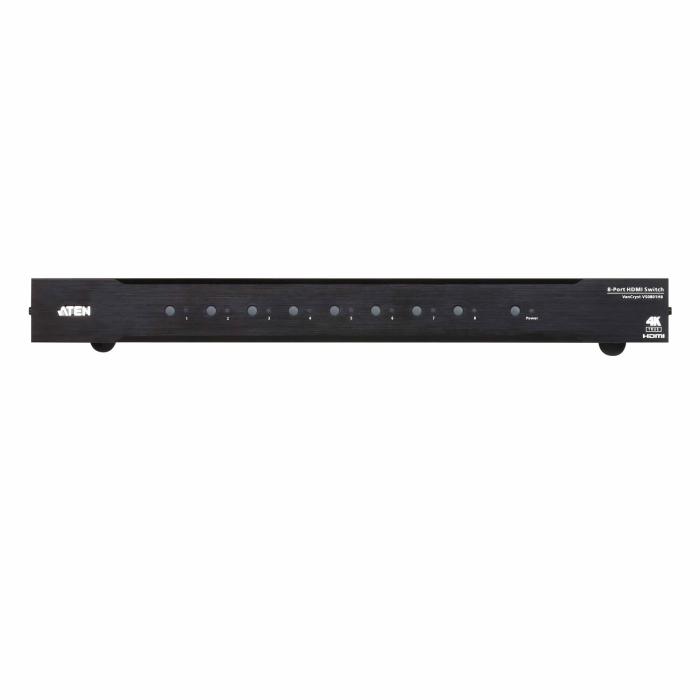

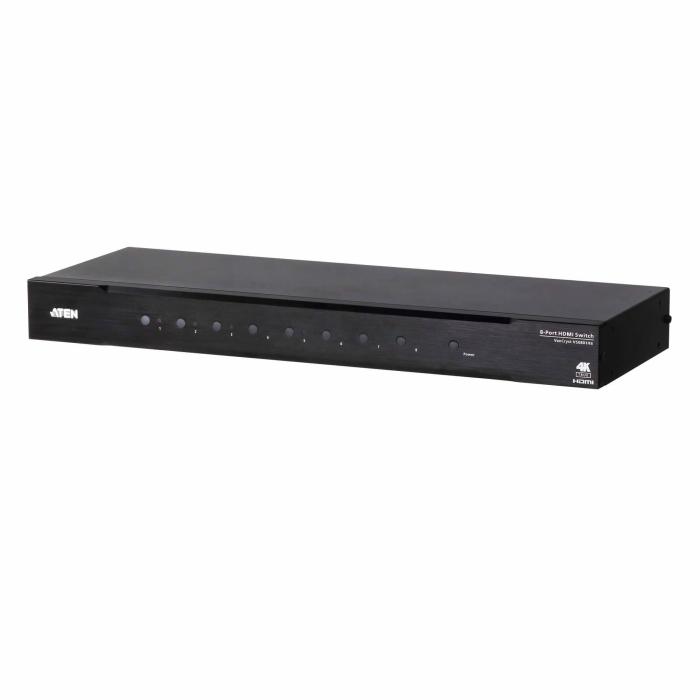

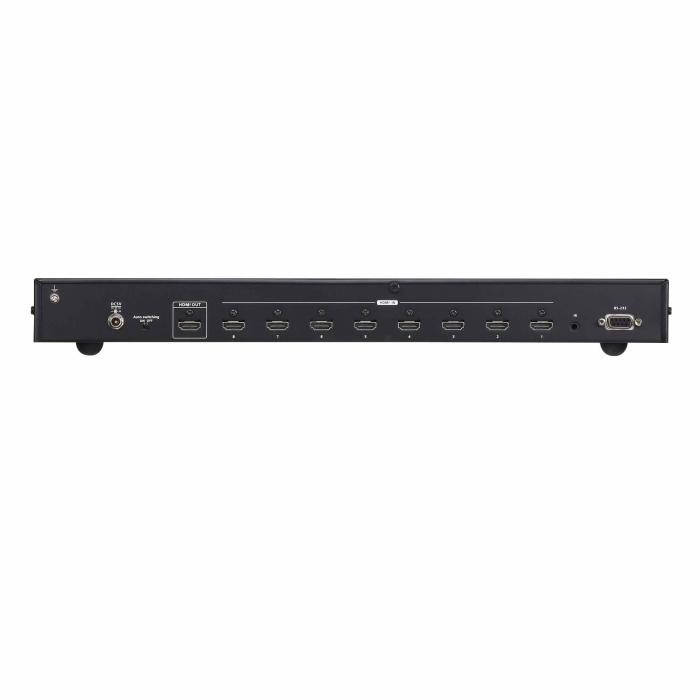

The ATEN 8 Port True 4K HDMI Switch, in black, distributes video signal between several devices with a single output. It has 8 HDMI inputs and 1 HDMI output with version 2.0, which allows switching up to eight sources on the same monitor. Its maximum resolution reaches 4096 x 2160 pixels and it also supports 3840 x 2160 and 1920 x 1080, with support for 3D content and HD 4K Ultra HD type. It incorporates HDCP in version 2.2 and a bandwidth of 600 MHz, with input and output impedances of 100 Ω that maintain signal integrity. It also has an RS-232 port to integrate it into control systems and a DC input socket for its power supply. The casing is metal and the unit weighs 2.42 kg, with dimensions of 158.3 x 44 x 437.2 mm (width x height x depth), designed for fixed installations.
Specifications
Ports & interfaces
- Video port type: HDMI
- HDMI ports quantity: 8
- HDMI version: 2.0
- HDMI in: 8
- Number of HDMI outputs: 1
- RS-232 ports: 1
- DC-in jack: Yes
Features
- Material: Metal
- Product colour: Black
- Consumer Electronics Control (CEC) support: Yes
- HDCP: Yes
- Maximum refresh rate: 60 Hz
- Maximum operating distance: 3 m
- Supported graphics resolutions: 1920 x 1080 (HD 1080), 3840 x 2160, 4096 x 2160
- Bandwidth: 600 MHz
- Maximum resolution: 4096 x 2160 pixels
- 3D: Yes
- HD type: 4K Ultra HD
- Input impedance: 100 Ω
- Output impedance: 100 Ω
- HDCP version: 2.2
Power
- AC adapter input voltage: 5.3 V
- Power consumption (typical): 3.73 W
Weight & dimensions
- Depth: 437.2 mm
- Height: 44 mm
- Weight: 2.42 kg
- Width: 158.3 mm
Packaging data
- Package width: 116 mm
- Package depth: 540 mm
- Package height: 233 mm
- Package weight: 2.87 kg
Packaging content
- Mounting kit: Yes
- AC adapter included: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
Logistics data
- Harmonized System (HS) code: 85176990
- Master (outer) case width: 375 mm
- Master (outer) case length: 565 mm
- Master (outer) case height: 258 mm
- Master (outer) case gross weight: 9.5 kg
- Products per master (outer) case: 3 pc(s)
- Master (outer) case net weight: 7.26 kg
