Description

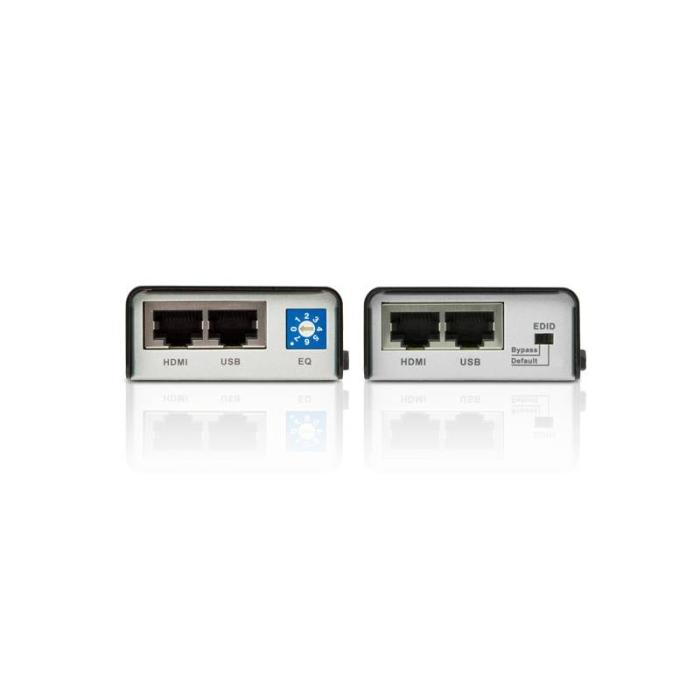

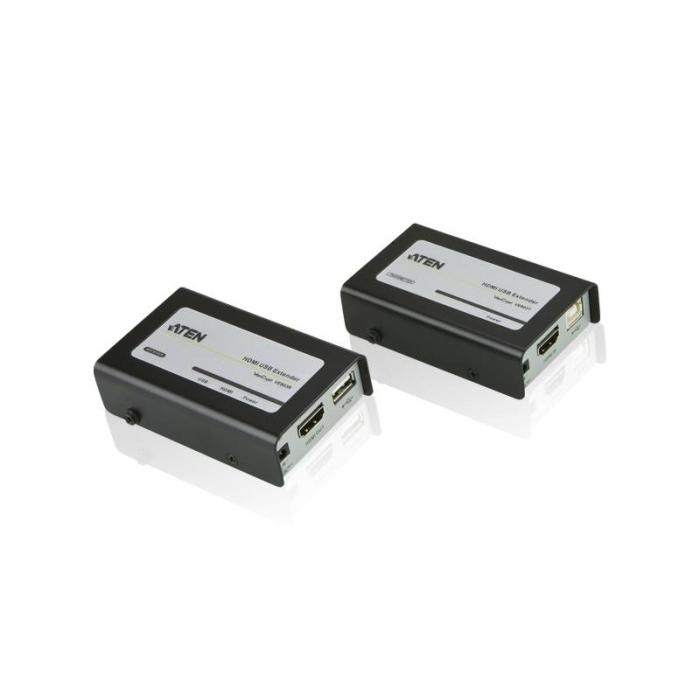

The ATEN HDMI/USB Extender over Cat 5 acts as a transmitter and receiver of AV signals to carry image and data over distance. Its black colour and metal construction give it a sober and resistant appearance, with a weight of 495 g. It works with 1080i and 1080p video modes, reaches a maximum resolution of 1920 x 1200 pixels and supports 3D content. Connection is wired, with one HDMI input and one HDMI output, and uses Cat5e cable for signal transmission. It includes HDCP support and EDID management, as well as protection against electrostatic discharges of up to 15 kV. Its bandwidth of 225 MHz accompanies the sending of video and audio. It has USB type A and USB type B connectors, as well as a direct current input plug.
Specifications
Features
- Type: AV transmitter & receiver
- Maximum resolution: 1920 x 1200 pixels
- Cable types supported: Cat5e
- Maximum transfer distance: 60 m
- Extended display identification data (EDID): Yes
- Electrostatic Discharge (ESD) protection: 15 kV
- Supported video modes: 1080i, 1080p
- Supported graphics resolutions: 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200
- Bandwidth: 225 MHz
- HDCP: Yes
- Material: Metal
- 3D: Yes
- Product colour: Black
Ports & interfaces
- Number of HDMI outputs: 1
- USB connector type: USB Type-A, USB Type-B
- DC-in jack: Yes
- Connectivity technology: Wired
- HDMI in: 1
Power
- Operating voltage (transmitter): 5 V
- Operating voltage (receiver): 5 V
- Power consumption (TX): 1.04 W
- Power consumption (RX): 0.75 W
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- Storage relative humidity (H-H): 0 - 80%
Weight & dimensions
- Weight: 495 g
- Receiver dimensions (WxDxH): 90 x 57.4 x 24 mm
- Receiver weight: 160 g
- Transmitter dimensions (WxDxH): 90 x 57.4 x 24 mm
- Transmitter weight: 160 g
Packaging data
- Package width: 59 mm
- Package depth: 239 mm
- Package height: 160 mm
- Package weight: 652 g
Packaging content
- AC adapter included: Yes
- Cables included: USB
- Manual: Yes
- Mounting kit: Yes
Logistics data
- Master (outer) case width: 315 mm
- Master (outer) case length: 490 mm
- Master (outer) case height: 338 mm
- Master (outer) case gross weight: 13.5 kg
- Master (outer) case net weight: 9.9 kg
- Products per master (outer) case: 20 pc(s)
