Description

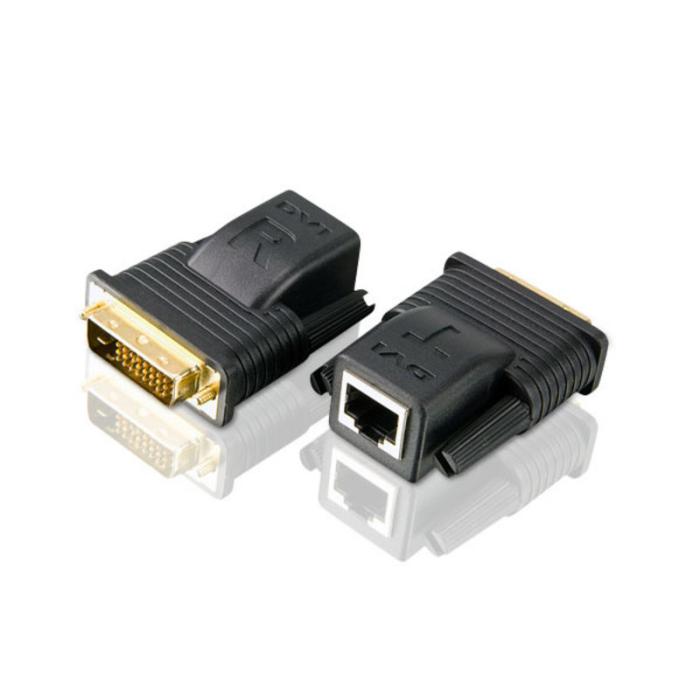

The ATEN Mini-DVI over Cat 5 extender is an AV signal transmitter and receiver in black that allows the video signal from one device to be carried to another via a network cable. It supports Cat5e cables and offers a maximum resolution of 1920 x 1080 pixels, with a transfer distance of up to 20 metres. It features a DVI-D input port and a DVI-D output port, as well as wired connectivity technology and HDCP compatibility. Its bandwidth reaches 165 MHz and it has an impedance of 100 Ω. The housing is made of plastic and the set weighs 96 g, which facilitates installation without adding bulk to the setup. It comes in a pack of 2 units, designed to cover both the transmitter and receiver ends. It supports an operating temperature range of 0 to 50 °C and an operating relative humidity of between 0 and 80 %.
Specifications
Features
- Type: AV transmitter & receiver
- Maximum resolution: 1920 x 1080 pixels
- Cable types supported: Cat5e
- Maximum transfer distance: 20 m
- Bandwidth: 165 MHz
- HDCP: Yes
- Material: Plastic
- Impedance: 100 Ω
- Product colour: Black
Ports & interfaces
- Connectivity technology: Wired
- DVI input ports: 1
- DVI output ports: 1
- Video in: 1 x DVI-D
- Video out: 1 x DVI-D
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
Weight & dimensions
- Weight: 96 g
- Receiver dimensions (WxDxH): 56.6 x 40.7 x 21.5 mm
- Receiver weight: 50 g
- Transmitter dimensions (WxDxH): 56.6 x 40.7 x 21.5 mm
- Transmitter weight: 50 g
Packaging data
- Quantity per pack: 2 pc(s)
- Package width: 38 mm
- Package depth: 107 mm
- Package height: 196 mm
- Package weight: 158 g
Packaging content
- Quick start guide: Yes
Technical details
- Compliance certificates: RoHS
Logistics data
- Master (outer) case width: 225 mm
- Master (outer) case length: 410 mm
- Master (outer) case height: 240 mm
- Master (outer) case gross weight: 3.93 kg
- Master (outer) case net weight: 1.92 kg
- Products per master (outer) case: 20 pc(s)
