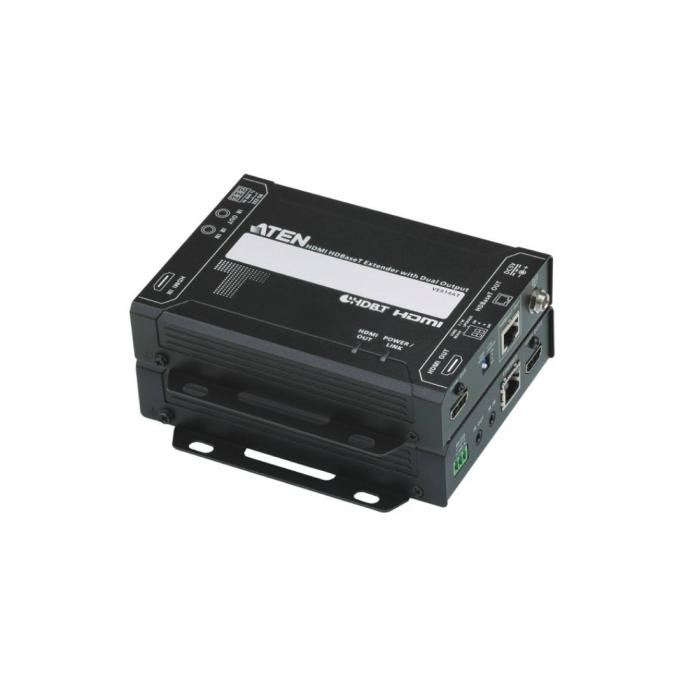

ATEN HDMI HDBaseT Extender with Dual Output (4K@100m) (HDBaseT Class A)

$520.84
$520.84 without VAT

ATEN HDMI HDBaseT Extender with Dual Output (4K@100m) (HDBaseT Class A).   More info

Brand: ATEN
SKU: 102678 PRC: 460975 EAN: 4710469342318 PN: VE814A-ATA-G

Description

HDMI HDBaseT Extender with Dual Output (4K@100m) (HDBaseT Class A)

Specifications

Features

  • Type: AV transmitter & receiver
  • Maximum resolution: 4096 x 2160 pixels
  • Cable types supported: Cat5e, Cat6, Cat6a
  • Maximum transfer distance: 150 m
  • Maximum refresh rate: 60 Hz
  • Electrostatic Discharge (ESD) protection: 15 kV
  • Infrared (IR) frequency range: 30 - 56 kHz
  • Supported graphics resolutions: 1920 x 1080 (HD 1080), 3840 x 2160, 4096 x 2160
  • Bandwidth: 340 MHz
  • HDCP: Yes
  • Material: Metal
  • 3D: Yes
  • Rack mounting: Yes
  • Plug and Play: Yes
  • HDCP version: 2.2
  • Product colour: Black

Ports & interfaces

  • Connectivity technology: Wired
  • RJ-45 input ports: 1
  • RJ-45 output ports: 1
  • HDBaseT port: Yes
  • HDMI in: 1
  • Number of HDMI outputs: 3
  • Serial ports quantity: 2
  • Serial interface type: RS-232
  • Remote (IR) input: 2
  • Remote (IR) output: 2
  • DC-in jack: Yes

Operational conditions

  • Operating temperature (T-T): 0 - 450 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%

Weight & dimensions

  • Receiver dimensions (WxDxH): 123 x 140.2 x 30 mm
  • Receiver weight: 470 g
  • Transmitter dimensions (WxDxH): 123 x 140.2 x 30 mm
  • Transmitter weight: 450 g

Packaging data

  • Package width: 100 mm
  • Package depth: 283 mm
  • Package height: 173 mm
  • Package weight: 1.44 kg

Packaging content

  • AC adapter included: Yes
  • Manual: Yes
  • IR blaster included: Yes
  • IR receiver included: Yes

Technical details

  • Package volume: 4813.86 cm³

Logistics data

  • Master (outer) case width: 292 mm
  • Master (outer) case length: 517 mm
  • Master (outer) case height: 194 mm
  • Master (outer) case gross weight: 7.89 kg
  • Master (outer) case volume: 29166.35 cm³
  • Master (outer) case net weight: 6.25 kg
