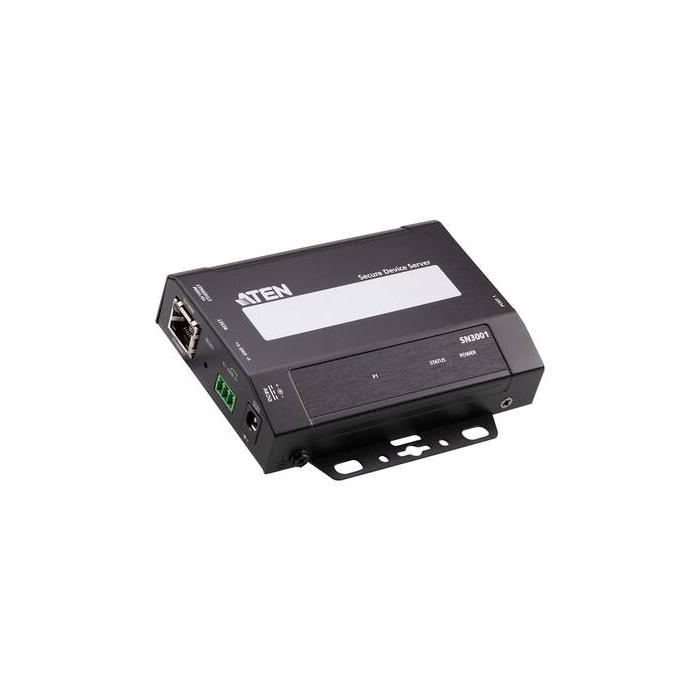

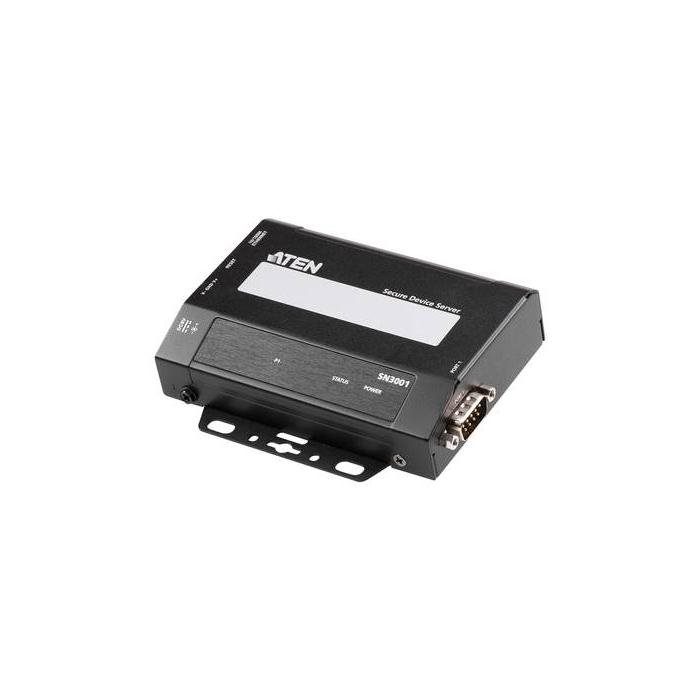

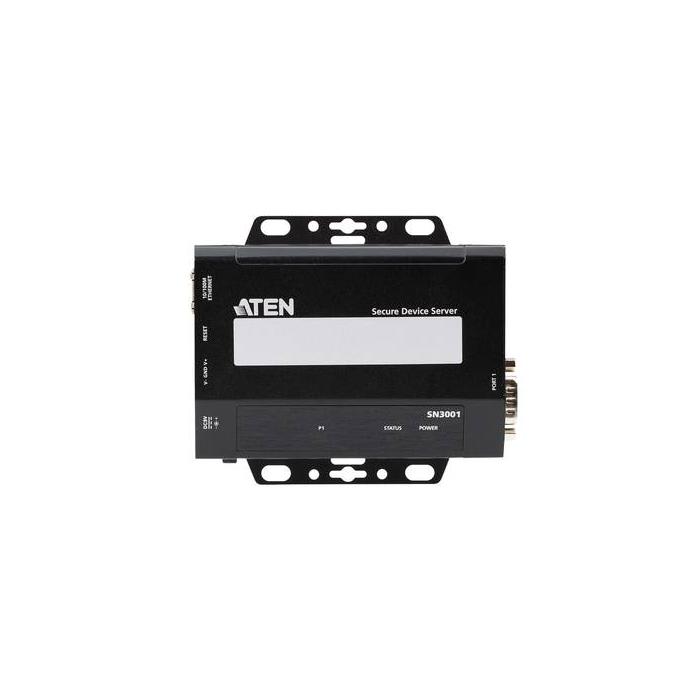

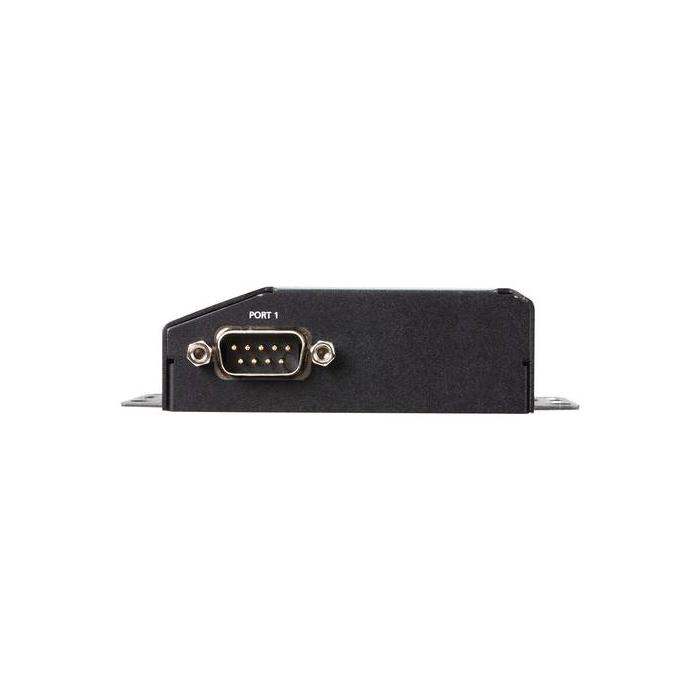

ATEN 1-Port RS-232 Secure Device Server

106.00 €
87.60 € without VAT

More info

Brand: ATEN
SKU: 91122 PRC: 352037 EAN: 4710469341021 PN: SN3001-AX-G

Description

Specifications

Technical details

  • Serial ports quantity: 1
  • Serial interface type: RS-232
  • Isolation: 1.5 kV
  • Ethernet LAN data rates: 10, 100 Mbit/s
  • Baud rate: 921.6 Kbit/s
  • RS-232 signals: CTS, DCD, DSR, DTR, GND, RTS, TXD, Tx
  • Data bits: 5, 6, 7, 8
  • Flow Control type: DTR/DSR, RTS/CTS, XON/XOFF
  • Parity bit: Even, Mark, No, Odd, Space
  • Stop bits: 1, 1.5, 2
  • Compliance certificates: RoHS
  • Certification: EMC: EN 55032/35 EMI: CISPR 32, FCC Part 15B Class A EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz t

Ports & interfaces

  • Cabling technology: 10/100Base-T(X)
  • Ethernet LAN (RJ-45) ports: 1
  • Terminal block port: Yes

Power

  • Power source type: DC
  • Power consumption (max): 0.804 W
  • Power consumption (typical): 0.634 W
  • Input voltage: 100 - 240 V
  • Input frequency: 50 - 60 Hz
  • Output voltage: 9 - 48 V

Security

  • Security algorithms: 802.1x RADIUS, 2048-bit RSA, TLS

Indication

  • LED indicators: Power, Status

Weight & dimensions

  • Weight: 200 g
  • Dimensions (WxDxH): 117 x 98 x 26 mm
  • Package width: 59 mm
  • Package length: 23.9 cm
  • Package height: 160 mm
  • Package weight: 480 g

Operational conditions

  • Operating temperature (T-T): 0 - 60 °C
  • Storage temperature (T-T): -40 - 75 °C
  • Operating relative humidity (H-H): 5 - 95%

Design

  • Product colour: Black
  • Housing material: Metal
  • Reset button: Yes
  • Safety: UL 60950-1, UL 62368-1

Packaging content

  • DIN rail kit included: Yes
  • Terminal block included: Yes
  • Number of foot pads: 4 pc(s)
  • User guide: Yes
  • AC adapter included: Yes

Logistics data

  • Country of origin: Taiwan
  • Products per master (outer) case: 10 pc(s)
  • Master (outer) case gross weight: 9.18 kg
  • Package volume: 2265.35 cm³
  • Master (outer) case volume: 27467.34 cm³
  • Master (outer) case length: 490 mm
  • Master (outer) case width: 315 mm
  • Master (outer) case height: 178 mm
  • Master (outer) case net weight: 4.1 kg
