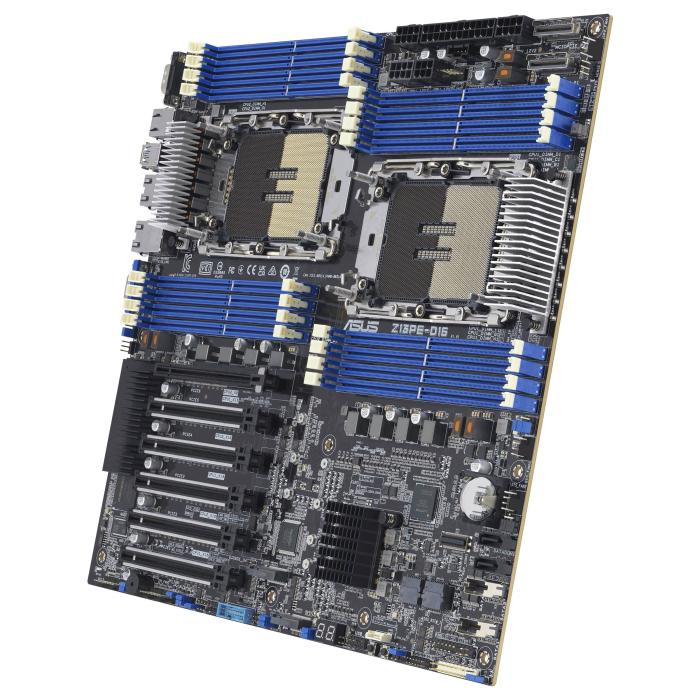

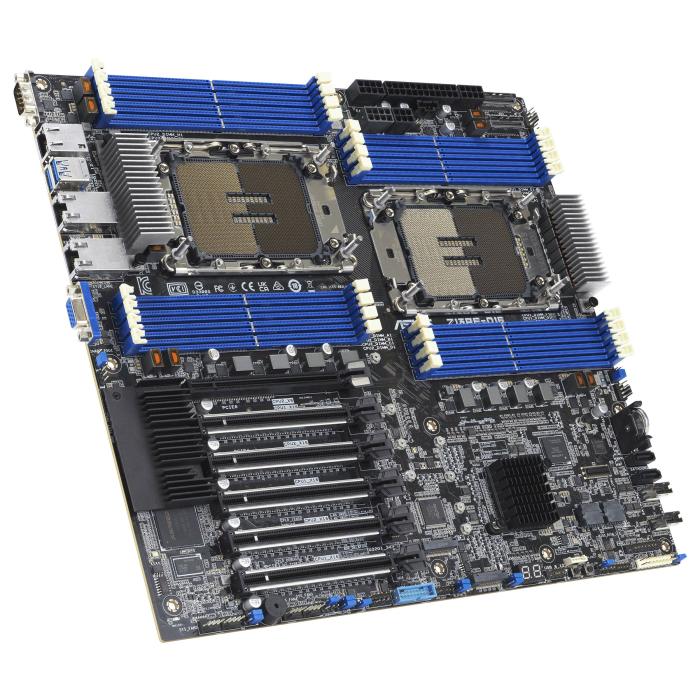

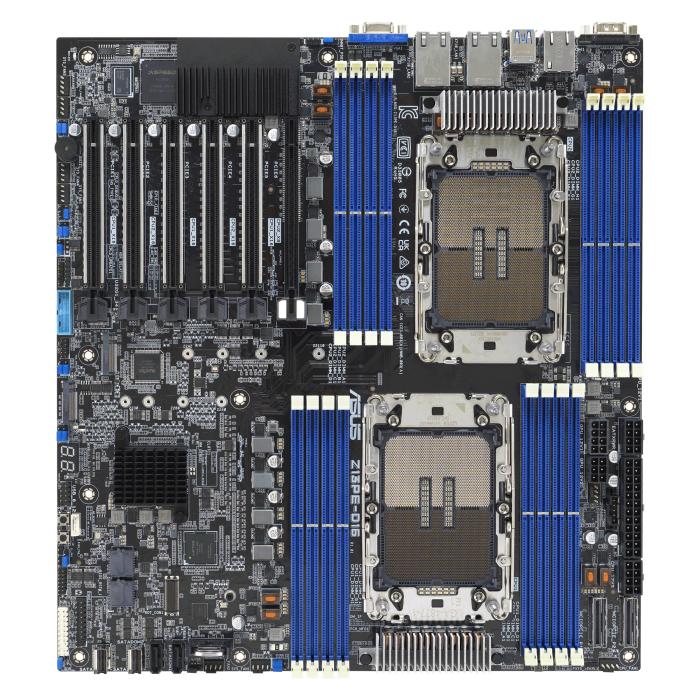

ASUS Z13PE-D16/ASMB11 Intel C741 LGA 4677 (Socket E) Extended ATX

Name: ASUS Z13PE-D16/ASMB11 Intel C741 LGA 4677 (Socket E) Extended ATX
Brand: ASUS
Price: 1135 USD
Availability: InStock

$1,135.00

$1,135.00 without VAT

ASUS Z13PE-D16/ASMB11 Intel C741 LGA 4677 (Socket E) Extended ATX. More info

Amount

Brand: ASUS

SKU: 106398 PRC: 526499 EAN: 4711387330661 PN: 90SB0CA0-M0UAY1

Description

Intel C741, LGA 4677, DDR5, 10 Gbps LAN, E-ATX, Aspeed AST2600 64MB + ASMB11-iKVM (out-of-band/BMC AST2600)

Specifications

Processor

Processor manufacturer: Intel
Processor socket: LGA 4677 (Socket E)
Compatible processor series: Intel® Xeon®

Memory

Supported memory types: DDR5-SDRAM
Number of memory slots: 16
Memory slots type: DIMM
Memory channels: Octa-channel
Supported memory clock speeds: 4800, 5600 MHz
Maximum internal memory: 2.05 TB
Supported memory module capacities: 16GB, 32GB, 64GB, 128GB

Storage controllers

Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 10

Graphics

On-board graphics card: Yes
Graphics card family: ASPEED
Graphics card: AST2600

Internal I/O

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 10
ATX Power connector (24-pin): Yes
EPS power connector (8-pin): Yes
TPM connector: Yes
USB 2.0 connectors: 1

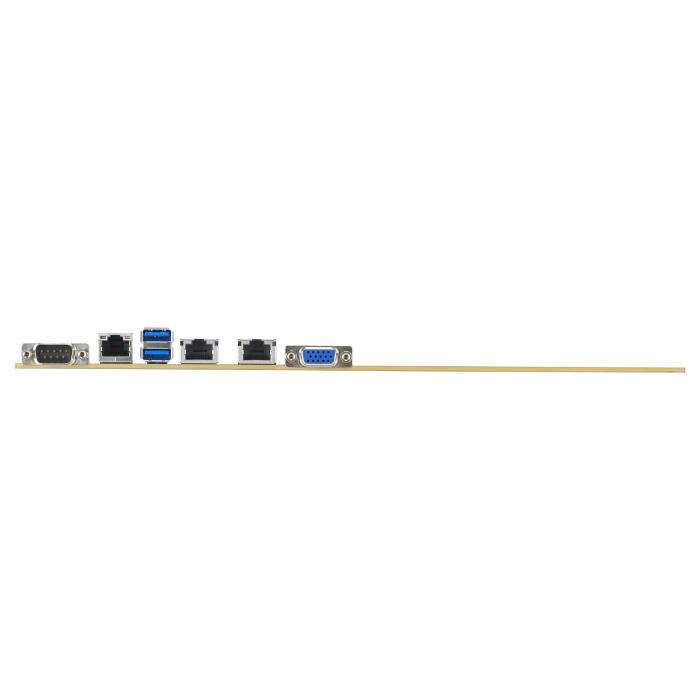

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 2
VGA (D-Sub) ports quantity: 1
Serial ports quantity: 1

Network

Ethernet LAN: Yes
Ethernet interface type: 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
LAN controller: Intel X710-AT2

Features

Motherboard chipset: Intel C741
Component for: Server
Motherboard form factor: Extended ATX
Motherboard chipset family: Intel

Expansion slots

PCI Express x16 (Gen 5.x) slots: 5
Number of M.2 (M) slots: 2

Operational conditions

Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): 10 - 35 °C
Storage relative humidity (H-H): 20 - 90%

Packaging data

Package weight: 2.75 kg

Weight & dimensions

Width: 304.8 mm
Depth: 330.2 mm

Other features

Weight: 1.75 kg
