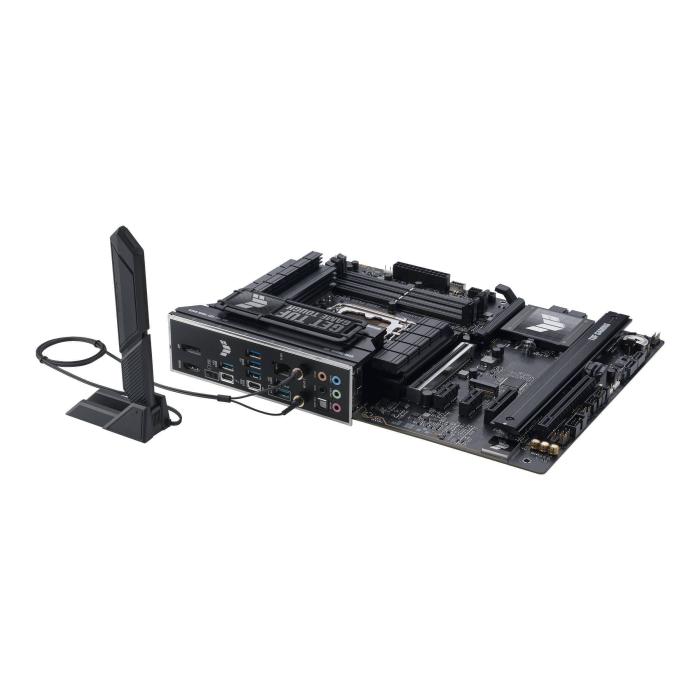

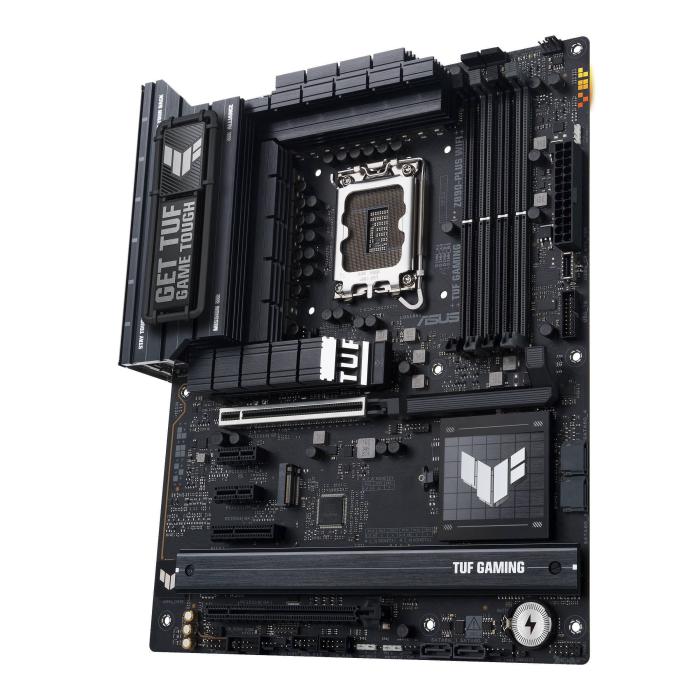

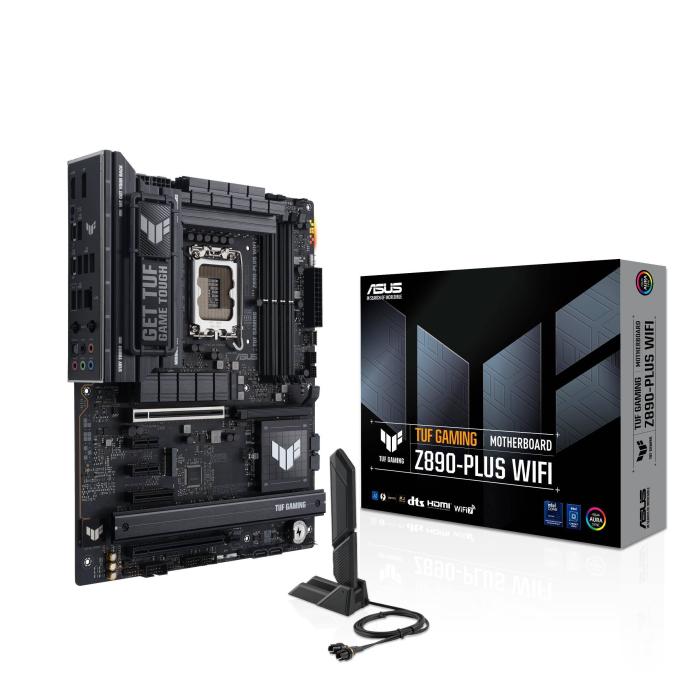

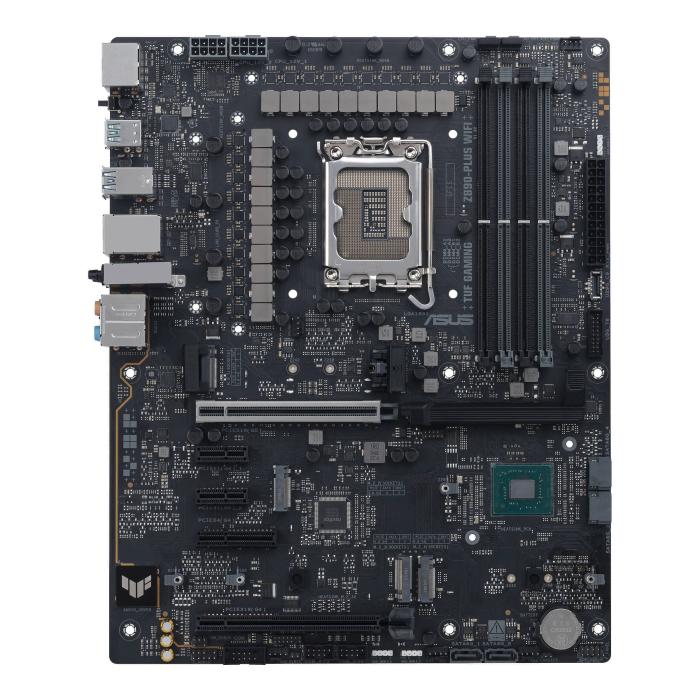

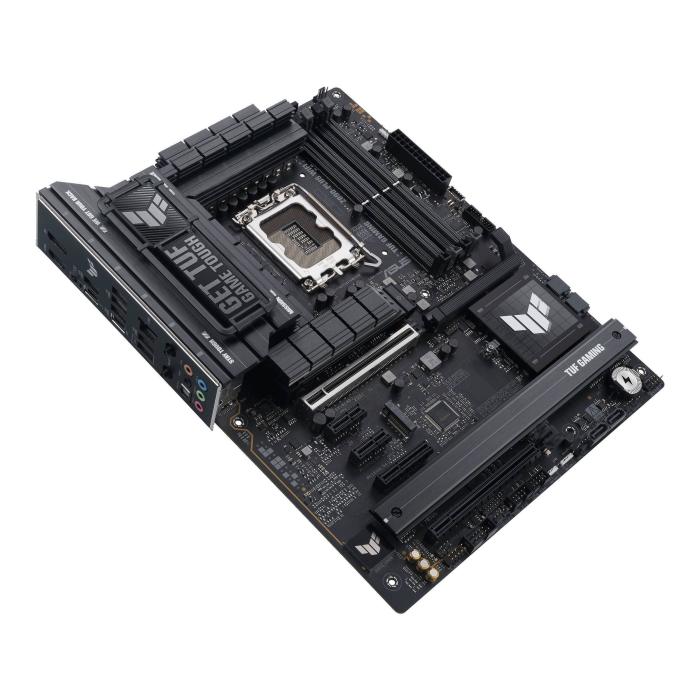

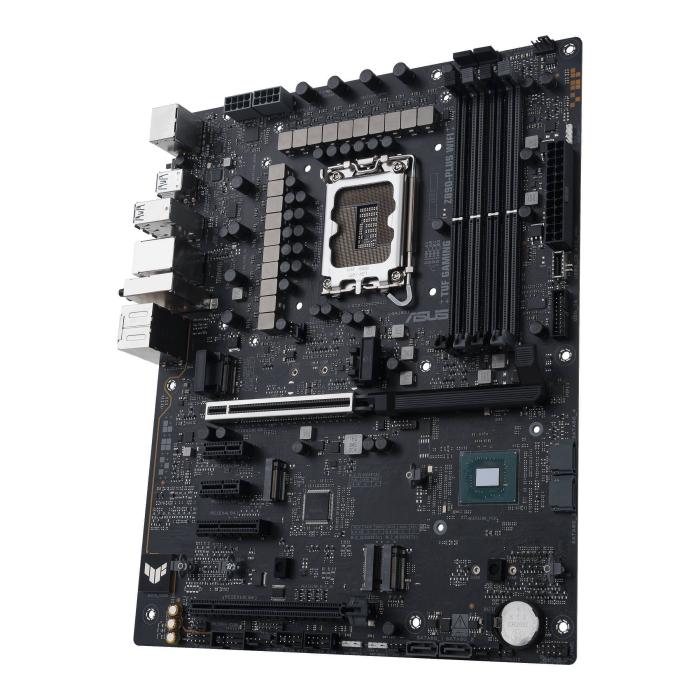

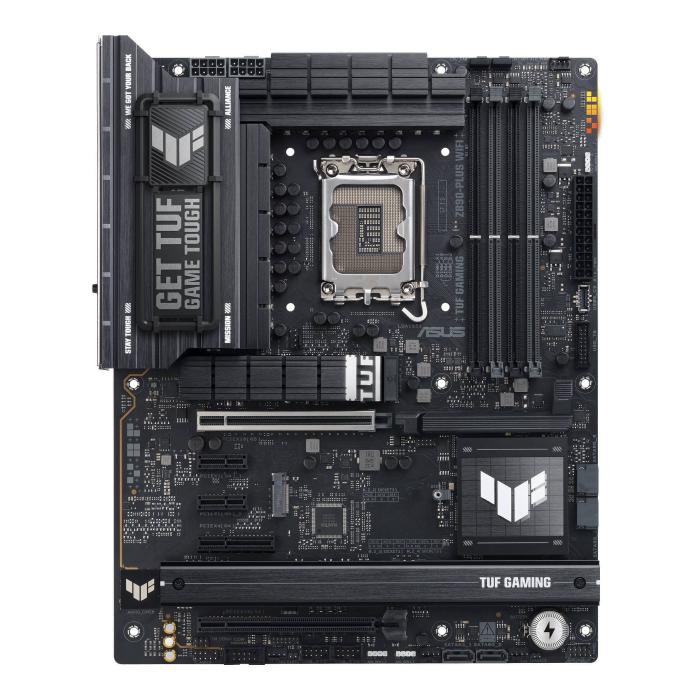

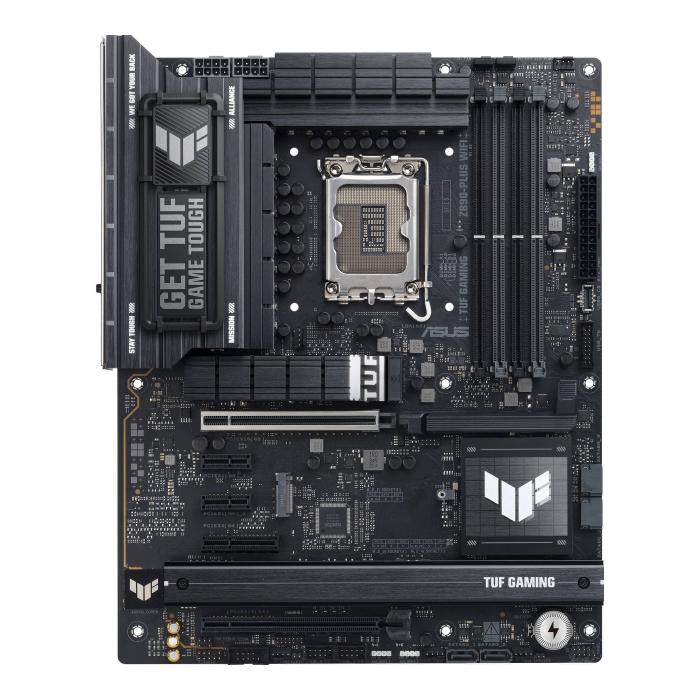

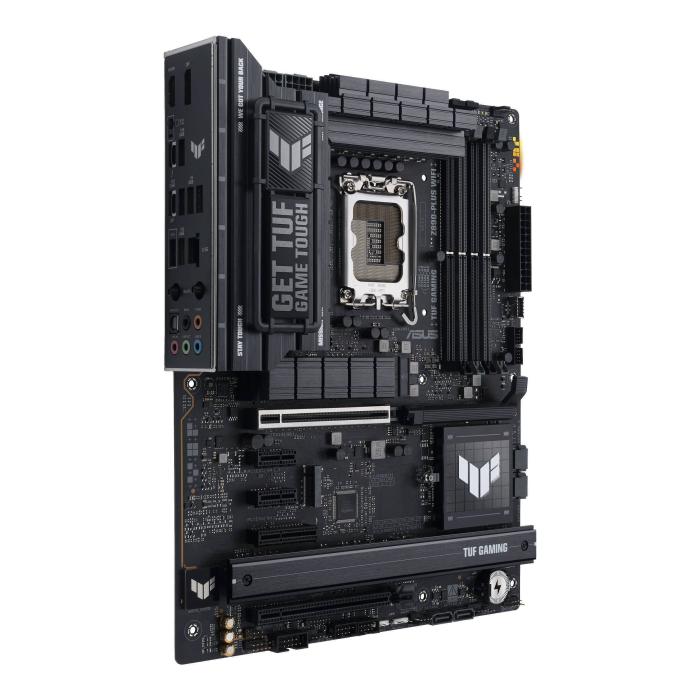

ASUS TUF GAMING Z890-PLUS WIFI Intel Z890 LGA 1851 (Socket V1) ATX

Not avaliable

More info

Brand: ASUS
SKU: 108924 PRC: 560474 EAN: 4711387763926 PN: 90MB1IQ0-M0EAY0

Description

ASUS TUF GAMING Z890-PLUS WIFI, Intel, LGA 1851 (Socket V1), Intel Core Ultra (Series 2), DDR5-SDRAM, 192 GB, DIMM

Specifications

Processor

  • Processor manufacturer: Intel
  • Processor socket: LGA 1851 (Socket V1)
  • Compatible processor series: Intel Core Ultra (Series 2)

Memory

  • Supported memory types: DDR5-SDRAM
  • Number of memory slots: 4
  • Memory slots type: DIMM
  • Memory channels: Dual-channel
  • ECC сompatibility: Non-ECC
  • Supported memory clock speed (max): 8600 MHz
  • Maximum internal memory: 192 GB
  • Unbuffered memory: Yes

Storage controllers

  • Supported storage drive types: HDD & SSD
  • Supported storage drive interfaces: M.2, SATA III
  • Number of HDDs supported: 4
  • Number of storage drives supported: 8
  • RAID support: Yes
  • RAID levels: 0, 1, 5, 10

Graphics

  • Parallel processing technology support: Not supported
  • On-board graphics card: No

Internal I/O

  • USB 2.0 connectors: 2
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
  • USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
  • Number of SATA III connectors: 4
  • Front panel audio connector: Yes
  • ATX Power connector (24-pin): Yes
  • CPU fan connector: Yes
  • Number of chassis fan connectors: 4
  • Chassis intrusion connector: Yes
  • EPS power connector (8-pin): Yes
  • Number of COM connectors: 1
  • Thunderbolt headers: 1
  • 12V power connector: Yes
  • RGB LED pin header: Yes

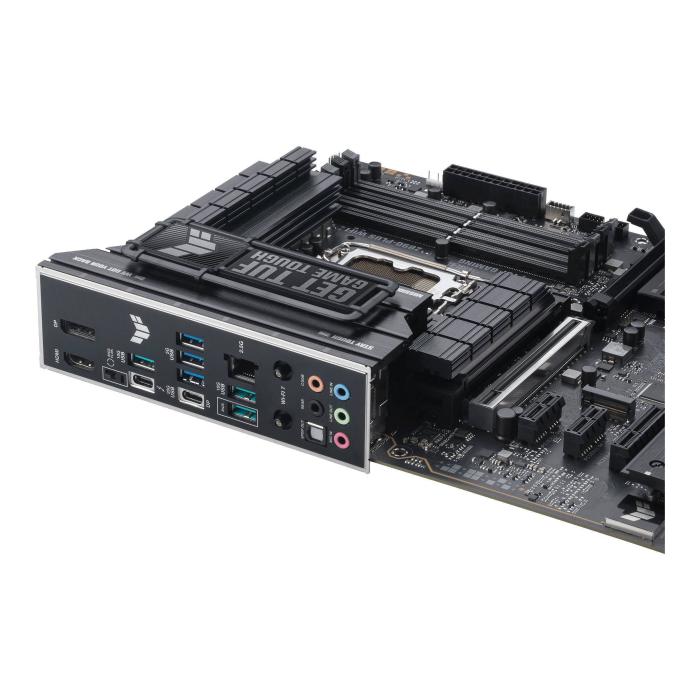

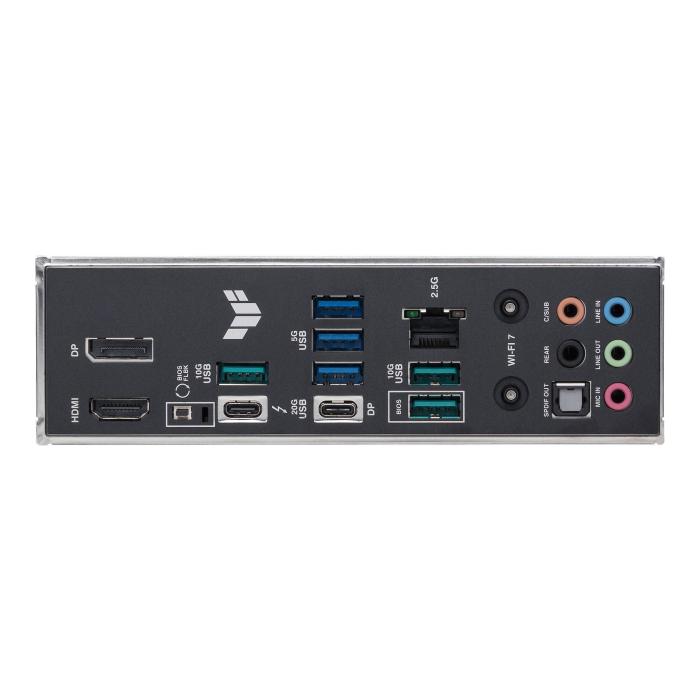

Rear panel I/O ports

  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
  • Ethernet LAN (RJ-45) ports: 1
  • HDMI ports quantity: 1
  • HDMI version: 2.1
  • DisplayPorts quantity: 1
  • DisplayPort version: 1.4
  • Headphone outputs: 1
  • Line-in: Yes
  • S/PDIF out port: Yes
  • Thunderbolt ports quantity: 1
  • WiFi-AP antenna jack: 2

Network

  • Ethernet LAN: Yes
  • Ethernet interface type: 2.5 Gigabit Ethernet
  • Wi-Fi: Yes
  • Top Wi-Fi standard: Wi-Fi 7 (802.11be)
  • Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
  • Bluetooth: Yes
  • Bluetooth version: 5.4

Features

  • Motherboard chipset: Intel Z890
  • Audio chip: Realtek ALC1220P
  • Audio output channels: 7.1 channels
  • Product colour: Black
  • Component for: PC
  • Motherboard form factor: ATX
  • Motherboard chipset family: Intel
  • Cooling type: Passive
  • Power source type: ATX
  • Windows operating systems supported: Windows 11

Expansion slots

  • PCI Express x4 (Gen 1.x) slots: 2
  • PCI Express x4 (Gen 4.x) slots: 1
  • PCI Express x16 (Gen 4.x) slots: 1
  • PCI Express x16 (Gen 5.x) slots: 1
  • Number of M.2 (M) slots: 4

BIOS

  • BIOS type: UEFI AMI
  • BIOS memory size: 256 Mbit

Packaging data

  • Package width: 353 mm
  • Package depth: 273 mm
  • Package height: 68 mm
  • Package weight: 2.34 kg

Weight & dimensions

  • Width: 305 mm
  • Depth: 244 mm

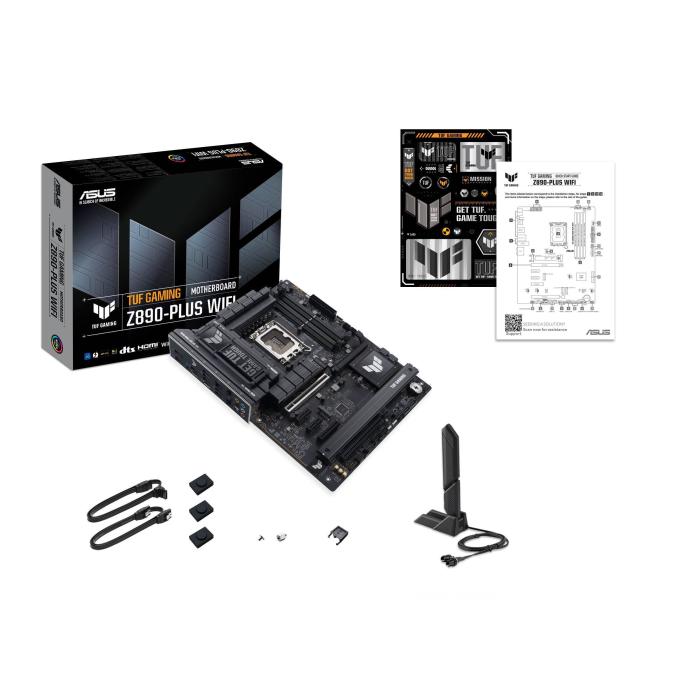

Packaging content

  • Cables included: SATA

Other features

  • Quick installation guide: Yes
  • Back-to-BIOS button: Yes
