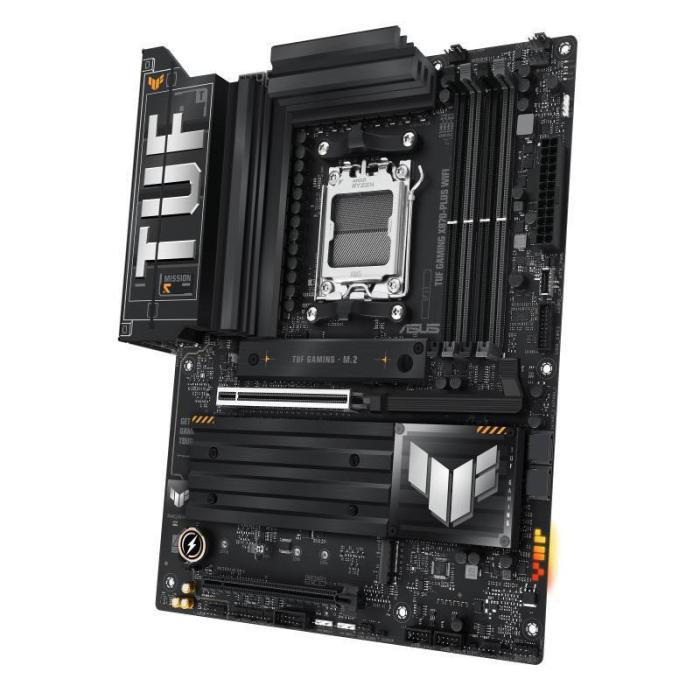

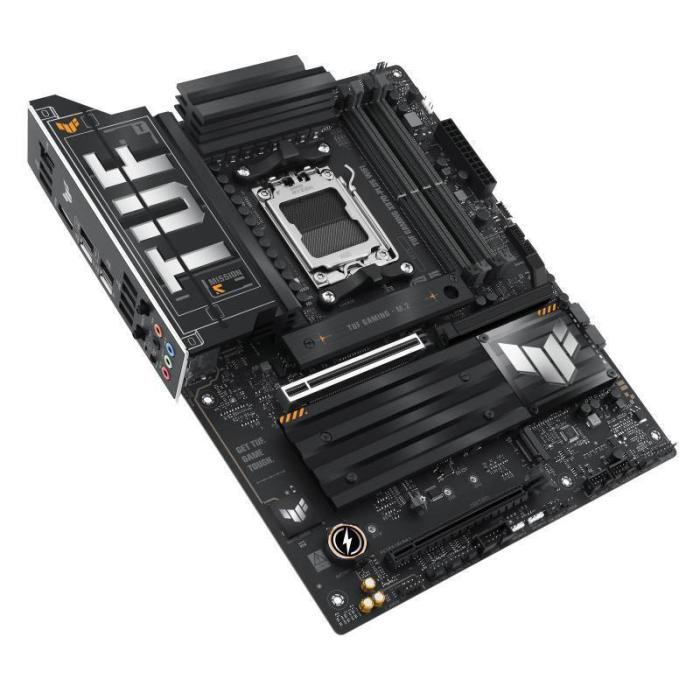

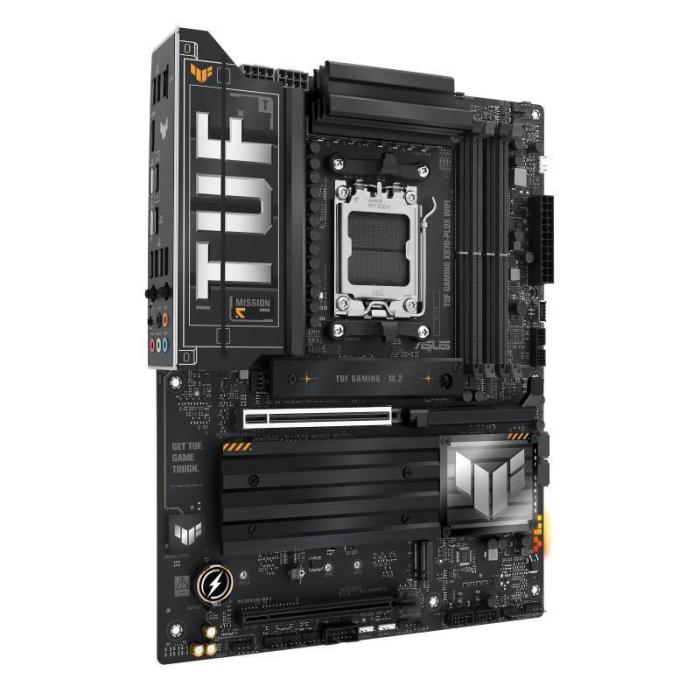

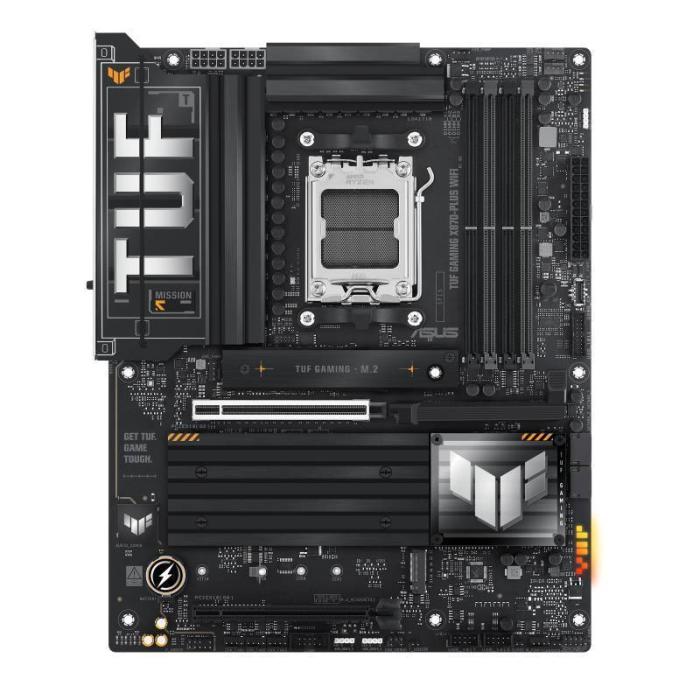

Name: ASUS TUF GAMING X870-PLUS WIFI AMD X870 Socket AM5 ATX
Brand: ASUS
Price: 315.17 USD
Availability: InStock

ASUS TUF GAMING X870-PLUS WIFI AMD X870 Socket AM5 ATX

$315.17

$315.17 without VAT

ASUS TUF GAMING X870-PLUS WIFI AMD X870 Socket AM5 ATX. More info

Amount

Brand: ASUS

SKU: 108689 PRC: 550405 EAN: 4711387723609 PN: 90MB1IU0-M0EAY0

Description

AMD AM5, AMD X870, 4 x DIMM slots, max. 192GB, DDR5, 1 x Realtek 2.5Gb Ethernet, 2x2 Wi-Fi 7 (802.11be), 256 Mb Flash ROM, UEFI AMI BIOS, ATX

Specifications

Processor

Processor manufacturer: AMD
Processor socket: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Memory

Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: ECC & Non-ECC
Supported memory clock speed (max): 8000 MHz
Maximum internal memory: 192 GB
Unbuffered memory: Yes

Storage controllers

Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 2
Number of storage drives supported: 6
RAID support: Yes
RAID levels: 0, 1, 5, 10

Graphics

Parallel processing technology support: Not supported
On-board graphics card: No

Internal I/O

USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2x2 connectors: 1
Number of SATA III connectors: 2
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 4
EPS power connector (8-pin): Yes
Number of COM connectors: 1
12V power connector: Yes

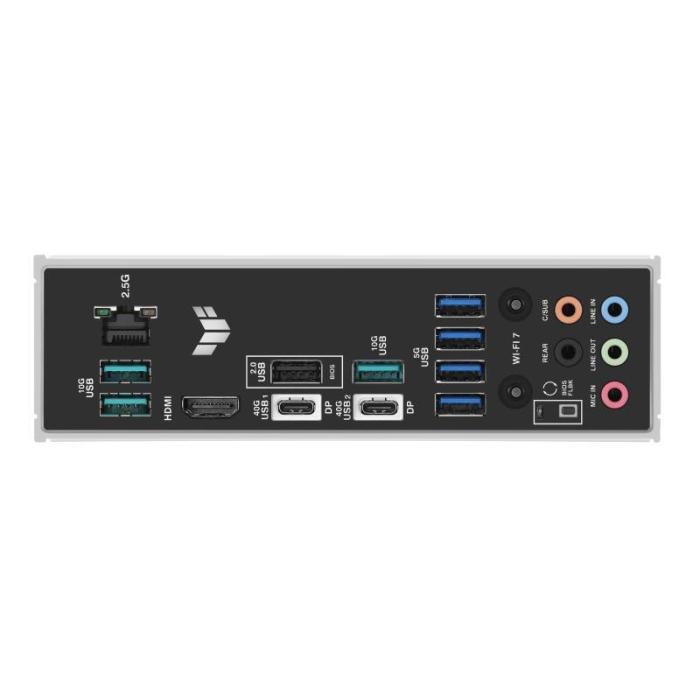

Rear panel I/O ports

USB 2.0 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
USB4 Gen 3x2 ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
Microphone in: Yes
USB connector type: USB Type-A, USB Type-C

Network

Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
Bluetooth: Yes
Bluetooth version: 5.4

Features

Motherboard chipset family: AMD
Windows operating systems supported: Windows 11
Motherboard chipset: AMD X870
Audio chip: Realtek ALC1220P
Audio output channels: 7.1 channels
Product colour: Black
Component for: PC
Motherboard form factor: ATX

Expansion slots

PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 4

BIOS

BIOS type: UEFI AMI
BIOS memory size: 256 Mbit

Weight & dimensions

Width: 305 mm
Depth: 244 mm

ASUS TUF GAMING X870-PLUS WIFI AMD X870 Socket AM5 ATX

Description

Specifications

Processor

Memory

Storage controllers

Graphics

Internal I/O

Rear panel I/O ports

Network

Features

Expansion slots

BIOS

Weight & dimensions
