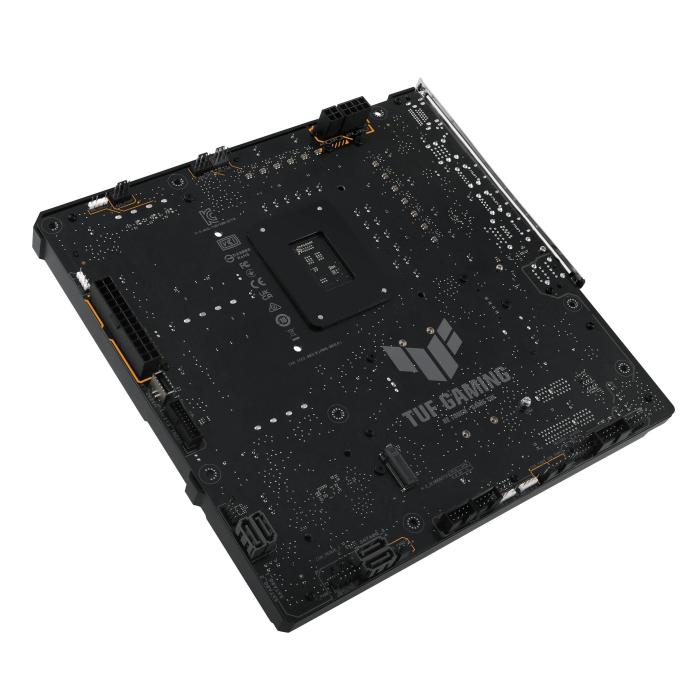

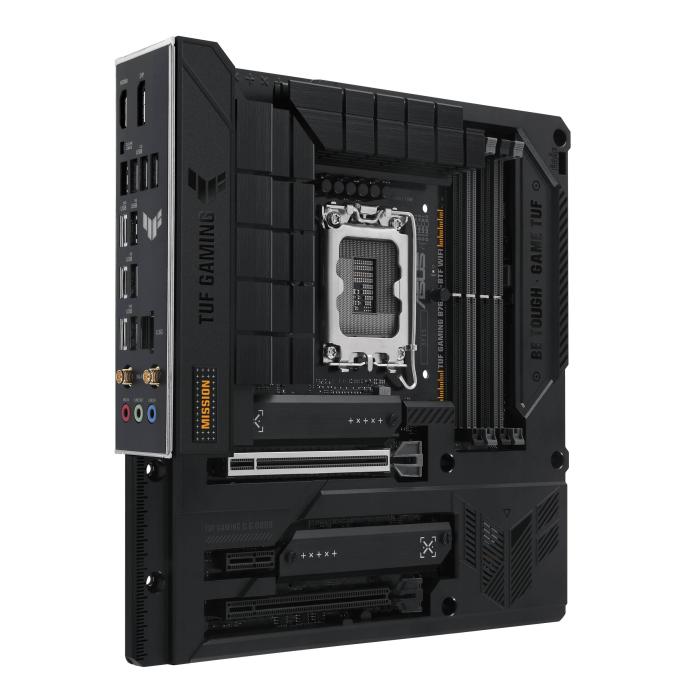

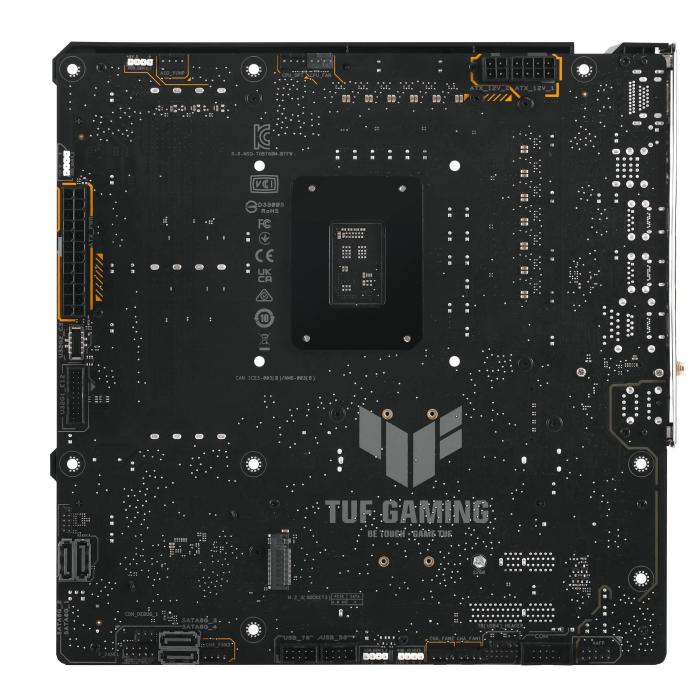

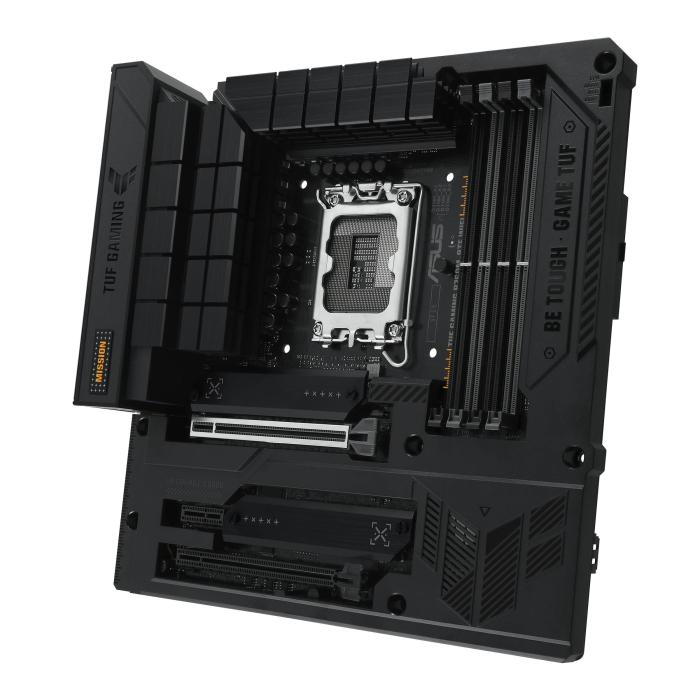

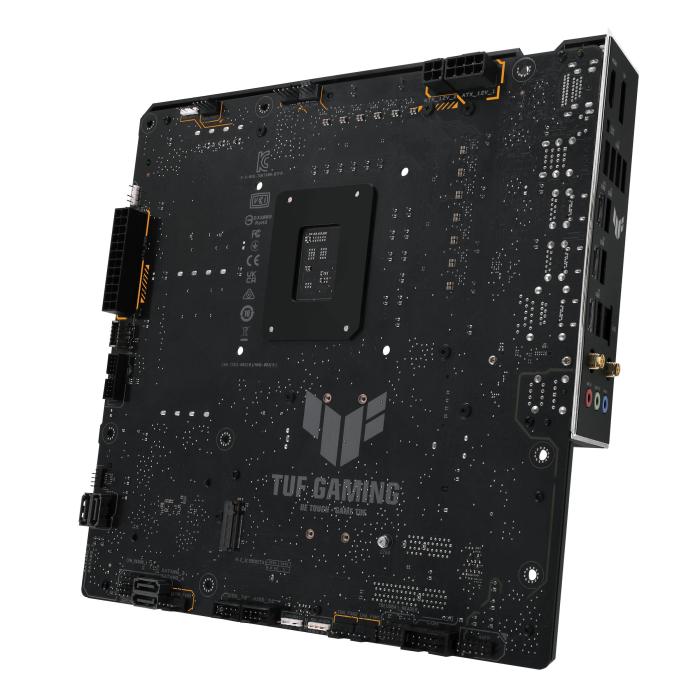

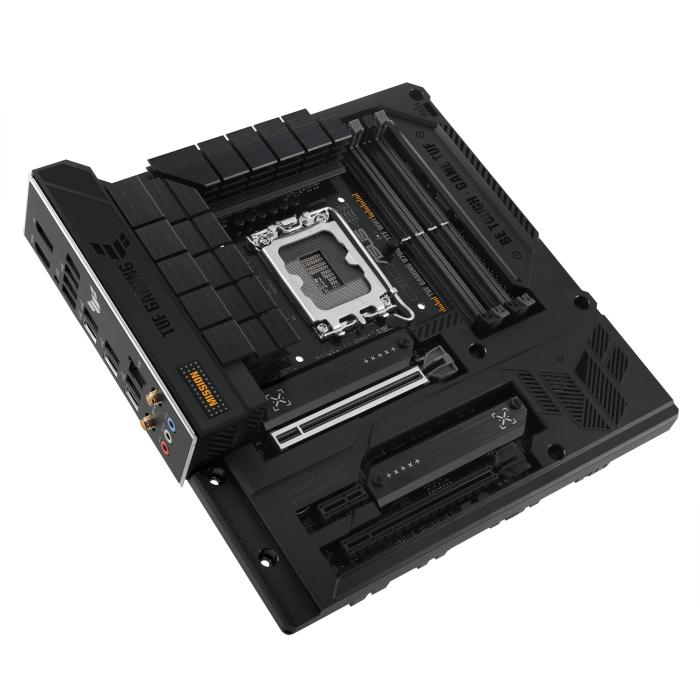

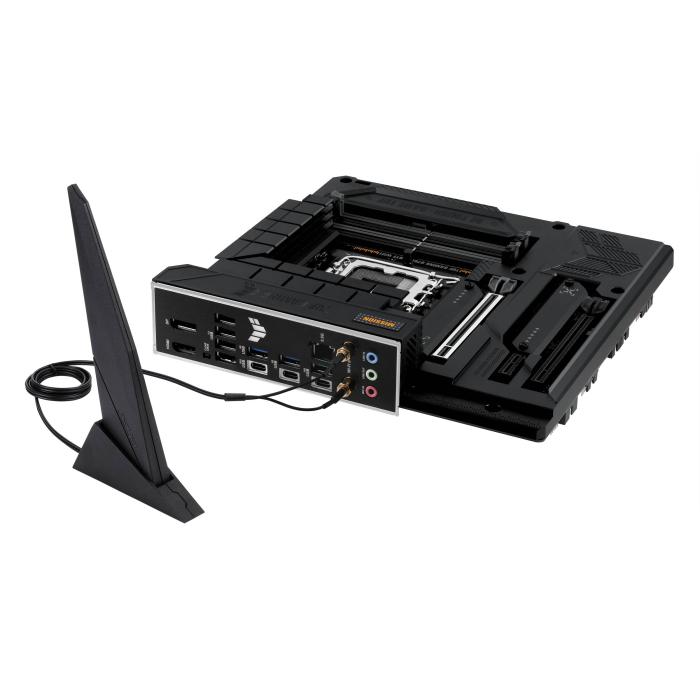

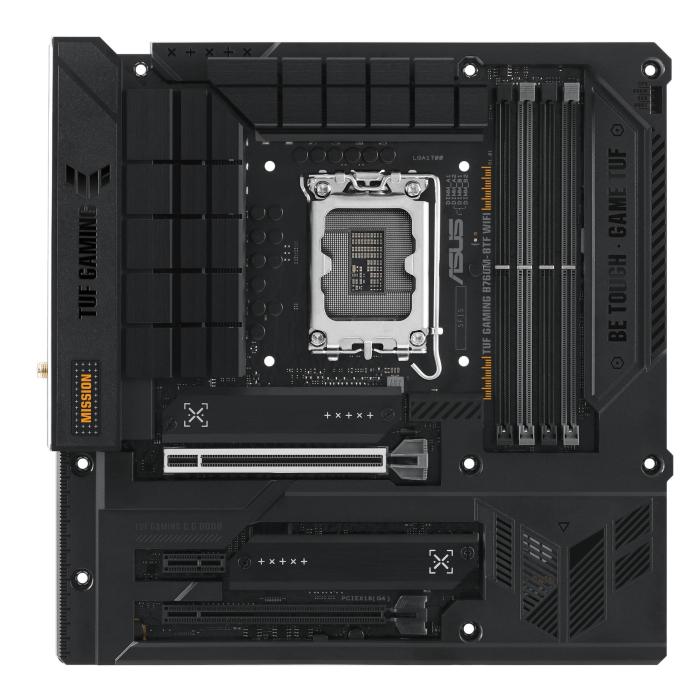

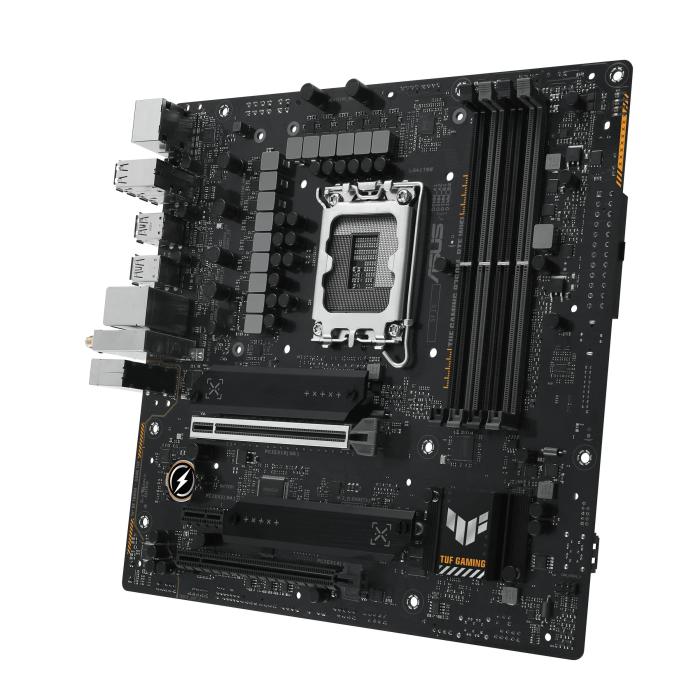

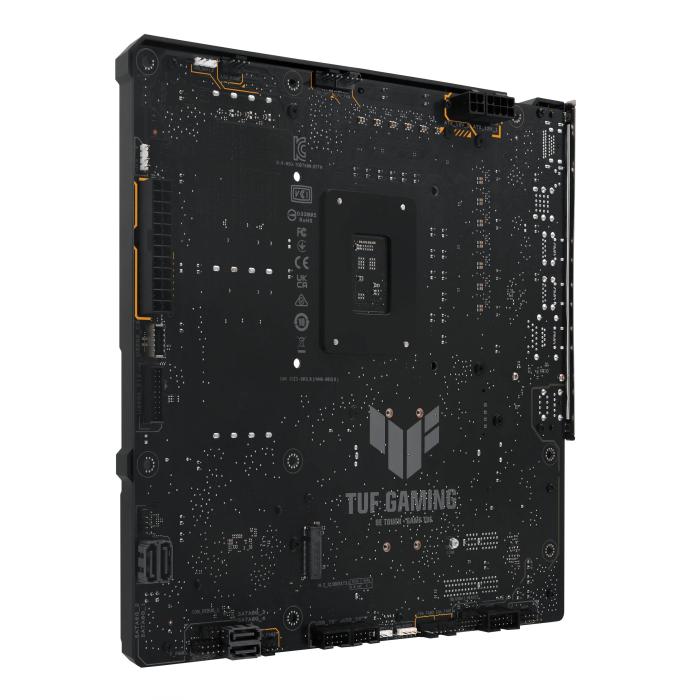

ASUS TUF GAMING B760M-BTF WIFI Intel B760 LGA 1700 micro ATX

$224.71
$224.71 without VAT

ASUS TUF GAMING B760M-BTF WIFI Intel B760 LGA 1700 micro ATX.   More info

Brand: ASUS
SKU: 114214 PRC: 469211 EAN: 4711387324547 PN: 90MB1G50-M0EAY0

Description

TUF GAMING B760M-BTF WIFI D4 motherboard socket Intel LGA 1700 (Intel B760, mATX, DDR5 memory, PCIe 5.0, 3x M.2, WiFi 6, Thunderbolt 4, Aura Sync)

Specifications

Processor

  • Processor manufacturer: Intel
  • Processor socket: LGA 1700
  • Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
  • Supported processor sockets: LGA 1700

Memory

  • Supported memory types: DDR5-SDRAM
  • Number of memory slots: 4
  • Memory slots type: DIMM
  • Memory channels: Dual-channel
  • ECC сompatibility: Non-ECC
  • Supported memory clock speeds: 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200 MHz
  • Supported memory clock speed (max): 7200 MHz
  • Maximum internal memory: 192 GB
  • Unbuffered memory: Yes

Storage controllers

  • Supported storage drive types: HDD & SSD
  • Supported storage drive interfaces: M.2, SATA III
  • Number of HDDs supported: 4
  • Number of storage drives supported: 7
  • RAID support: Yes
  • RAID levels: 0, 1, 5, 10

Graphics

  • Parallel processing technology support: Not supported

Internal I/O

  • USB 2.0 connectors: 2
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
  • USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
  • Number of SATA III connectors: 4
  • Front panel audio connector: Yes
  • ATX Power connector (24-pin): Yes
  • CPU fan connector: Yes
  • Number of chassis fan connectors: 3
  • Peripheral (Molex) power connectors (4-pin): 1
  • EPS power connector (8-pin): Yes
  • Number of COM connectors: 1
  • Thunderbolt headers: 1
  • 12V power connector: Yes
  • RGB LED pin header: Yes

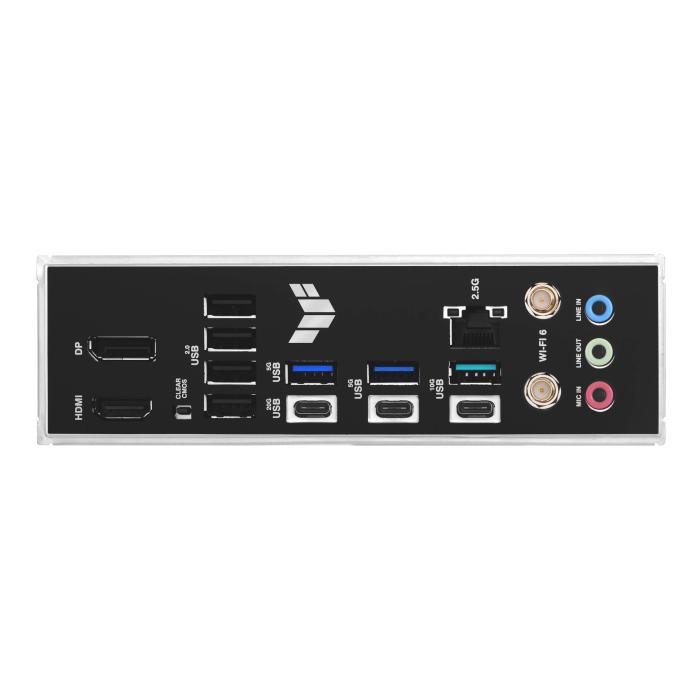

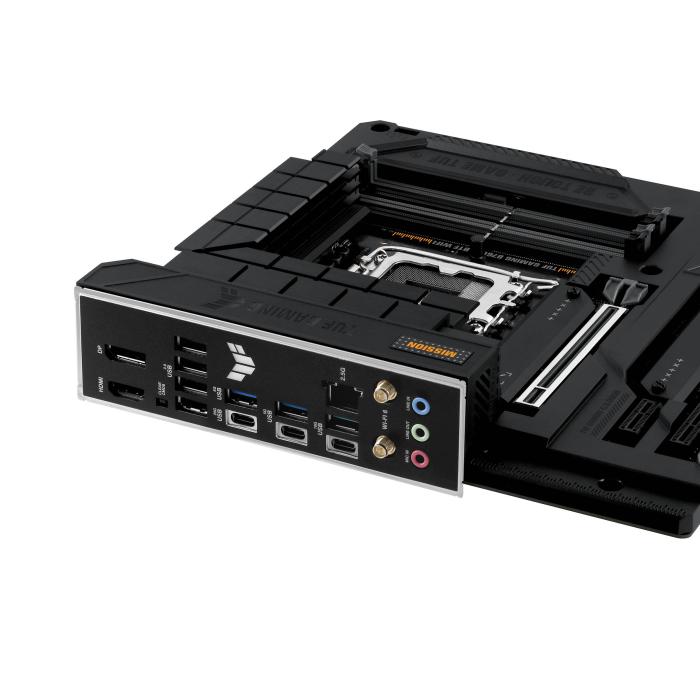

Rear panel I/O ports

  • USB 2.0 ports quantity: 4
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
  • USB 3.2 Gen 2x2 Type-C ports quantity: 1
  • Ethernet LAN (RJ-45) ports: 1
  • HDMI ports quantity: 1
  • HDMI version: 2.1
  • DisplayPorts quantity: 1
  • DisplayPort version: 1.4
  • Headphone outputs: 1
  • Line-in: Yes
  • Microphone in: Yes
  • WiFi-AP antenna jack: 1

Network

  • Bluetooth version: 5.2
  • Ethernet LAN: Yes
  • Ethernet interface type: 2.5 Gigabit Ethernet
  • Wi-Fi: Yes
  • Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
  • Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
  • Bluetooth: Yes

Features

  • Motherboard chipset: Intel B760
  • Audio output channels: 7.1 channels
  • Component for: PC
  • Motherboard form factor: micro ATX
  • Motherboard chipset family: Intel
  • Cooling type: Passive
  • Power source type: ATX
  • Windows operating systems supported: Windows 10, Windows 11

Expansion slots

  • PCI Express x1 (Gen 4.x) slots: 1
  • PCI Express x16 (Gen 4.x) slots: 1
  • PCI Express x16 (Gen 5.x) slots: 1
  • Number of M.2 (M) slots: 3

BIOS

  • BIOS type: UEFI AMI
  • BIOS memory size: 128 Mbit
  • Clear CMOS button: Yes

Weight & dimensions

  • Width: 244 mm
  • Depth: 244 mm

Packaging content

  • Cables included: SATA
  • User guide: Yes
