Name: ASUS PRIME H810M-A-CSM Intel H810 LGA 1851 (Socket V1) micro ATX
Brand: ASUS
Availability: OutOfStock

ASUS PRIME H810M-A-CSM Intel H810 LGA 1851 (Socket V1) micro ATX

Not avaliable

Amount

Brand: ASUS

SKU: 109073 PRC: 577741 EAN: 4711387844625 PN: 90MB1KK0-M0EAYC

Description

ASUS PRIME H810M-A-CSM, Intel, LGA 1851 (Socket V1), Intel Core Ultra (Series 2), LGA 1851, DDR5-SDRAM, 128 GB

Specifications

Processor

Processor manufacturer: Intel
Processor socket: LGA 1851 (Socket V1)
Compatible processor series: Intel Core Ultra (Series 2)
Supported processor sockets: LGA 1851

Memory

Supported memory types: DDR5-SDRAM
Number of memory slots: 2
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Supported memory clock speed (max): 6400 MHz
Maximum internal memory: 128 GB
Unbuffered memory: Yes

Storage controllers

Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
Number of HDDs supported: 4
Number of storage drives supported: 6

Graphics

On-board graphics card: No
Parallel processing technology support: Not supported

Internal I/O

CPU fan connector: Yes
Number of CPU fan connectors: 1
Number of chassis fan connectors: 2
EPS power connector (8-pin): Yes
Number of EPS power connectors (8-pin): 1
Number of COM connectors: 1
TPM connector: Yes
RGB LED pin header: Yes
Number of RGB LED pin headers: 3
USB 2.0 connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of SATA III connectors: 4
S/PDIF out connector: Yes
Front panel audio connector: Yes
Front panel connector: Yes
ATX Power connector (24-pin): Yes

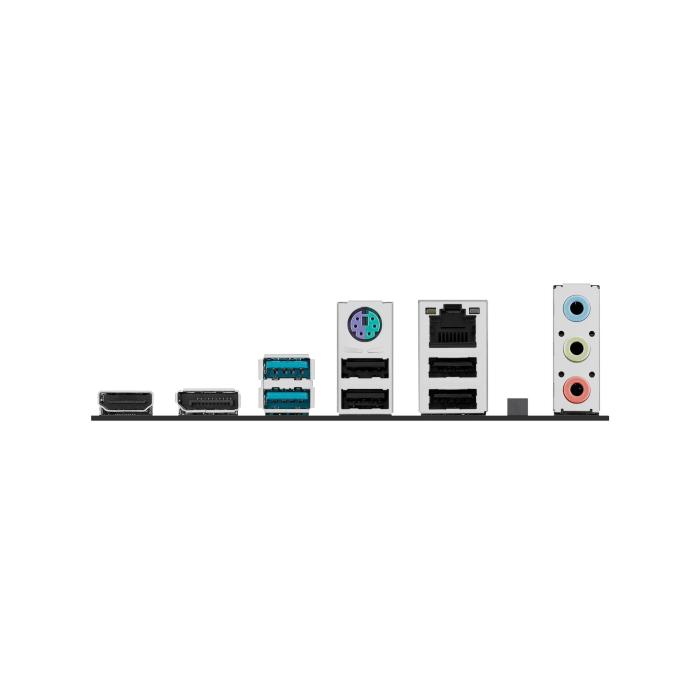

Rear panel I/O ports

USB 2.0 ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 1
DisplayPort version: 1.4
Line-in: Yes
Microphone in: Yes

Network

Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
LAN controller: Intel I219V
Wake-on-LAN ready: Yes
Wi-Fi: No

Features

Motherboard chipset: Intel H810
Audio output channels: 7.1 channels
Product colour: Black
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
Power source type: ATX
Windows operating systems supported: Windows 10 x64, Windows 11

Expansion slots

PCI Express x1 (Gen 4.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 2
1st M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 4.0

BIOS

BIOS type: UEFI AMI
BIOS memory size: 256 Mbit

Packaging data

Package width: 270 mm
Package depth: 263 mm
Package height: 51.5 mm
Package weight: 782 g

Weight & dimensions

Width: 244 mm
Depth: 222 mm
Height: 37 mm

Other features

Weight: 534 g
Number of M.2 (E) slots: 1
