Description

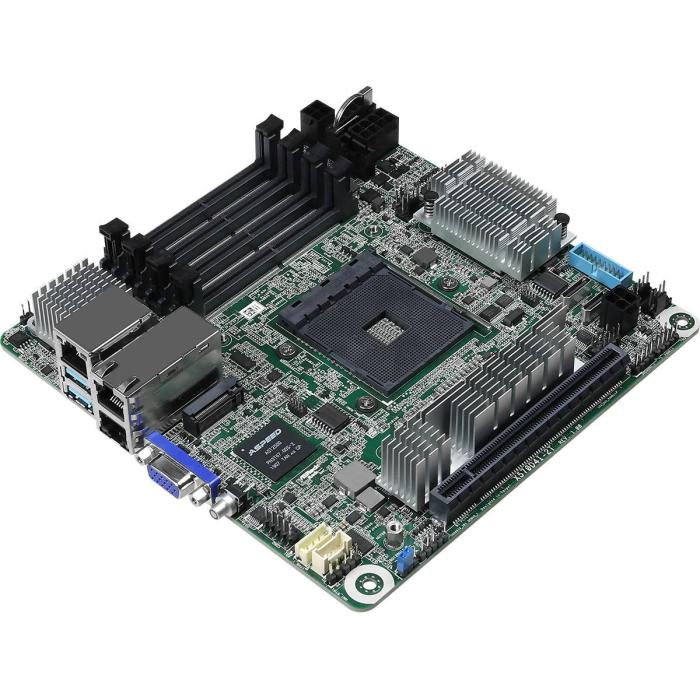

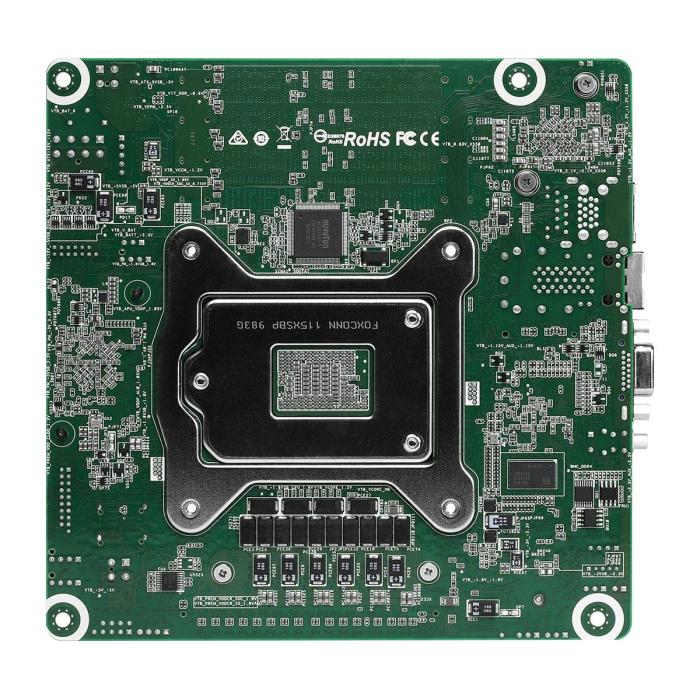

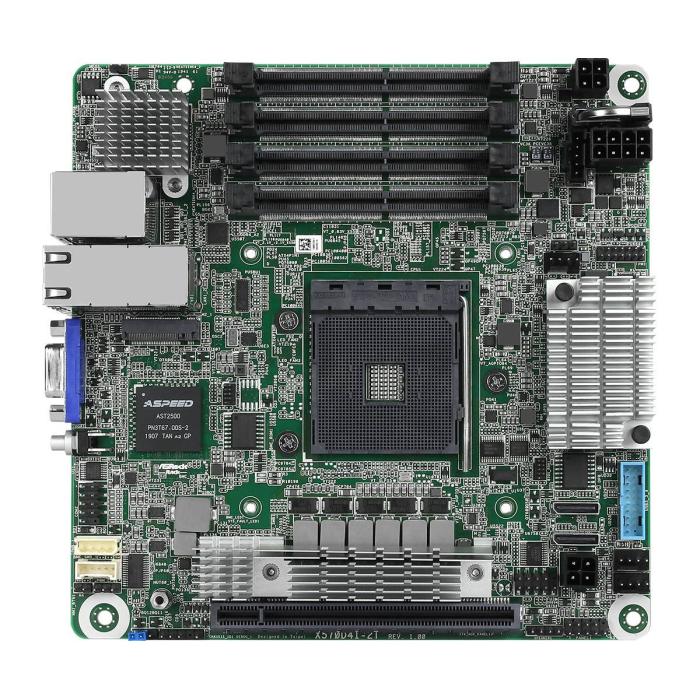

ASROCK X570D4I-2T motherboard in mini ITX form factor for Socket AM4, designed for AMD Ryzen 3000 Series processors. It features four SO-DIMM slots supporting up to 64 GB of DDR4-SDRAM memory at 2933 MHz, with support for ECC and non-ECC modules in dual-channel configuration. Includes integrated Aspeed AST2500 graphics with 16 MB of dedicated memory and storage connectivity via Serial ATA III interfaces. This motherboard offers a compact form factor without compromising compatibility with the AMD X570 platform.
Specifications
Processor
- Processor manufacturer: AMD
- Processor socket: Socket AM4
- Compatible processor series: AMD Ryzen 3000 Series
- Maximum number of SMP processors: 1
Memory
- Supported memory types: DDR4-SDRAM
- Number of memory slots: 4
- Memory slots type: SO-DIMM
- Memory channels: Dual-channel
- Memory voltage: 1.2 V
- ECC сompatibility: ECC & Non-ECC
- Supported memory clock speeds: 2933 MHz
- Maximum internal memory: 64 GB
Storage controllers
- Supported storage drive interfaces: Serial ATA III, SATA III
Graphics
- Parallel processing technology support: Not supported
- Graphics card family: ASPEED
- Graphics card: AST2500
- On-board graphics card model: Aspeed AST2500
- On-board graphics card memory: 16 MB
Internal I/O
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- Number of SATA III connectors: 8
- Number of chassis fan connectors: 3
- Number of COM connectors: 1
- TPM connector: Yes

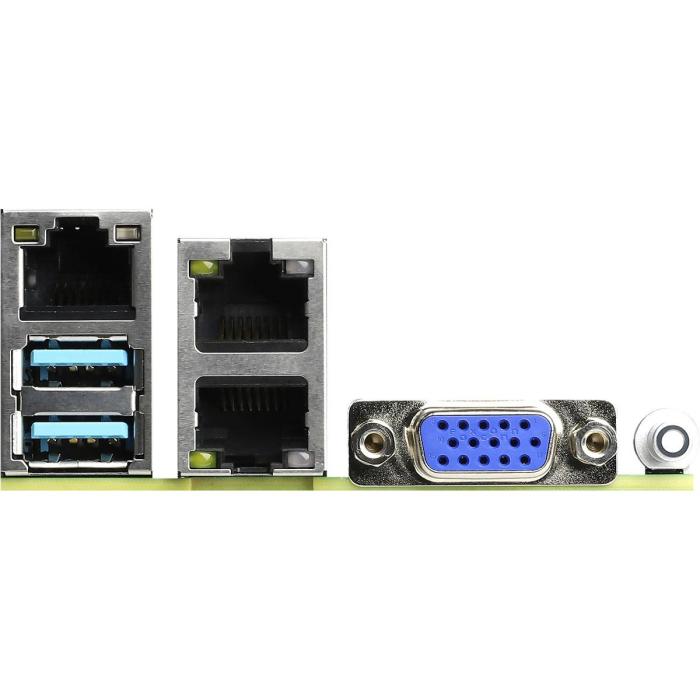

Rear panel I/O ports
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
- Ethernet LAN (RJ-45) ports: 2
- IPMI LAN (RJ-45) port: Yes
- VGA (D-Sub) ports quantity: 1
Network
- Ethernet LAN: Yes
- Ethernet interface type: 10 Gigabit Ethernet
- LAN controller: Intel® X550-AT2, Realtek RTL8211E
- Wake-on-LAN ready: Yes
- Wi-Fi: No
Features
- Motherboard chipset: AMD X570
- Component for: PC
- Motherboard form factor: mini ITX
- Motherboard chipset family: AMD
Expansion slots
- PCI Express x16 slots: 1
- Number of M.2 (M) slots: 1
BIOS
- BIOS type: UEFI AMI
- BIOS memory size: 32 Mbit
- ACPI version: 2.0
- System management BIOS (SMBIOS) version: 2.8
Operational conditions
- Storage temperature (T-T): -40 - 70 °C
- Operating temperature (T-T): 10 - 35 °C
Logistics data
- Harmonized System (HS) code: 84733020
Weight & dimensions
- Width: 170.2 mm
- Depth: 170.2 mm
- Height: 285 mm
Other features
- Weight: 760 g
- Number of DIMM slots: 4
- Number of processors supported: 1
