Description

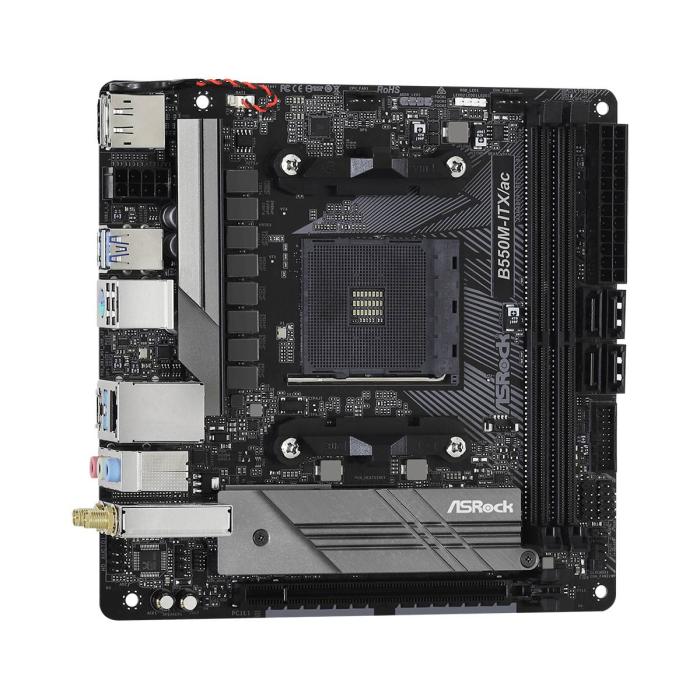

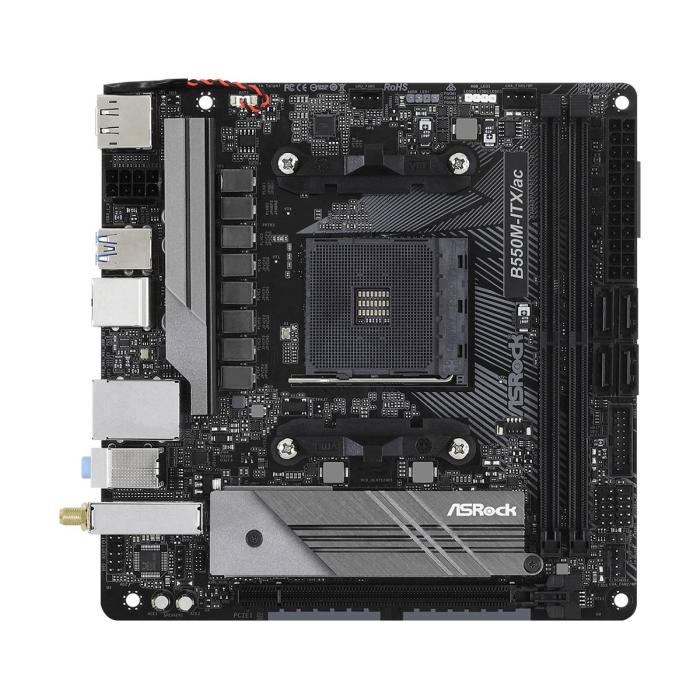

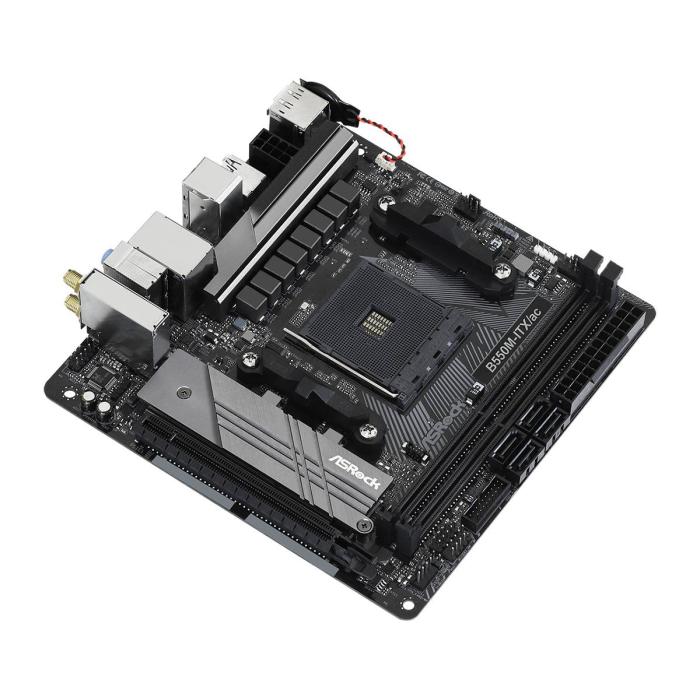

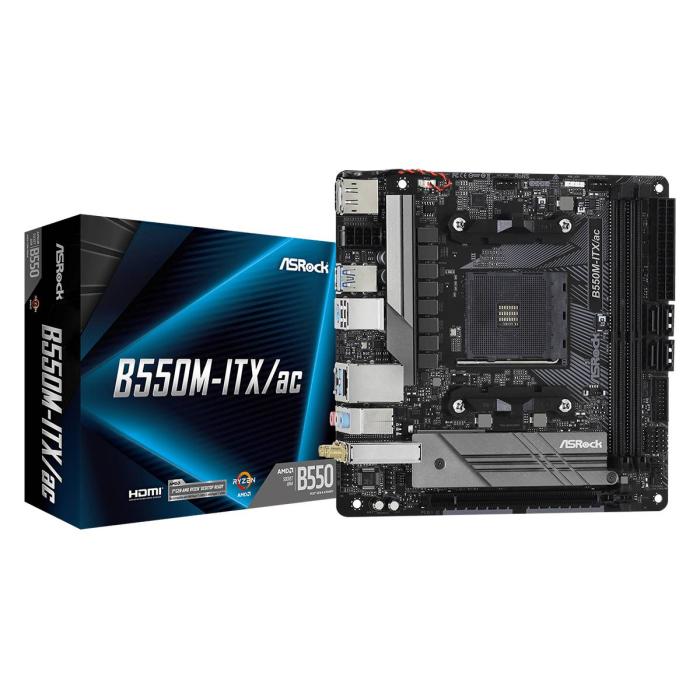

The ASROCK B550M-ITX/ac motherboard is a mini ITX model with an AM4 socket, designed for compact builds with AMD Ryzen 3000 Series processors. It features two DIMM slots that support up to 64 GB of DDR4-SDRAM memory in dual channel, compatible with ECC and non-ECC unbuffered modules. For storage, it offers M.2 and SATA III interfaces, while its integrated Radeon Vega graphics, with DirectX 12 and HDCP support, covers basic visual needs without a dedicated card. The 8-pin EPS power connector ensures stable CPU power delivery in this reduced form factor.
Specifications
Processor
- Processor manufacturer: AMD
- Processor socket: Socket AM4
- Compatible processor series: AMD Ryzen 3000 Series
- Maximum number of SMP processors: 1
Memory
- Supported memory types: DDR4-SDRAM
- Number of memory slots: 2
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: ECC & Non-ECC
- Supported memory clock speeds: 2133, 2400, 2667, 2933, 3200, 3466, 3600, 3733, 3800, 3866, 4000, 4133, 4200, 4266, 4333, 4400, 4466, 4533, 4600 MHz
- Maximum internal memory: 64 GB
- Unbuffered memory: Yes
Storage controllers
- Supported storage drive interfaces: M.2, SATA III
Graphics
- On-board graphics card: Yes
- Graphics card family: AMD
- Graphics card: Radeon Vega
- HDCP: Yes
- DirectX version: 12.0
Internal I/O
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- EPS power connector (8-pin): Yes
- RGB LED pin header: Yes

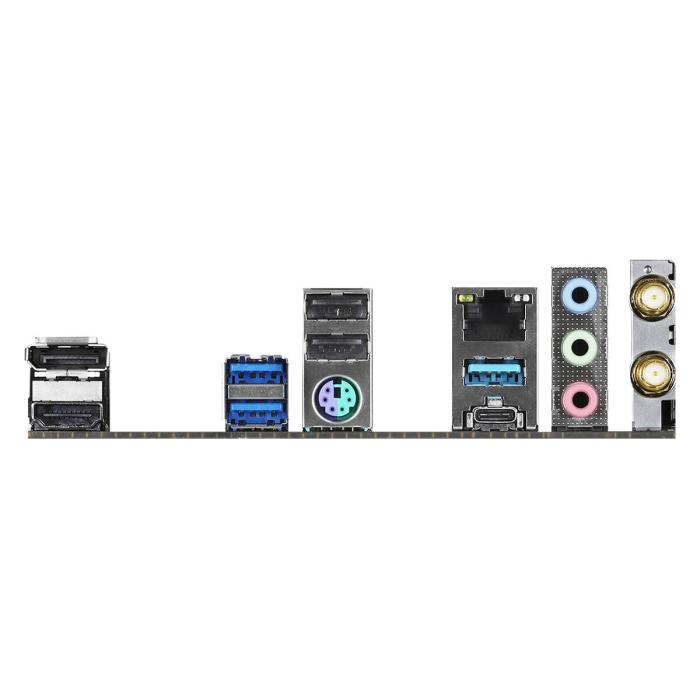

Rear panel I/O ports
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- PS/2 ports quantity: 1
- HDMI ports quantity: 1
- DisplayPorts quantity: 1
- DisplayPort version: 1.4
Network
- Ethernet LAN: Yes
- Ethernet interface type: Gigabit Ethernet
- LAN controller: Realtek RTL8111H
- Wake-on-LAN ready: Yes
- Wi-Fi: Yes
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
- Bluetooth: Yes
- Bluetooth version: 4.2
Features
- Motherboard chipset: AMD B550
- Audio chip: Realtek ALC887
- Audio output channels: 7.1 channels
- Component for: PC
- Motherboard form factor: mini ITX
- Motherboard chipset family: AMD
BIOS
- BIOS type: UEFI AMI
Logistics data
- Harmonized System (HS) code: 84733020
Weight & dimensions
- Width: 170 mm
- Depth: 170 mm
- Height: 70 mm
Packaging content
- Drivers included: Yes
Other features
- Weight: 465 g
