Description

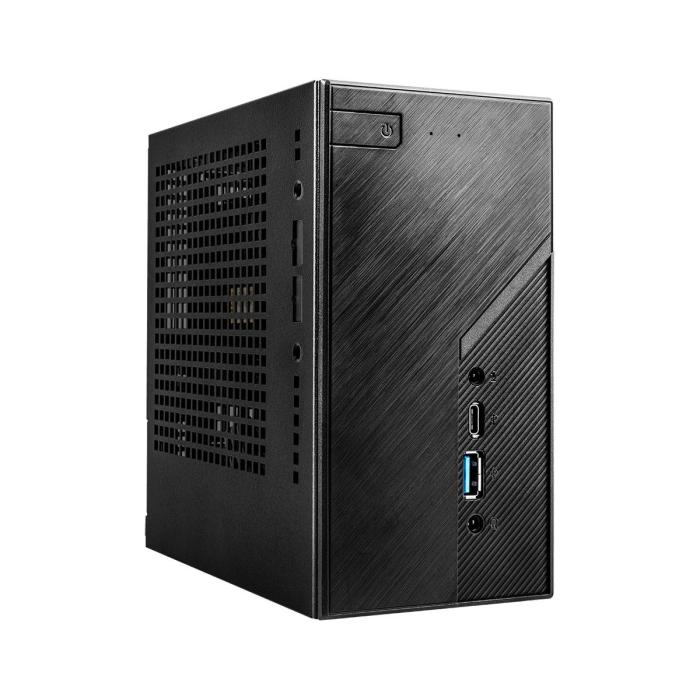

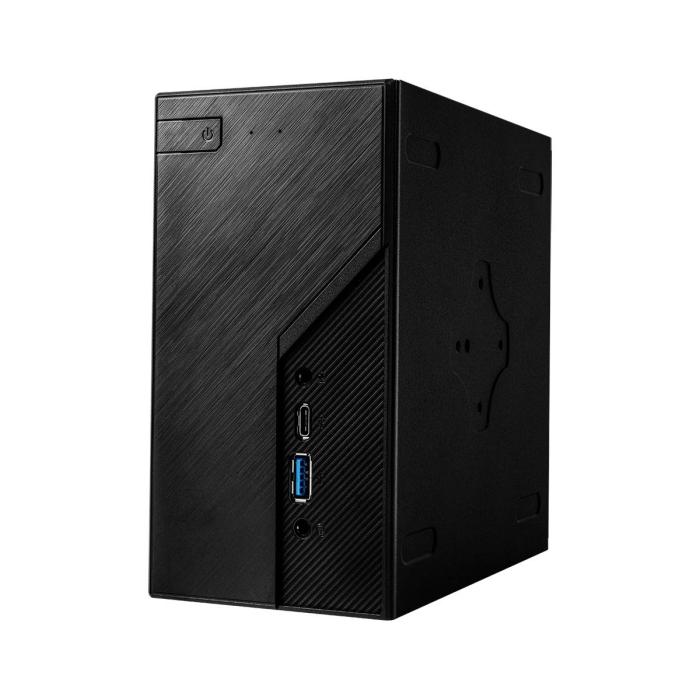

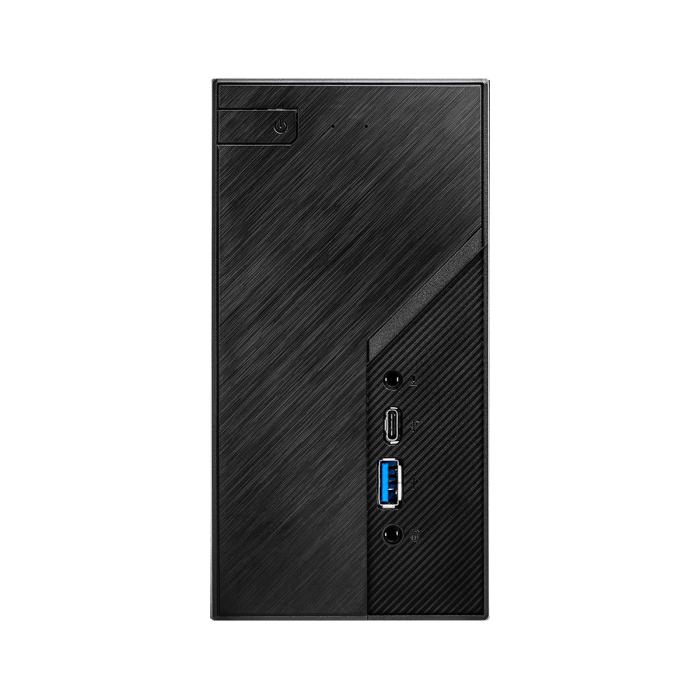

The Asrock DeskMini H470 in black is a compact 1.92-litre system that leverages the Intel H470 chipset to support LGA 1200 (Socket H5) processors, delivering up to 64 GB of DDR4 memory at 2933 MHz in dual-channel configuration via two SO-DIMM slots. This computer supports 2.5" HDD and SSD drives or M.2 units with PCI Express or Serial ATA III interfaces, including RAID 0 and 1 levels for managing internal storage. For network connectivity, it features Ethernet, while the remaining connectivity is handled through its DC input jack and the ports available on its chassis.
Specifications
Processor
- Built-in processor: No
Memory
- Memory slots type: SO-DIMM
- Number of memory slots: 2
- Maximum internal memory: 64 GB
- Supported memory clock speeds: 2933 MHz
- Supported memory types: DDR4-SDRAM
- Memory channels: Dual-channel
- Non-ECC: Yes
Storage
- Supported storage drive types: HDD & SSD
- Storage drive sizes supported: 2.5, M.2
- Storage drive interface: PCI Express, Serial ATA III
- RAID levels: 0, 1
Graphics
- On-board graphics card: No
Display
- Touchscreen: No
Audio
- Built-in speaker(s): No
Network
- Ethernet LAN: Yes
- Wi-Fi: No

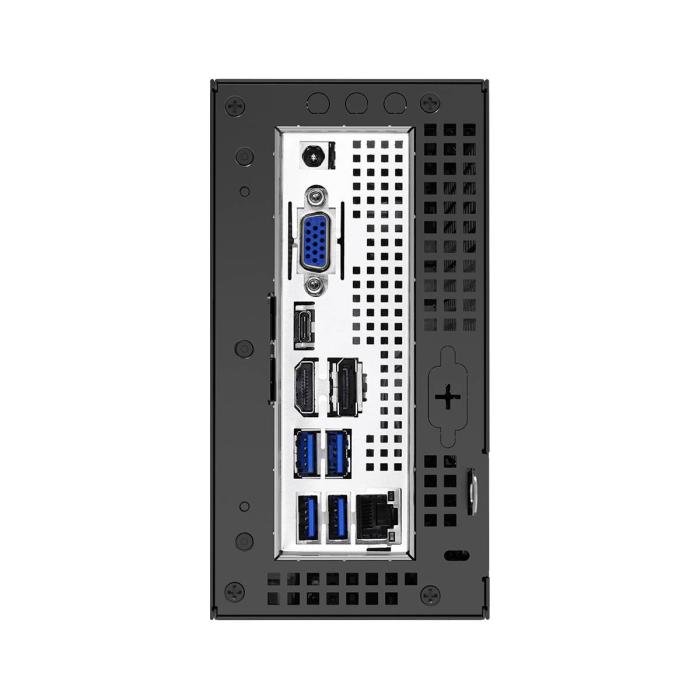

Ports & interfaces
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 5
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 2
- HDMI ports quantity: 1
- VGA (D-Sub) ports quantity: 1
- DisplayPorts quantity: 2
- DisplayPort version: 1.4
- Microphone in: Yes
- Headphone outputs: 1
- Ethernet LAN (RJ-45) ports: 1
- DC-in jack: Yes
Expansion slots
- Number of M.2 (M) slots: 2
Design
- Chassis type: 1.92L sized PC
- Product colour: Black
- On/off switch: Yes
- LED indicators: Yes
- Product type: Mini PC barebone
Performance
- Motherboard chipset: Intel H470
- Processor socket: LGA 1200 (Socket H5)
Logistics data
- Harmonized System (HS) code: 84713000
Power
- Power supply type: External AC adapter
- Power supply: 120 W
- AC input voltage: 100 - 240 V
- AC adapter output voltage: 19 V
Weight & dimensions
- Width: 80 mm
- Depth: 155 mm
- Height: 155 mm
