Description

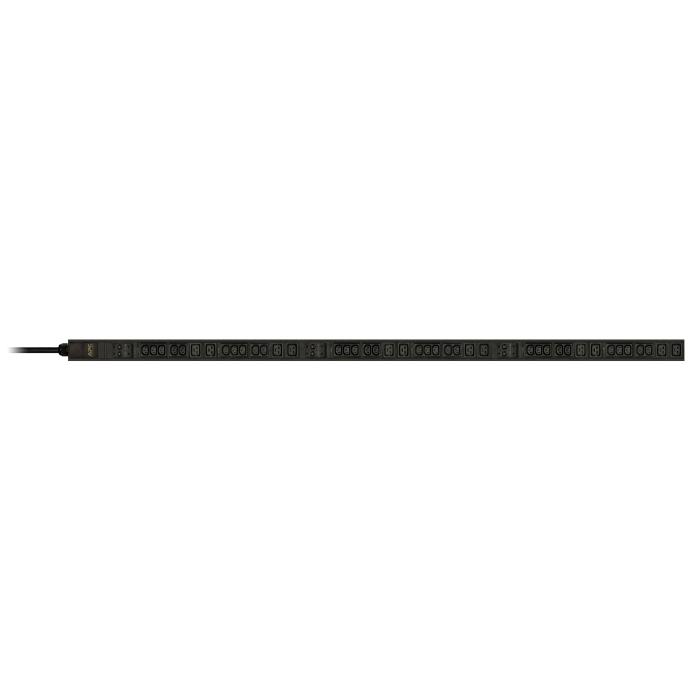

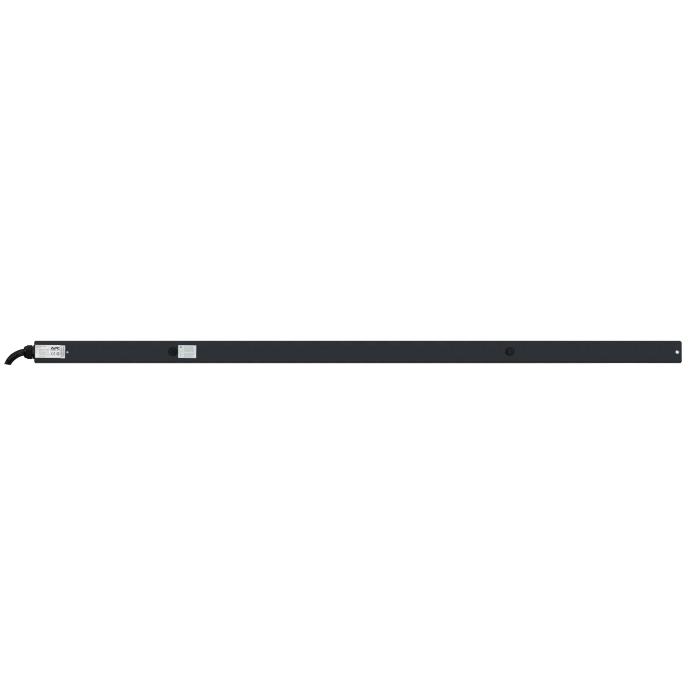

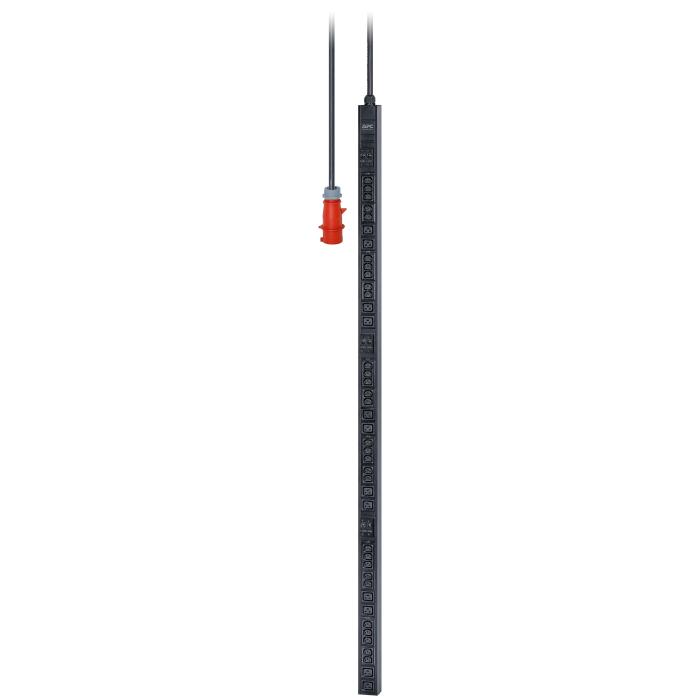

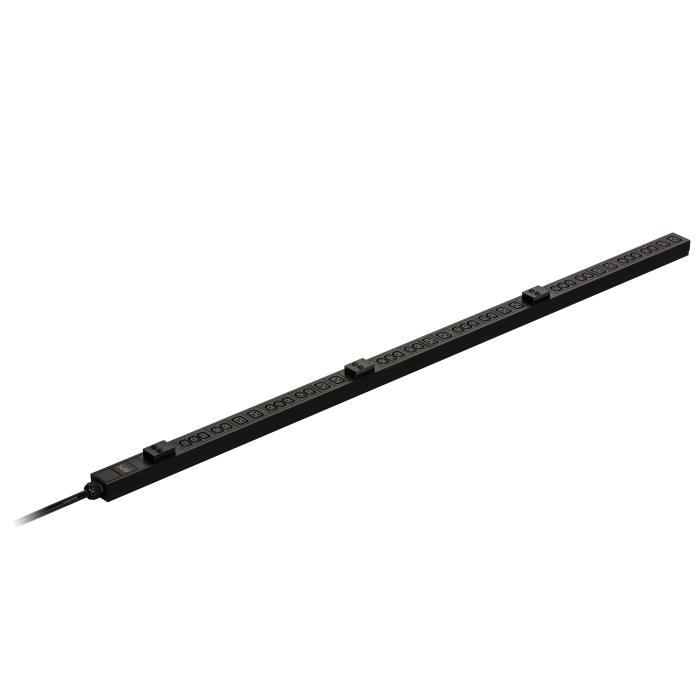

APC Easy Rack PDU, Basic, 0U, 3 Phase, 22kW, 230V, 32A, 30 x C13 and 12 x C19 outlets, IEC60309 3P+N+PE inlet, Basic, 0U, Three-phase, Vertical, Black, 42 AC outlet(s)
Specifications
Design
- PDU types: Basic
- Type: Three-phase
- Rack capacity: 0U
- Mounting: Vertical
- Product colour: Black
Ports & interfaces
- AC outlets quantity: 42 AC outlet(s)
- Power plug: IEC 60309
- AC outlet types: C13 coupler, C19 coupler
Features
- Cable length: 2 m
Power
- Maximum power: 22000 W
- Nominal input voltage: 400 V
- AC input frequency: 50 - 60 Hz
- Maximum current: 32 A
- Nominal output voltage: 230 V
- Load capacity: 22080 VA
- Maximum input current per phase: 32 A
Certificates
- Certification: CE, TUV
Operational conditions
- Operating temperature (T-T): -5 - 45 °C
- Storage temperature (T-T): -25 - 65 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage relative humidity (H-H): 5 - 95%
- Operating altitude: 0 - 3000 m
- Non-operating altitude: 0 - 15000 m
Weight & dimensions
- Width: 62 mm
- Depth: 44 mm
- Height: 1794 mm
- Weight: 5.14 kg
Packaging content
- Manual: Yes
Packaging data
- Package weight: 6.2 kg
- Package width: 160 mm
- Package depth: 110 mm
- Package height: 1950 mm
Logistics data
- Total carbon footprint (kg of CO2e): 127.67
