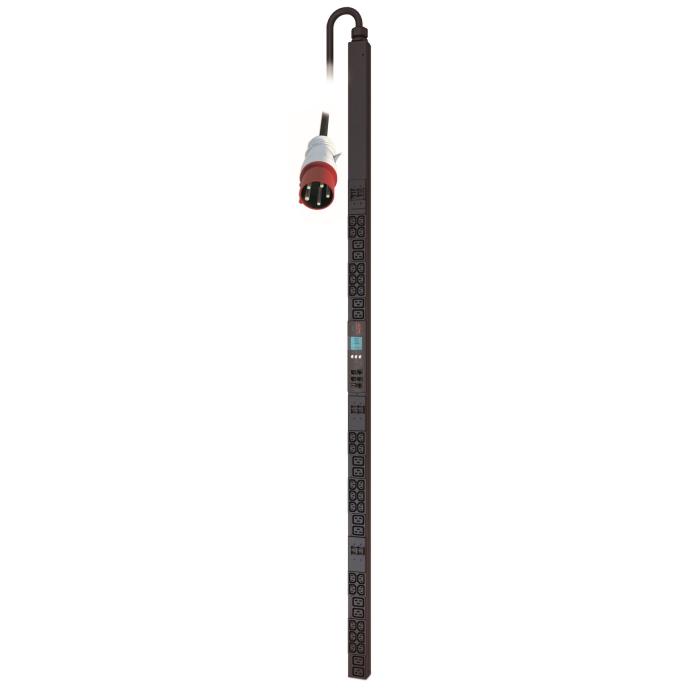

APC NetShelter Metered Rack PDU, 0U, 3PH, 22kW 230V 32A or 17.3kW 230V 24A, x30 C13 and x12 C19 outlets, IEC 309 3P+N+PE cord

$2,216.67
$2,216.67 without VAT

More info

Brand: APC
SKU: 76065 PRC: 98555 EAN: 731304289937 PN: AP8886

Description

APC NetShelter Metered Rack PDU, 0U, 3PH, 22kW 230V 32A or 17.3kW 230V 24A, x30 C13 and x12 C19 outlets, IEC 309 3P+N+PE cord, Metered, 0U, Vertical, Black, 42 AC outlet(s), C13 coupler, C19 coupler

Specifications

Design

  • PDU types: Metered
  • Rack capacity: 0U
  • Mounting: Vertical
  • Product colour: Black

Ports & interfaces

  • AC outlets quantity: 42 AC outlet(s)

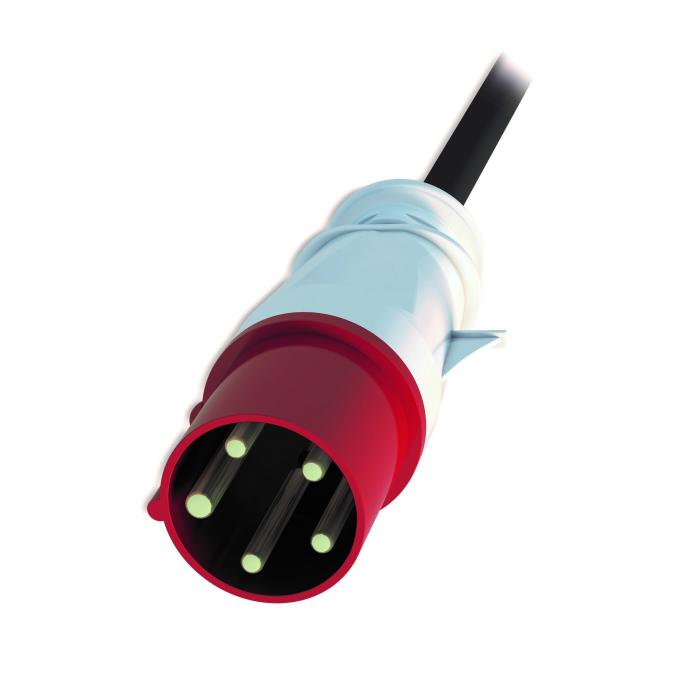

  • Power plug: IEC309
  • AC outlet types: C13 coupler, C19 coupler
  • Output connections: 30 x IEC 320 C13 12 x IEC 320 C19

Features

  • LED indicators: Yes
  • Cable length: 1.83 m

Management features

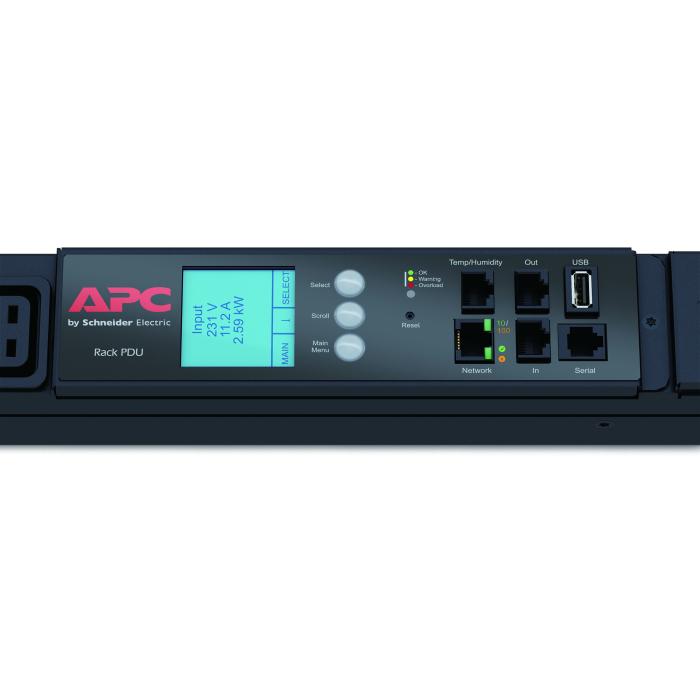

  • Monitoring: Current, Power, Voltage

Power

  • Nominal input voltage: 400 V
  • AC input frequency: 50 - 60 Hz
  • Maximum current: 32 A
  • Nominal output voltage: 230 V
  • Load capacity: 22080 VA
  • Maximum input current per phase: 32 A
  • Power protection features: Overload
  • Maximum power: 22000 W

Certificates

  • Compliance certificates: RoHS
  • Certification: EN 55022 A,EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, VCCI A, VDE REACH: No SVHCs

Operational conditions

  • Operating temperature (T-T): 0 - 55 °C
  • Storage temperature (T-T): -25 - 65 °C
  • Operating relative humidity (H-H): 5 - 95%
  • Storage relative humidity (H-H): 5 - 95%
  • Operating altitude: 0 - 3000 m
  • Non-operating altitude: 0 - 15000 m

Weight & dimensions

  • Width: 56 mm
  • Depth: 51 mm
  • Height: 1829 mm
  • Weight: 8.72 kg

Packaging data

  • Package weight: 11.6 kg
  • Package width: 170 mm
  • Package depth: 112 mm
  • Package height: 2050 mm

Logistics data

  • Total carbon footprint (kg of CO2e): 57837.86
