Description

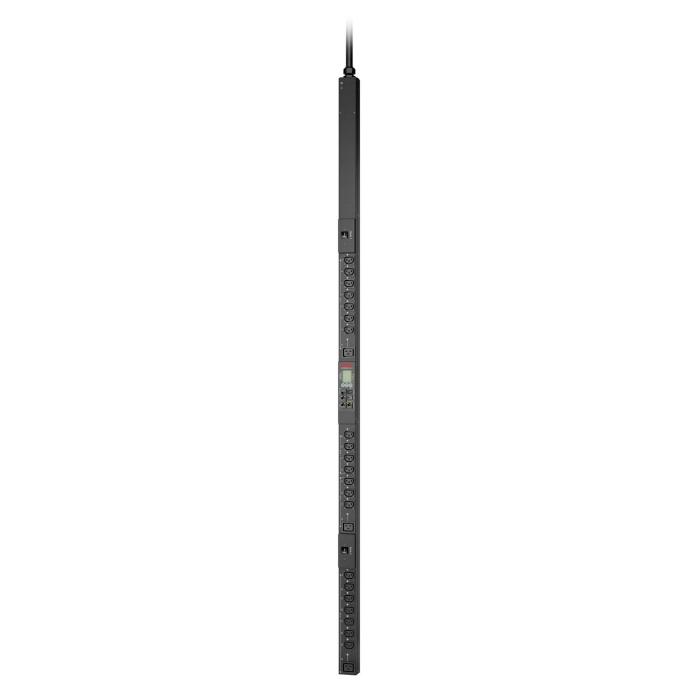

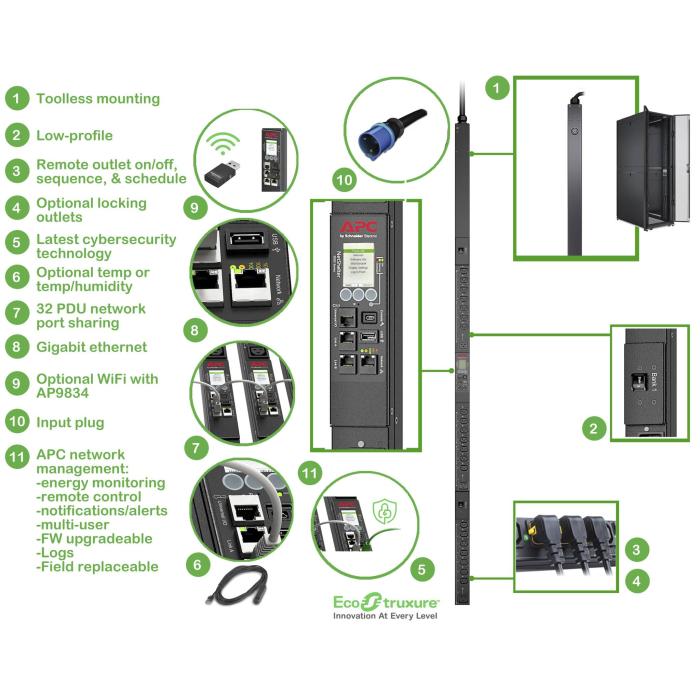

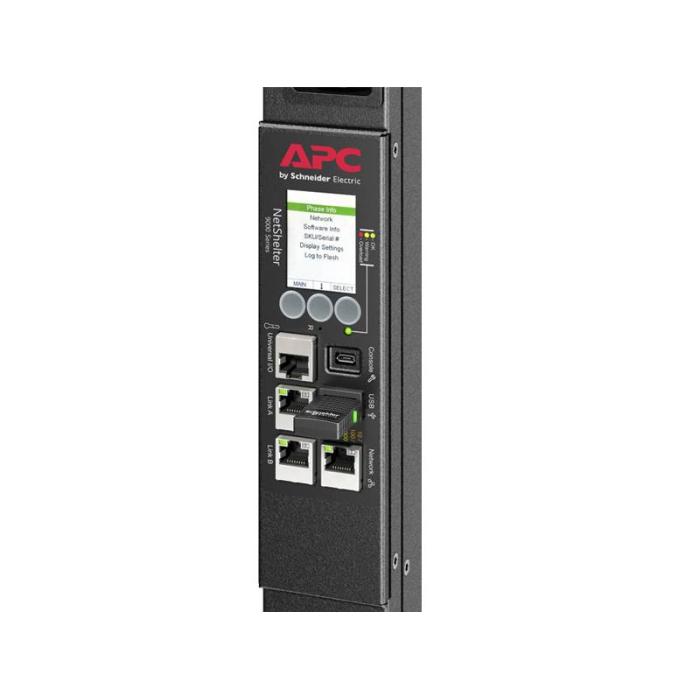

The APC APDU9953 switched PDU in a vertical 0U black format offers 24 AC outlets distributed between C13 and C19 couplers, with an IEC 60309 input connector and single-phase capacity of 32 A. Its maximum load reaches 7400 VA and 7360 W, with a nominal input voltage of 200, 208, 230 or 220-240 V and a frequency of 50-60 Hz, without an integrated power switch. Designed for vertical rack mounting, it supports an operating altitude of up to 3048 m and relative operating humidity from 0 to 95%, with EAC, EN 55022 class A, EN 55024, EN 61000-3-2, EN 61000-3-3, RCM and VDE certifications. Its black housing integrates network-based remote power-on control, ideal for managing power distribution in server environments.
Specifications
Design
- PDU types: Switched
- Type: Single-phase
- Rack capacity: 0U

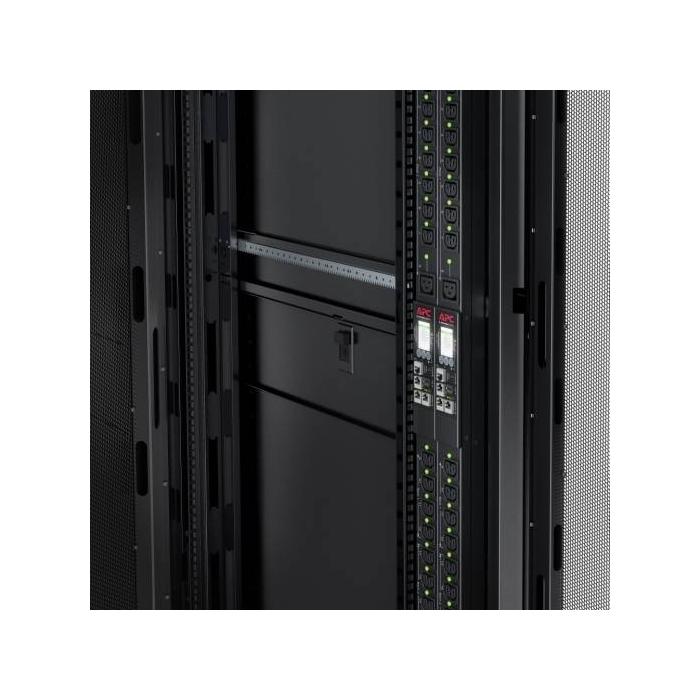

- Mounting: Vertical
- Product colour: Black
- On/off switch: No
Ports & interfaces
- AC outlets quantity: 24 AC outlet(s)

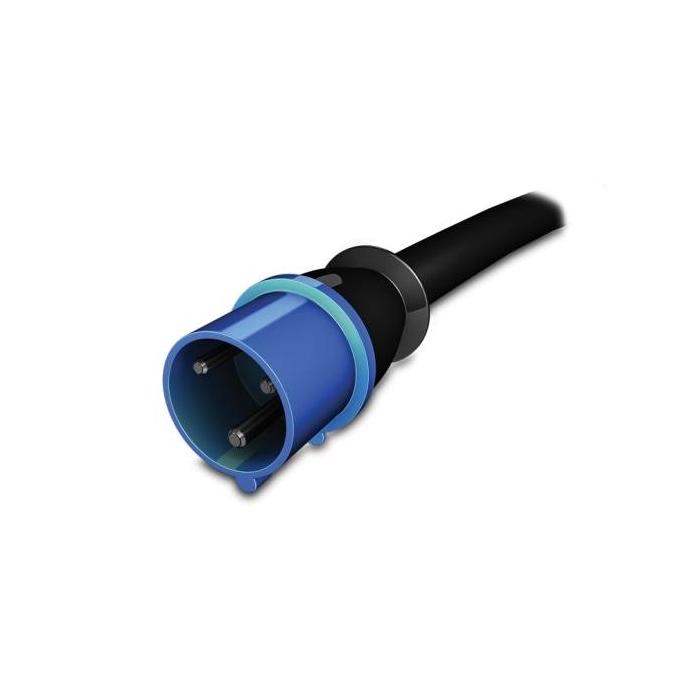

- Power plug: IEC 60309

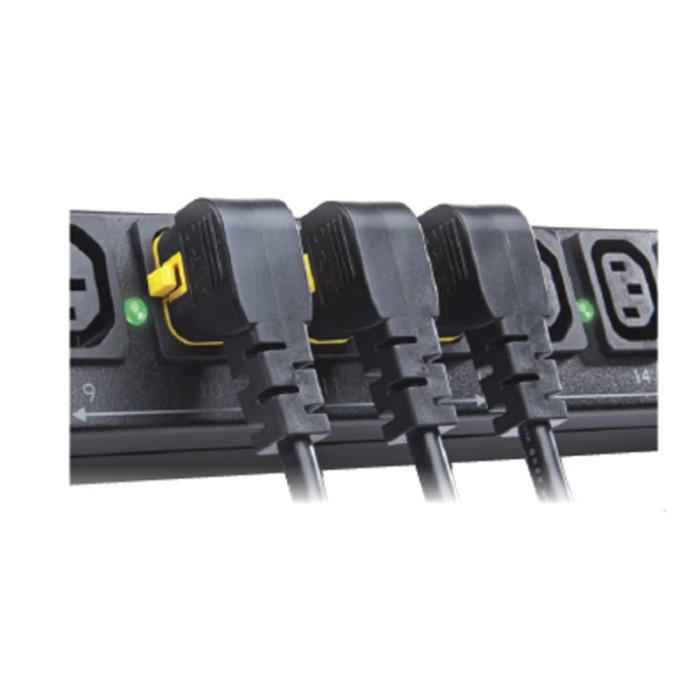

- AC outlet types: C13 coupler, C19 coupler
Power
- Nominal input voltage: 200, 208, 230, 220-240 V
- AC input frequency: 50 - 60 Hz
- Maximum current: 32 A
- Load capacity: 7400 VA
- Maximum power: 7360 W
Certificates
- Certification: EAC, EN 55022 class A, EN 55024, EN 61000-3-2, EN 61000-3-3, RCM, VDE
Operational conditions
- Operating temperature (T-T): -5 - 45 °C
- Storage temperature (T-T): -25 - 65 °C
- Operating relative humidity (H-H): 0 - 95%
- Storage relative humidity (H-H): 5 - 95%
- Operating altitude: 0 - 3048 m
- Non-operating altitude: 0 - 15240 m
Weight & dimensions
- Width: 56 mm
- Depth: 46 mm
- Height: 1829 mm
- Weight: 7.34 kg
Packaging data
- Package weight: 9.95 kg
- Package width: 165 mm
- Package depth: 124 mm
- Package height: 2040 mm
