Description

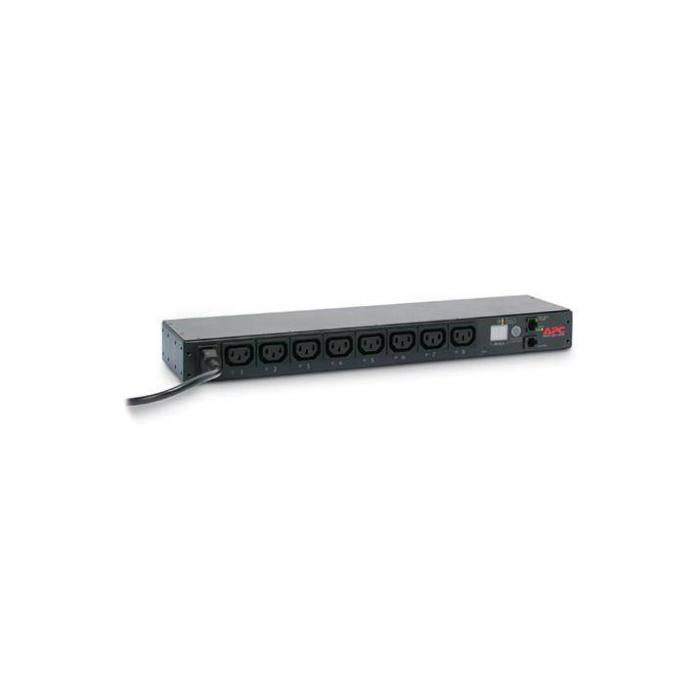

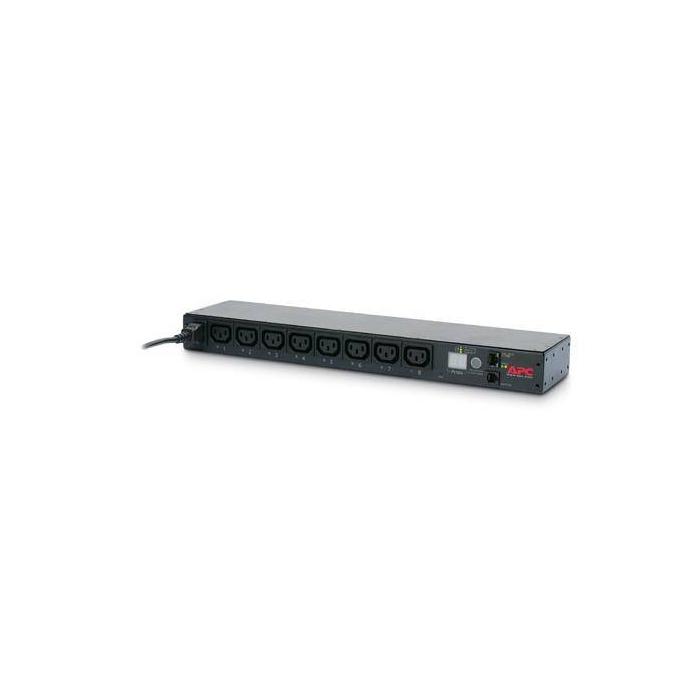

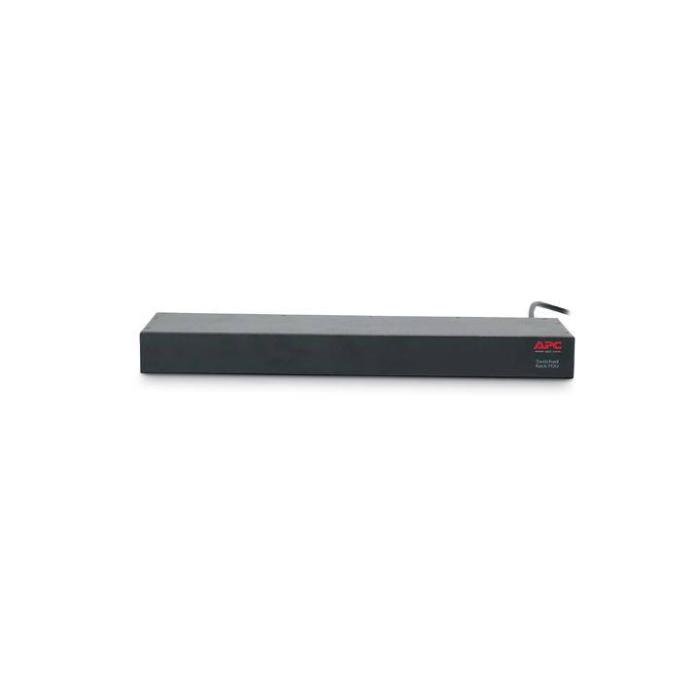

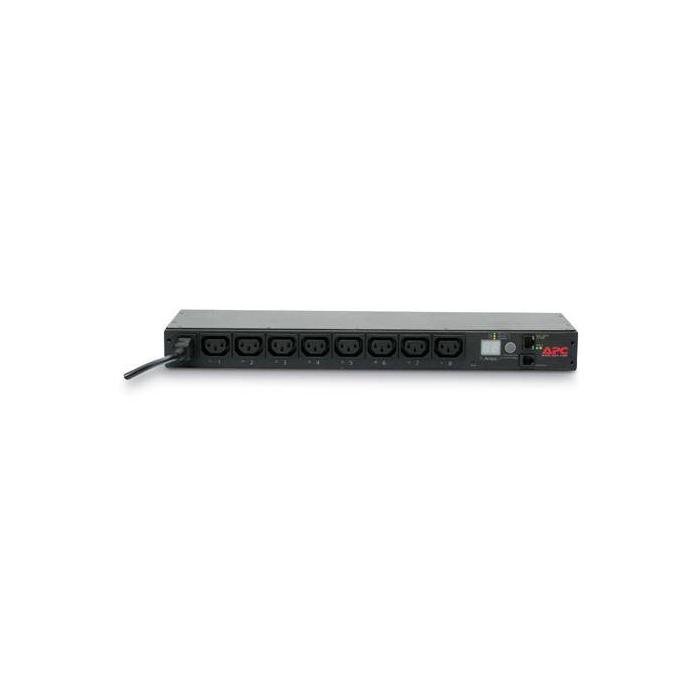

NetShelter Switched Rack PDU, 1U, 1PH, 2.3kW 230V 10A or 2.5kW 208V 12A, 8 C13 outlets, C14 cord
Specifications
Design
- PDU types: Metered, Switched
- Rack capacity: 0U/1U
- Mounting: Horizontal/Vertical
- Product colour: Black
Ports & interfaces
- AC outlets quantity: 8 AC outlet(s)
- Power plug: C14 coupler
- AC outlet types: C13 coupler
- Input connection type: IEC-320 C14
Features
- Cable length: 1.98 m
Management features
- Monitoring: Current, Power, Voltage
- Outlet control: Lock-out, Recycle, Turn off, Turn on
Power
- Nominal input voltage: 200-230 V
- AC input frequency: 50 - 60 Hz
- Maximum current: 10 A
- Nominal output voltage: 208-230 V
- Load capacity: 2300 VA
- Maximum input current per phase: 10 A
- Maximum total current draw per phase: 10 A
- Maximum power: 2300 W
Certificates
- Compliance certificates: RoHS
- Certification: cUL Listed, CE, CSA, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, GOST, IRAM, MIC, UL 60950, UL Listed, VDE, VCCI, R
Operational conditions
- Operating temperature (T-T): 0 - 45 °C
- Storage temperature (T-T): -25 - 65 °C
- Operating relative humidity (H-H): 0 - 95%
- Storage relative humidity (H-H): 0 - 95%
- Operating altitude: 0 - 3000 m
- Non-operating altitude: 1 - 15000 m
Weight & dimensions
- Width: 445 mm
- Depth: 108 mm
- Height: 44 mm
- Weight: 2.27 kg
Packaging content
- Packaging content: Installation Guide, Rack Mounting Brackets, User Manual
Packaging data
- Package weight: 3.45 kg
- Package width: 470 mm
- Package depth: 343 mm
- Package height: 70 mm
Logistics data
- Total carbon footprint (kg of CO2e): 915.89
