Description

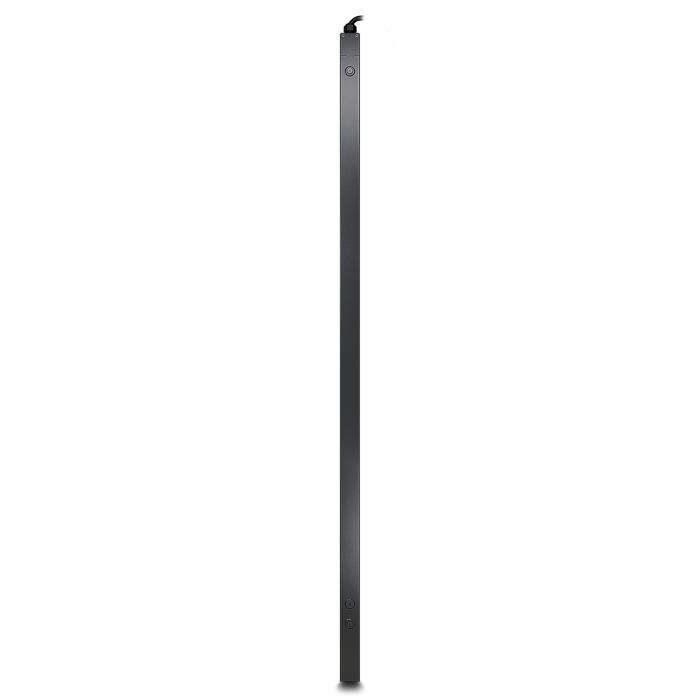

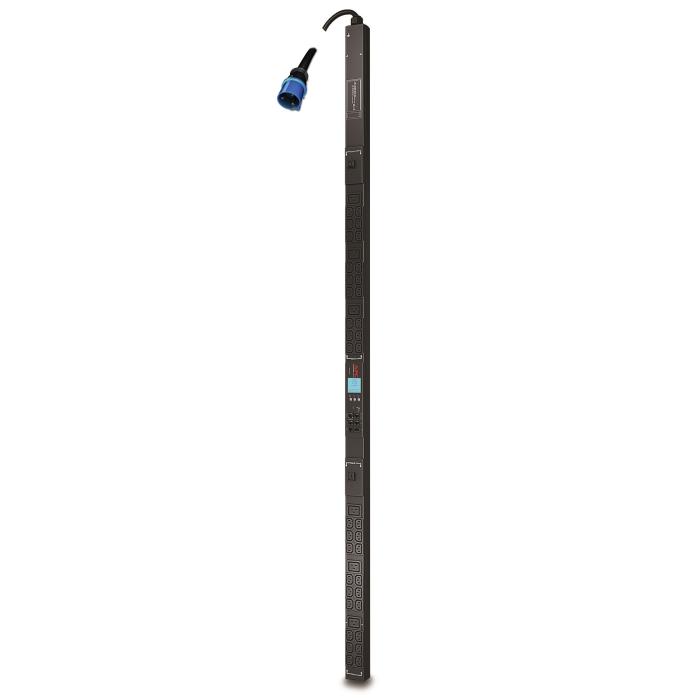

APC AP8853 single-phase and regulated PDU with 42 AC outlets, designed for vertical mounting in 0U racks in black finish. This power distribution unit offers 36 IEC 320 C13 output connections and 6 IEC 320 C19, with input via a 32A 2P+E IEC 309 connector. Its power cable measures 3 metres, supports a maximum power of 7680 W and a load of 7680 VA, with a total current per phase of 32 A and a nominal output voltage of 230 V. It incorporates current, power and voltage monitoring to supervise energy consumption, operating with an input frequency of 50 to 60 Hz.
Specifications
Design
- PDU types: Metered
- Type: Single-phase
- Rack capacity: 0U
- Mounting: Vertical
- Product colour: Black
Ports & interfaces
- AC outlets quantity: 42 AC outlet(s)
- Power plug: IEC309
- AC outlet types: C13 coupler, C19 coupler

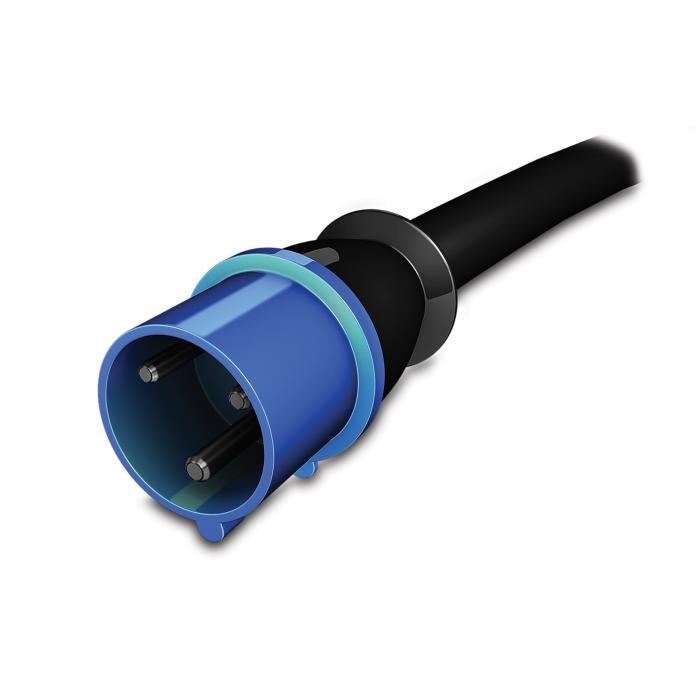

- Input connection type: IEC 309 32A 2P+E
- Output connections: 36x IEC 320 C13 6x IEC 320 C19
Features
- Cable length: 3 m
Management features
- Monitoring: Current, Power, Voltage
Power
- AC input frequency: 50 - 60 Hz
- Nominal output voltage: 230 V
- Load capacity: 7680 VA
- Maximum input current per phase: 32 A
- Maximum total current draw per phase: 32 A
- Maximum power: 7680 W
Certificates
- Certification: RoHS, REACH IEC 60950,VDE
Operational conditions
- Operating temperature (T-T): 5 - 45 °C
- Storage temperature (T-T): -25 - 65 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage relative humidity (H-H): 5 - 95%
Weight & dimensions
- Width: 56 mm
- Depth: 44 mm
- Height: 1791 mm
- Weight: 6.93 kg
Logistics data
- Total carbon footprint (kg of CO2e): 28921.23
