Description

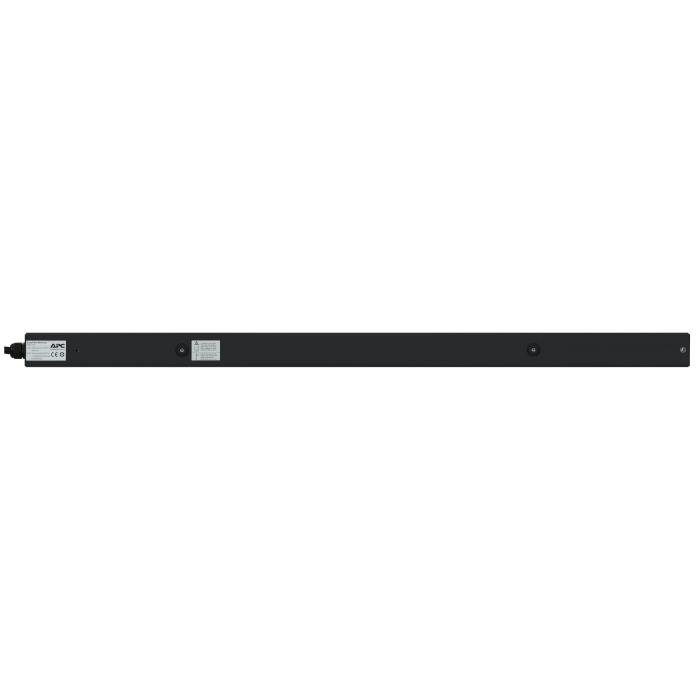

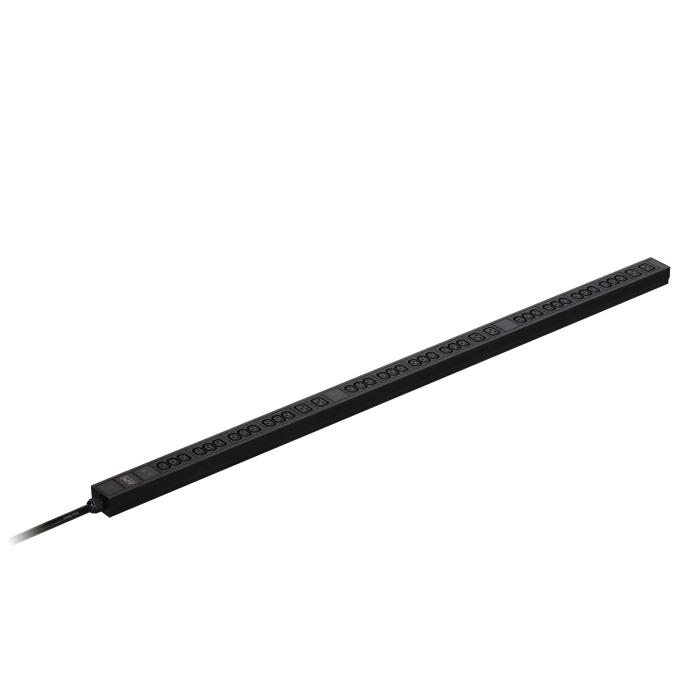

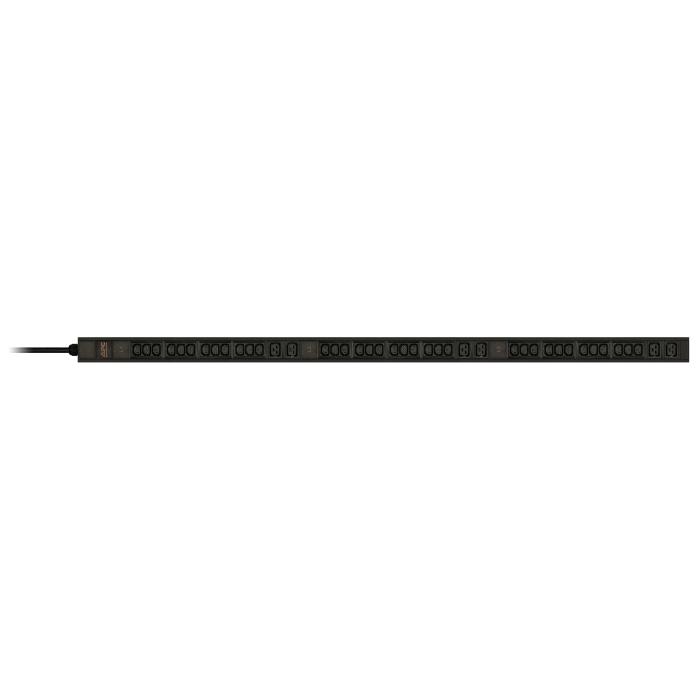

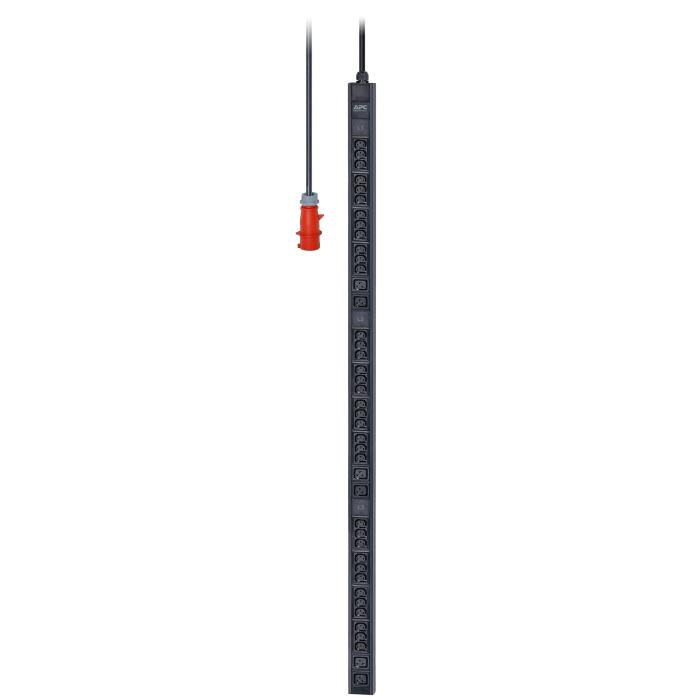

The APC EPDU1216B PDU is a basic power distribution unit with vertical mounting and 0U form factor, featuring a black aluminium housing for three-phase rack environments. It offers 42 AC outlets combining C13 and C19 couplers, with input connection via an IEC 60309 connector and a 2.5-metre cable. Its nominal input voltage is 400 V, while the output is set at 230 V, supporting a maximum current of 16 A per phase and a load capacity of 11000 VA, equivalent to 11000 W, with an input frequency of 50-60 Hz. Without an integrated switch, its vertical design optimises rack space and manages power for multiple devices in professional IT installations.
Specifications
Design
- PDU types: Basic
- Type: Three-phase
- Rack capacity: 0U
- Mounting: Vertical
- Housing material: Aluminium
- Product colour: Black
- On/off switch: No
Ports & interfaces
- AC outlets quantity: 42 AC outlet(s)
- Power plug: IEC 60309
- AC outlet types: C13 coupler, C19 coupler
Features
- Cable length: 2.5 m
Power
- Nominal input voltage: 400 V
- AC input frequency: 50 - 60 Hz
- Maximum current: 16 A
- Nominal output voltage: 230 V
- Load capacity: 11000 VA
- Maximum input current per phase: 16 A
- Maximum power: 11000 W
Certificates
- Certification: CE, TUV
Operational conditions
- Operating temperature (T-T): -5 - 45 °C
- Storage temperature (T-T): -25 - 65 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage relative humidity (H-H): 5 - 95%
- Operating altitude: 0 - 3000 m
- Non-operating altitude: 0 - 15000 m
Weight & dimensions
- Height: 1506 mm
- Weight: 3.08 kg
- Width: 62 mm
- Depth: 44 mm
Packaging content
- Manual: Yes
Packaging data
- Package weight: 4.28 kg
- Package width: 160 mm
- Package depth: 110 mm
- Package height: 1660 mm
Logistics data
- Total carbon footprint (kg of CO2e): 78.59
