Allied Telesis GS980MX Managed L3 Gigabit Ethernet (10/100/1000) 1U Grey

Few units

Product 1 image

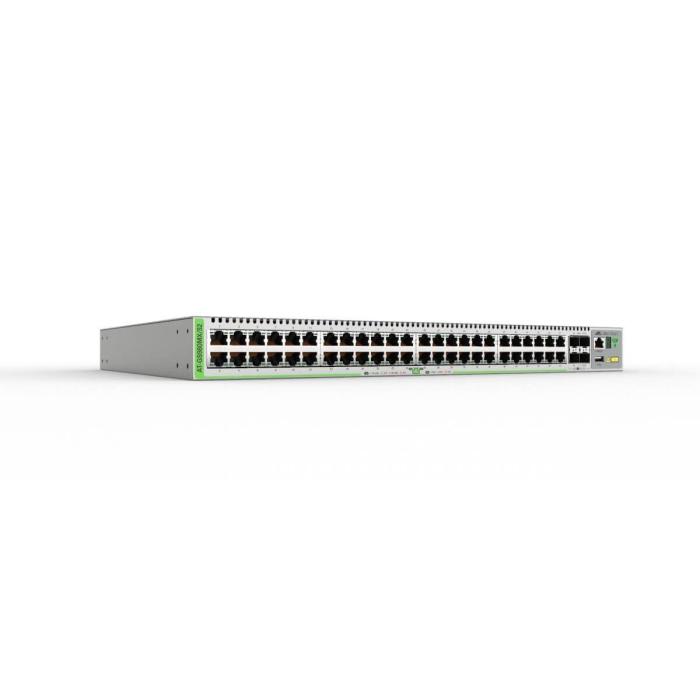

Allied Telesis GS980MX Managed L3 Gigabit Ethernet (10/100/1000) 1U Grey

1,740.00 €

1,438.02 € without VAT

Amount

Brand: ALLIED TELESIS

SKU: 117013 PRC: 452107 EAN: 767035216775 PN: AT-GS980MX/52-50

Description

AT-GS980MX - 48-port 10/100/1000T stackable switch with 4 SFP+ ports and a single fixed power supply, European power cord

Specifications

Management features

Switch type: Managed
Switch layer: L3
Quality of Service (QoS) support: Yes
Web-based management: Yes
Traffic classification: Yes
Traffic shaping: Yes
Configuring Location Settings (CLI): Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Installed SFP+ modules quantity: 4

Network

Networking standards: IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support: Yes
Port mirroring: Yes
Full duplex: Yes
IP routing: Yes
Policy-based routing: Yes
Flow control support: Yes
Link aggregation: Yes
Broadcast storm control: Yes
Spanning tree protocol: Yes
VLAN support: Yes
Virtual LAN features: Port-based VLAN, Private VLAN, Voice VLAN
Number of VLANs: 4094

Data transmission

Switching capacity: 176 Gbit/s
Forwarding rate: 130.9 Mpps
MAC address table: 16000 entries
Latency (10-100 Mbps): 8.29 µs
Latency (1 Gbps): 7.63 µs
Latency (10 Gbps): 1.63 µs
Jumbo frames support: Yes

Security

DHCP features: DHCP client, DHCP snooping
Access Control List (ACL): Yes
IGMP snooping: Yes
MAC address filtering: Yes
SSH/SSL support: Yes
Loop protection: Yes
BPDU filtering/protection: Yes
Authentication: MAC-based authentication

Multicast features

Multicast support: Yes

Protocols

Management protocols: SNMP

Design

Rack mounting: Yes
Stackable: Yes
Form factor: 1U
Product colour: Grey

Performance

Memory type: DDR3-SDRAM
Internal memory: 16384 MB
Flash memory: 256 MB
Noise level: 42 dB

Power

Power source: AC
Power supply included: Yes
Power consumption (max): 60 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): No

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -25 - 70 °C
Operating relative humidity (H-H): 5 - 90%
Storage relative humidity (H-H): 5 - 95%
Operating altitude: 0 - 3000 m
Non-operating altitude: 0 - 4000 m
Heat dissipation: 205 BTU/h

Weight & dimensions

Width: 441 mm
Depth: 323 mm
Height: 44 mm
Weight: 4.8 kg

Packaging content

Cables included: AC

Packaging data

Package width: 563 mm
Package depth: 534 mm
Package height: 128 mm
Package weight: 6.8 kg
