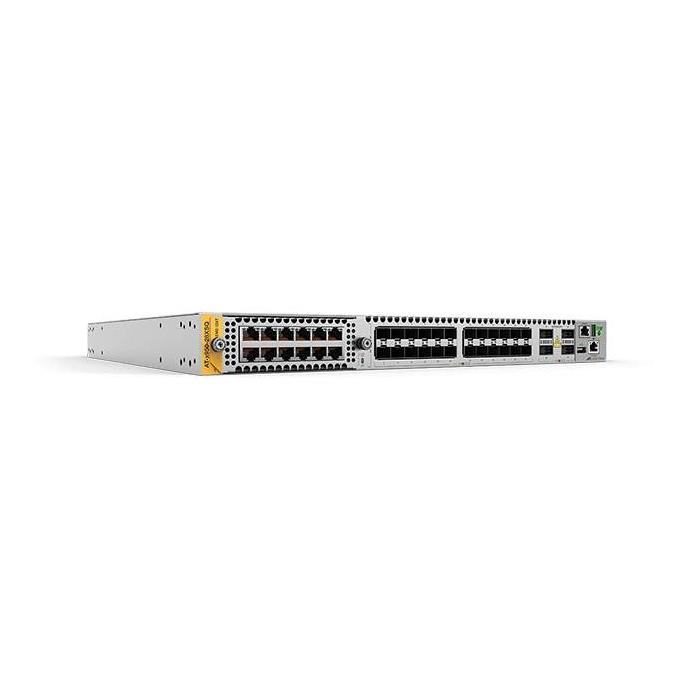

Name: Allied Telesis AT-x950-28XSQ-B01 Managed L3 Grey
Brand: ALLIED TELESIS
Availability: OutOfStock

Allied Telesis AT-x950-28XSQ-B01 Managed L3 Grey

Not avaliable

Allied Telesis AT-x950-28XSQ-B01 Managed L3 Grey. More info

Amount

Brand: ALLIED TELESIS

SKU: 114307 PRC: 272508 EAN: 767035218144 PN: AT-X950-28XSQ-B01

Description

Specifications

Management features

Switch type: Managed
Switch layer: L3
Quality of Service (QoS) support: Yes
Web-based management: Yes
Configuring Location Settings (CLI): Yes
System event log: Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports type: No
SFP+ module slots quantity: 24
QSFP+ module slots quantity: 4
USB 2.0 ports quantity: 1

Network

Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ac, IEEE 802
10G support: Yes
Port mirroring: Yes
IP routing: Yes
Policy-based routing: Yes
Routing entries: 64
Link aggregation: Yes
Spanning tree protocol: Yes
VLAN support: Yes
Virtual LAN features: Private VLAN, Stacked VLAN, Tagged VLAN, Voice VLAN
Number of VLANs: 4000

Data transmission

Switching capacity: 1920 Gbit/s
Forwarding rate: 1190 Mpps
MAC address table: 96000 entries
Latency (10 Gbps): 0.8 µs
Jumbo frames support: Yes
Jumbo frames: 10000
Packet buffer memory: 16 MB

Security

DHCP features: DHCP client, DHCP relay, DHCP server, DHCPv6 client, DHCPv6 relay, DHCPv6 server
Access Control List (ACL): Yes
IGMP snooping: Yes
Security algorithms: EAP, HTTPS, MD5, PEAP, SSH, SSH-2, SSL/TLS, TTLS
MAC address filtering: Yes
Loop protection: Yes
BPDU filtering/protection: Yes
Authentication: MAC-based authentication, Web-based authentication

Multicast features

Multicast support: Yes
Multicast MAC address table: 8000 entries

Protocols

Routing protocols: BGP, OSPF, RIP, RIP-2

Design

Rack mounting: Yes
Stackable: Yes
Product colour: Grey
LED indicators: Yes
Electromagnetic compatibility: EN55032 A, FCC A, VCCI A

Performance

Memory type: DDR-SDRAM
Internal memory: 4096 MB
Flash memory: 4000 MB
Noise level: 63.4 dB

Power

AC input voltage: 100 - 240 V
AC input frequency: 47/63 Hz
Power consumption (max): 231.2 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): No

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -25 - 70 °C
Operating relative humidity (H-H): 5 - 90%
Storage relative humidity (H-H): 5 - 95%
Operating altitude: 0 - 3050 m
Heat dissipation: 789 BTU/h

Weight & dimensions

Width: 440 mm
Depth: 482 mm
Height: 44 mm
Weight: 7.2 kg

Packaging data

Package weight: 9.2 kg

Certificates

Certification: EN55024, EN61000-3-2 UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950 UL, cUL, TUV RoHS

Logistics data

Harmonized System (HS) code: 85176990
