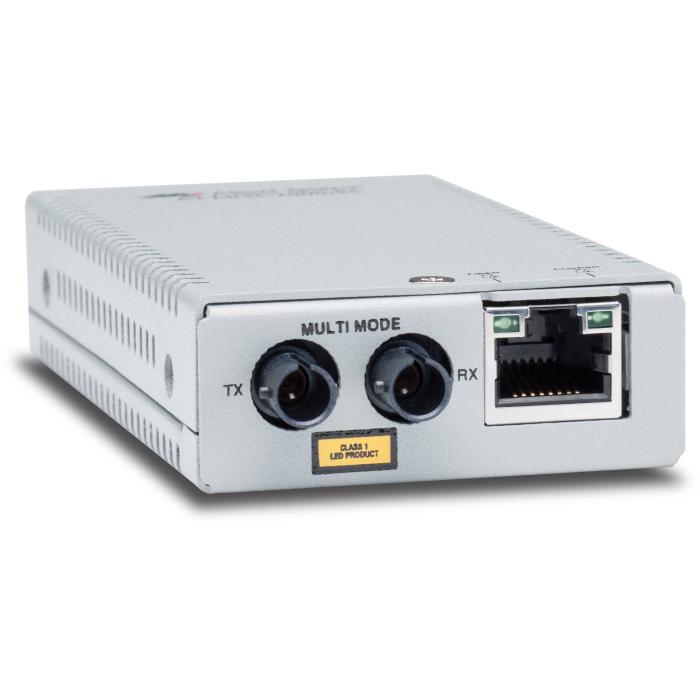

Allied Telesis AT-MMC2000/ST-960 network media converter 1000 Mbit/s 850 nm Multi-mode Grey

Not avaliable

Allied Telesis AT-MMC2000/ST-960 network media converter 1000 Mbit/s 850 nm Multi-mode Grey.   More info

Brand: ALLIED TELESIS
SKU: 85945 PRC: 299178 EAN: 767035218625 PN: AT-MMC2000/ST-960

Description

Specifications

Network

  • Maximum data transfer rate: 1000 Mbit/s
  • Converter input interface: 10Base-T, 100Base-TX, 1000Base-T
  • Converter output interface: 1000Base-SX
  • Networking standards: IEEE 802.1Q
  • Ethernet interface type: Gigabit Ethernet
  • Ethernet LAN data rates: 10, 100, 1000 Mbit/s
  • Fiber ethernet cabling technology: 1000BASE‑SX
  • Jumbo frames support: Yes
  • Jumbo frames: 10000
  • VLAN support: Yes
  • Auto MDI/MDI-X: Yes
  • Store-and-forward: Yes
  • Duplex system: Full

Performance

  • Maximum transfer distance: 500 m
  • Wavelength: 850 nm
  • Fiber mode structure: Multi-mode
  • Fiber cable diameters supported (core/cladding): 50/125, 62.5/125 µm
  • Tx power (min): -9.5 dBmW
  • Tx power (max): 4 dBmW
  • Rx power (min): -17 dBmW
  • Rx power (max): -3 dBmW

Features

  • Internal: No
  • LED indicators: LAN, Power, System
  • Product colour: Grey

Ports & interfaces

  • Connectivity technology: Wired
  • Ethernet LAN (RJ-45) ports: 1
  • Fiber ports quantity: 2
  • Fiber optic connector: ST
  • DC-in jack: Yes

Power

  • Input voltage: 12 V
  • Input current: 0.14 A
  • Output voltage: 0.14 V
  • Power consumption (typical): 1.7 W
  • Power over Ethernet (PoE): Yes

Weight & dimensions

  • Width: 549 mm
  • Depth: 101.6 mm
  • Height: 21.8 mm
  • Weight: 170 g

Operational conditions

  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -30 - 70 °C
  • Operating relative humidity (H-H): 5 - 95%
  • Storage relative humidity (H-H): 5 - 95%
  • Operating altitude: 0 - 3048 m

Packaging content

  • User guide: Yes
  • Manual: Yes
  • Quick installation guide: Yes

Certificates

  • Safety: FCC Class A, EN55022 Class A, CISPR 22 Class A, C-TICK, VCCI
  • Certification: CE, EN55024, EN61000-3-2, EN61000-3-3

Logistics data

  • Harmonized System (HS) code: 85176990
