Allied Telesis 2914SX/SC Internal Fiber 1000 Mbit/s

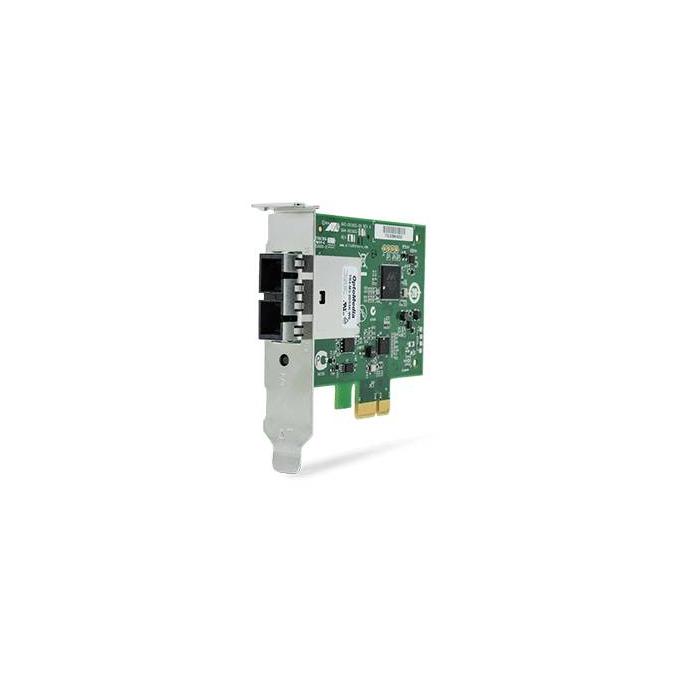

Product 1 image

Allied Telesis 2914SX/SC Internal Fiber 1000 Mbit/s

Not avaliable

Amount

Brand: ALLIED TELESIS

SKU: 114782 PRC: 299180 EAN: 767035210605 PN: AT-2914SX/SC-901

Description

Specifications

Ports & interfaces

Connectivity technology: Wired
Host interface: PCI Express
Interface: Fiber
Fiber ports quantity: 2
Fiber optic connector: SC

Network

Maximum data transfer rate: 1000 Mbit/s
Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.2, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3z
Security algorithms: SNMP
Wake-on-LAN ready: Yes
Jumbo frames support: Yes
Auto-negotiation: Yes
Jumbo frames: 9600
Quality of Service (QoS) support: Yes
Load balancing system: Yes

Design

Internal: Yes
LED indicators: Yes
Certification: UL, FCC/EN55022 Class A, TUV, EN55024, CE, C-TICK, VCCI

Power

Power consumption (typical): 1.7 W

System requirements

Windows operating systems supported: Windows 10, Windows 7
Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2016, Windows Server 2019

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -25 - 70 °C
Operating relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 88 mm
Height: 69 mm
Weight: 68 g

Technical details

Compliance certificates: RoHS

Logistics data

Harmonized System (HS) code: 85176990

Other features

Flow control support: Yes
