Description
Expand your laptop's connectivity with the AISENS USB-C dock, a grey accessory measuring 43 x 16 x 98 mm that concentrates the ports your device lacks into a single unit. Its host interface is USB 3.2 Gen 1 Type-C and the connection is wired, with a compact design that is easy to carry. It features an HDMI port with a maximum resolution of 3840 x 2160 pixels, compatible with 4K Ultra HD content and with HDCP support. Network connection is handled by an RJ-45 Ethernet port with speeds of 10, 100 and 1000 Mbit/s, compliant with the IEEE 802.3, 802.3ab, 802.3az, 802.3u and 802.3x standards. It has three USB Type-A ports and one USB Type-C port, all of them USB 3.2 Gen 1, with a data transfer rate of 5 Gbit/s. USB Power Delivery reaches 100 W, so you can power your laptop while using the rest of the connections.
Specifications
Ports & interfaces
- Connectivity technology: Wired
- Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
- USB Power Delivery (USB PD): Yes
- USB Power Delivery up to: 100 W
- HDMI ports quantity: 1
- Microphone in: No
- HDCP: Yes
Network
- Ethernet LAN: Yes
- Ethernet LAN (RJ-45) ports: 1
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Performance
- Card reader integrated: No
- Data transfer rate: 5 Gbit/s
- HD type: 4K Ultra HD
- Maximum digital resolution: 3840 x 2160 pixels
- Maximum refresh rate: 30 Hz
- Product colour: Grey
- LED indicators: Yes
- Plug and Play: Yes
Power
- Power source type: USB
- Power connector: USB Type-C
- Power plug type: No plug
- USB cable length: 0.15 m
Software
- Windows operating systems supported: Windows 10, Windows 11
- Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.7.5 Lion, Mac OS
- Linux operating systems supported: Yes

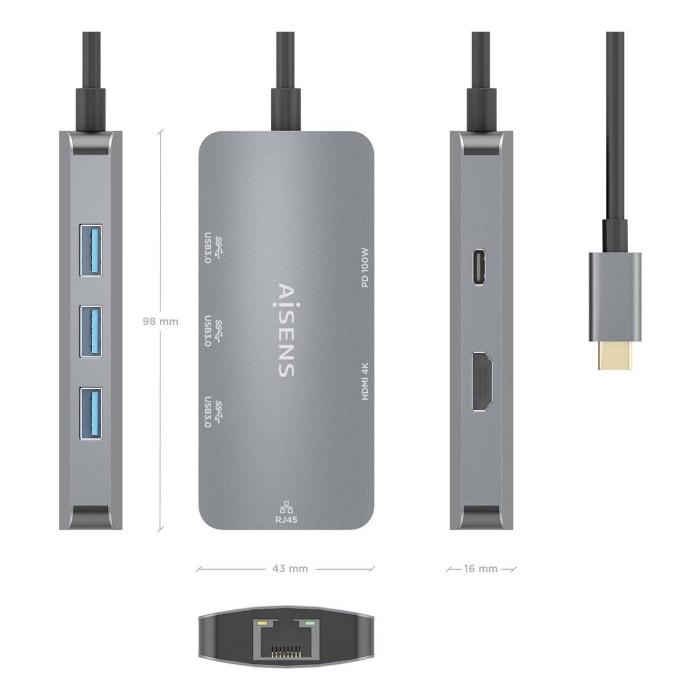

Weight & dimensions
- Width: 43 mm
- Depth: 98 mm
- Height: 16 mm
Packaging data
- Quantity per pack: 1 pc(s)
- Package width: 173 mm
- Package depth: 103 mm
- Package height: 20 mm
- Package weight: 103 g
Packaging content
- Manual: Yes
Technical details
- Package volume: 356.38 cm³
- Master (outer) case volume: 20383 cm³
- Compliance certificates: CE, RoHS
Logistics data
- Products per master (outer) case: 40 pc(s)
- Master (outer) case width: 220 mm
- Master (outer) case length: 425 mm
- Master (outer) case height: 218 mm
- Master (outer) case gross weight: 4.12 kg
- Products per shipping (inner) case: 40 pc(s)
Other features
- Chipset: RTL8153B
