Description

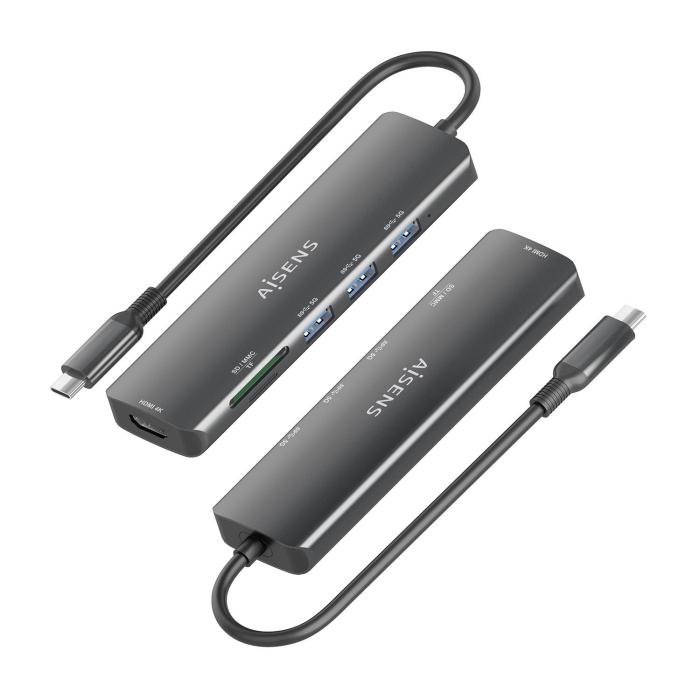

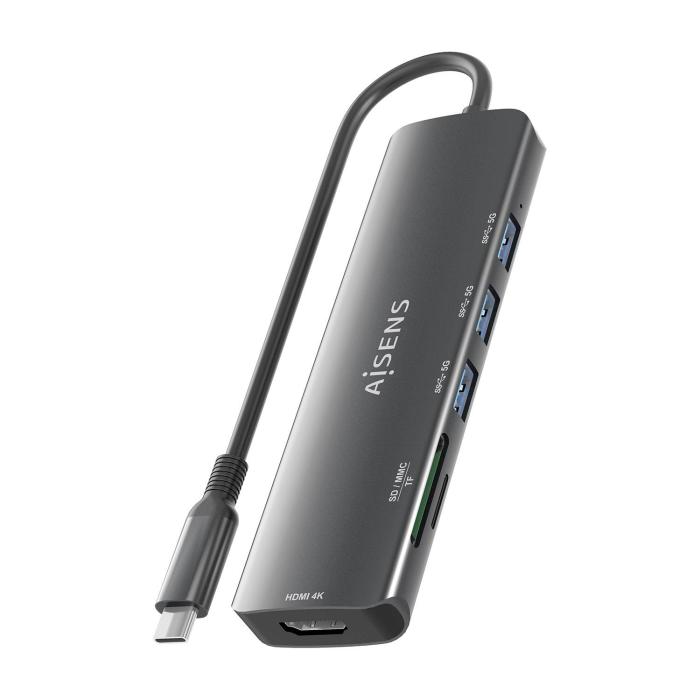

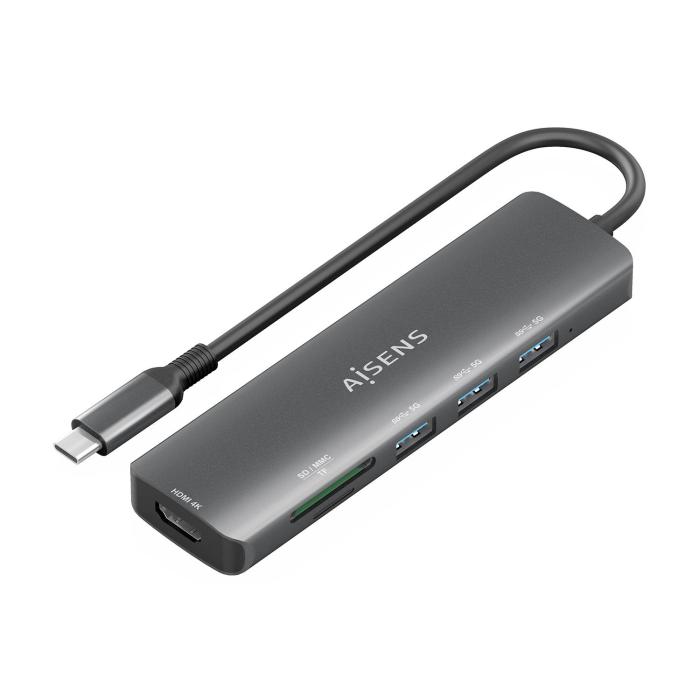

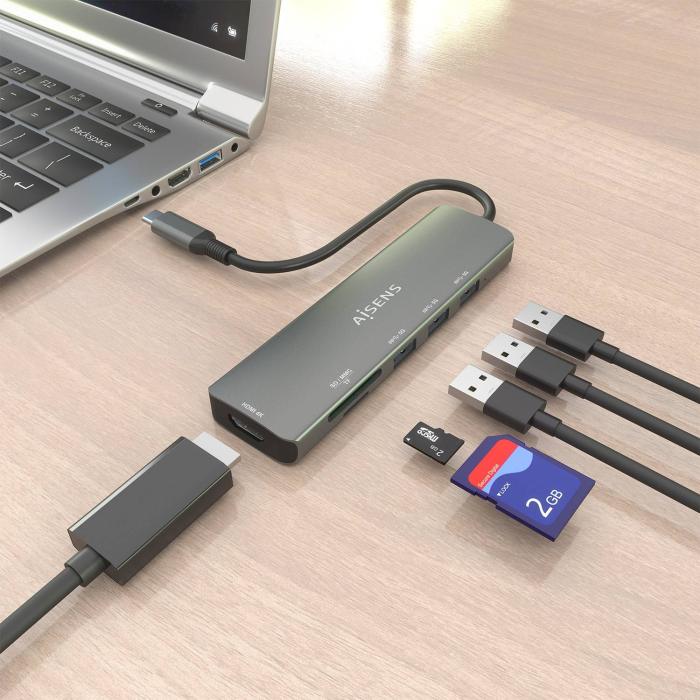

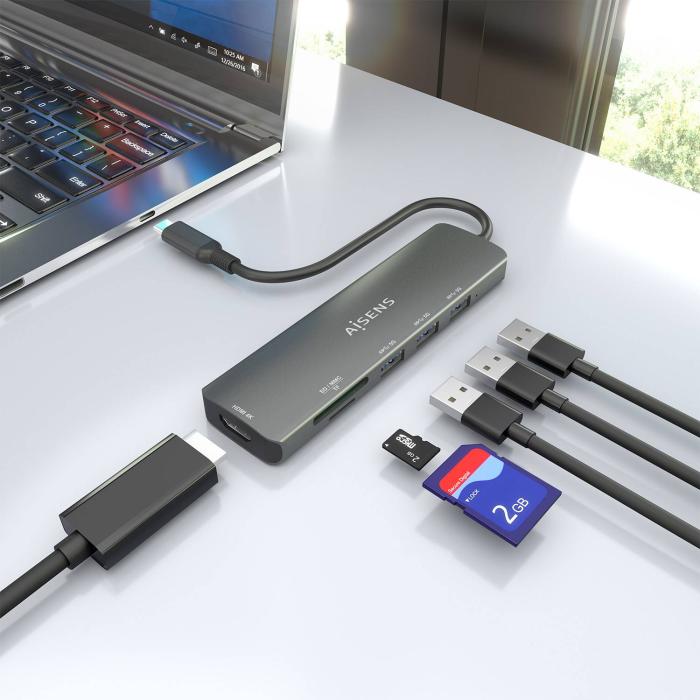

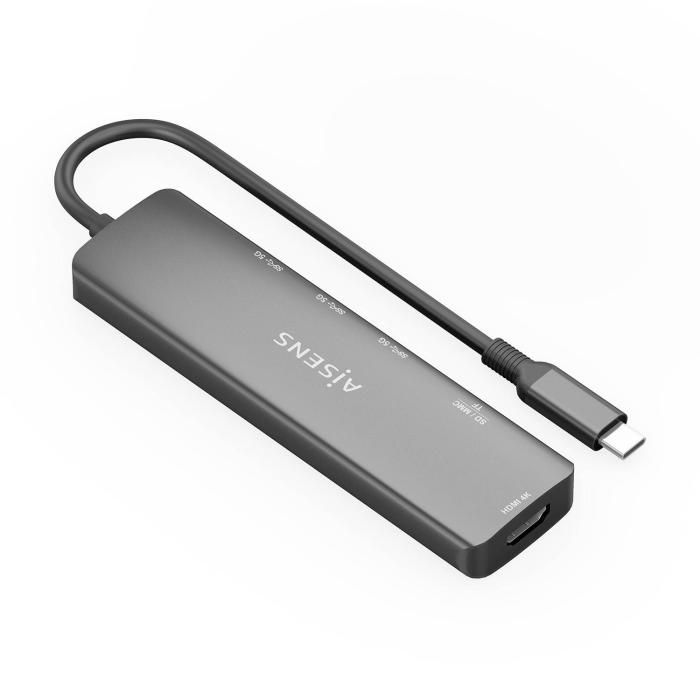

Expand your laptop's connectivity with the AISENS 6-in-1 USB-C dock, a compact grey accessory that connects via an integrated 0.15 m cable. Its host interface is USB 3.2 Gen 1 Type-C and it offers a data transfer rate of up to 5 Gbit/s. It features three USB Type-A USB 3.2 Gen 1 ports for connecting peripherals, as well as an HDMI output that reaches a maximum digital resolution of 3840 x 2160 pixels with a refresh rate of 30 Hz. The integrated card reader supports SD, SDHC, SDXC, MicroSD, MicroSDHC, MicroSDXC, MMC and RS-MMC formats. It has USB Type-C DisplayPort Alternate Mode and HDCP compatibility. The connectivity technology is wired and power is supplied via USB through a USB Type-C power connector. Thanks to the Plug and Play function, you can use it without additional configuration.
Specifications
Ports & interfaces
- Connectivity technology: Wired
- Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
- HDMI ports quantity: 1
- Microphone in: No
- HDCP: Yes
- USB Type-C DisplayPort Alternate Mode: Yes
Network
- Ethernet LAN: No
Performance
- Card reader integrated: Yes
- Compatible memory cards: MMC, MicroSD (TransFlash), MicroSDHC, MicroSDXC, RS-MMC, SD, SDHC, SDXC
- Data transfer rate: 5 Gbit/s
- Maximum digital resolution: 3840 x 2160 pixels
- Maximum refresh rate: 30 Hz
- Product colour: Grey
- Plug and Play: Yes
Power
- Power source type: USB
- Power connector: USB Type-C
- USB cable length: 0.15 m
Packaging data
- Quantity per pack: 1 pc(s)
- Package width: 173 mm
- Package depth: 103 mm
- Package height: 20 mm
- Package weight: 105 g
Technical details
- Package volume: 356 cm³
- Master (outer) case volume: 20383 cm³
- Compliance certificates: CE, RoHS
Logistics data
- Products per master (outer) case: 40 pc(s)
- Master (outer) case width: 220 mm
- Master (outer) case length: 425 mm
- Master (outer) case height: 218 mm
- Master (outer) case net weight: 4.2 kg
