Description

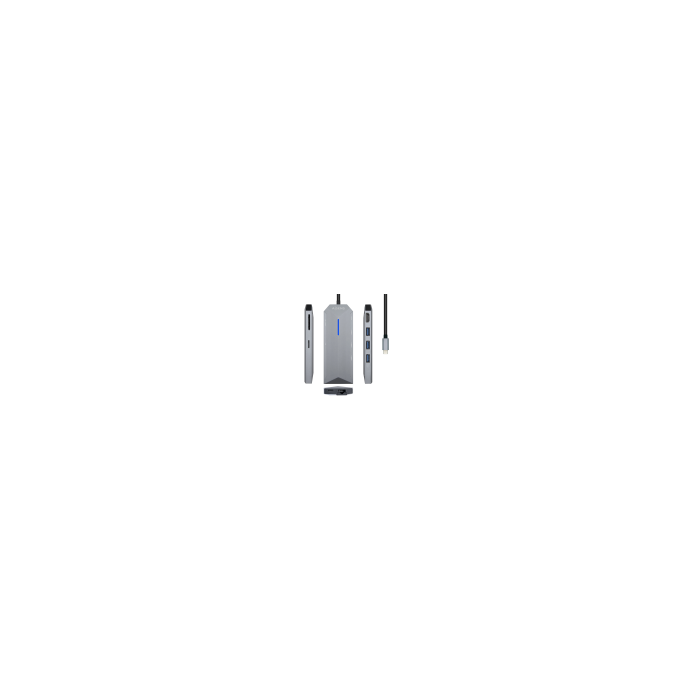

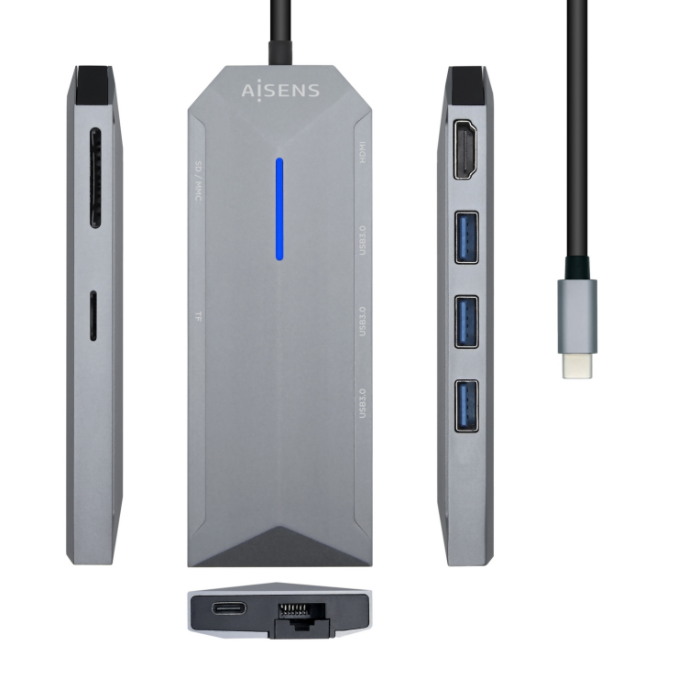

The AISENS USB-C 8-in-1 dock in grey expands your laptop's connectivity with a single connection. Its USB 3.2 Gen 1 Type-C host interface gives access to three USB Type-A ports and one USB Type-C port of the same generation, plus an HDMI port with a maximum resolution of 3840 x 2160 pixels and HDCP support. It includes an RJ-45 port with speeds of 10, 100 and 1000 Mbit/s and IEEE 802.3, 802.3ab, 802.3az, 802.3u and 802.3x standards. It also features an integrated card reader for SD and MicroSD. USB Power Delivery reaches up to 100 W, so you can charge your device while you work. The wired connection and LED indicators complete an accessory designed for everyday use.
Specifications
Ports & interfaces
- Connectivity technology: Wired
- Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
- USB Power Delivery (USB PD): Yes
- USB Power Delivery up to: 100 W
- HDMI ports quantity: 1
- Microphone in: No
- HDCP: Yes
- USB Type-C DisplayPort Alternate Mode: Yes
Network
- Ethernet LAN: Yes
- Ethernet LAN (RJ-45) ports: 1
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Performance
- Card reader integrated: Yes
- Compatible memory cards: MMC, MicroSD (TransFlash), MicroSDHC, MicroSDXC, RS-MMC, SD, SDHC, SDXC
- Data transfer rate: 5 Gbit/s
- HD type: 4K Ultra HD
- Maximum digital resolution: 3840 x 2160 pixels
- Maximum refresh rate: 30 Hz
- Product colour: Grey
- LED indicators: Yes
- Housing material: Aluminium
Power
- Power source type: USB
- USB cable length: 0.15 m
Software
- Windows operating systems supported: Windows 10, Windows 11
- Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Ma
- Linux operating systems supported: Yes
- Mobile operating systems supported: iOS 15, iPadOS
Packaging data
- Quantity per pack: 1 pc(s)
- Package width: 173 mm
- Package depth: 103 mm
- Package height: 20 mm
- Package weight: 180 g
Packaging content
- Manual: Yes
Technical details
- Package volume: 356.38 cm³
- Master (outer) case volume: 18224.8 cm³
- Compliance certificates: CE, RoHS
Logistics data
- Products per master (outer) case: 40 pc(s)
- Master (outer) case width: 220 mm
- Master (outer) case length: 380 mm
- Master (outer) case height: 218 mm
- Master (outer) case gross weight: 7.2 kg
Other features
- Chipset: AX88179A
