Description

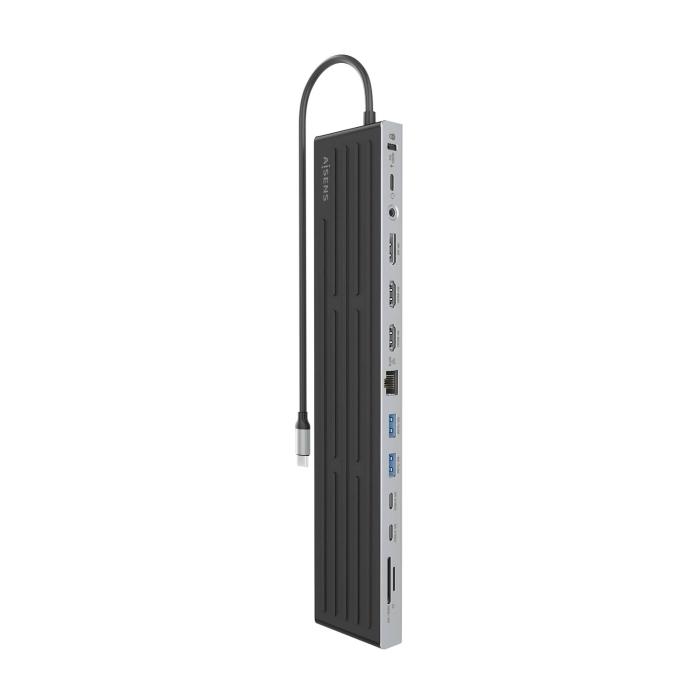

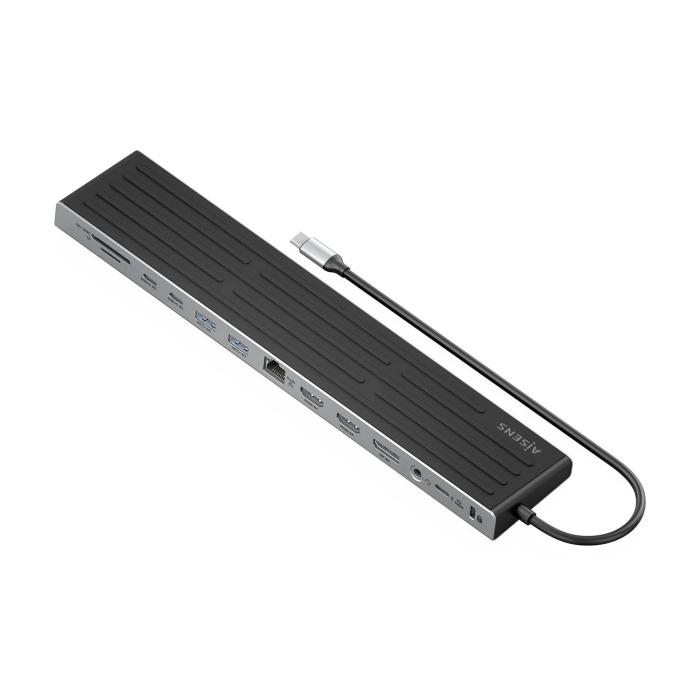

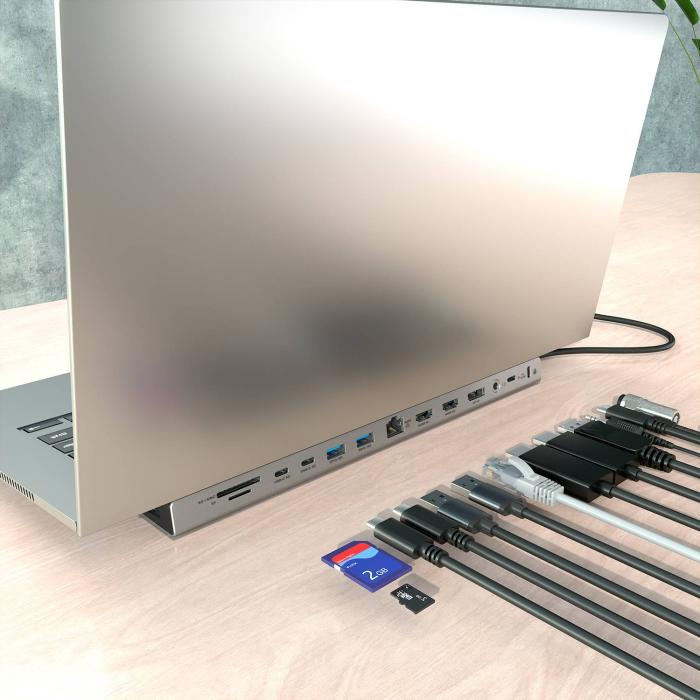

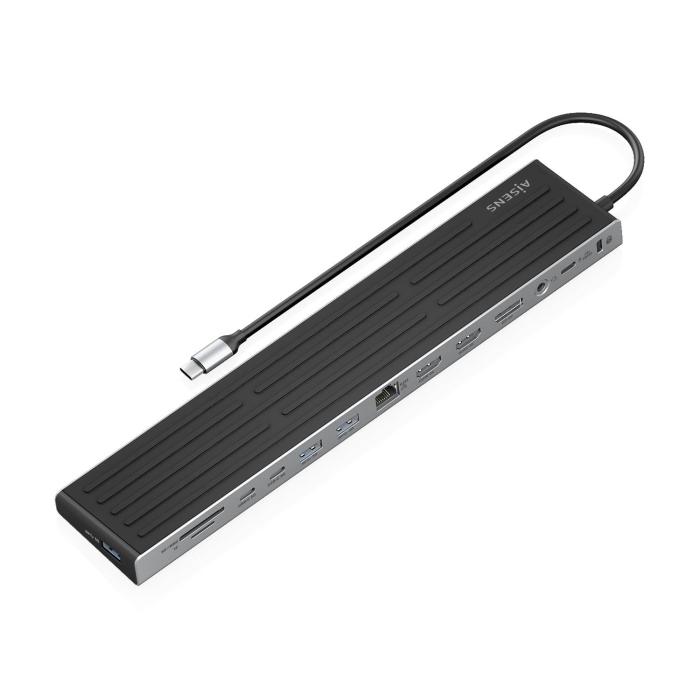

The AISENS 13-in-1 USB-C dock connects your laptop to multiple devices via a USB 3.2 Gen 1 Type-C interface and a 30 cm cable, including two HDMI outputs, one DisplayPort, three USB-A ports and three USB-C ports, one of which supports Power Delivery of up to 100 W for charging your device. It adds an RJ45 Ethernet port at 10/100/1000 Mbit/s, slots for SD and MicroSD cards, a 3.5 mm audio output and a Kensington lock slot for physical security. This wired accessory supports HDCP on its video connections and complies with the IEEE 802.3, 802.3ab, 802.3az, 802.3u and 802.3x network standards, as well as being compatible with MMC, SDHC, SDXC, MicroSDHC and MicroSDXC cards. With no additional software required, it expands your device's capabilities with a single cable.
Specifications
Ports & interfaces
- Connectivity technology: Wired
- Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 3
- USB Power Delivery (USB PD): Yes
- USB Power Delivery up to: 100 W
- HDMI ports quantity: 2
- DisplayPorts quantity: 1
- Microphone in: No
- Headphone outputs: 1
- Headphone connectivity: 3.5 mm
- HDCP: Yes
Network
- Ethernet LAN: Yes
- Ethernet LAN (RJ-45) ports: 1
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Performance
- Card reader integrated: Yes
- Compatible memory cards: MMC, MicroSD (TransFlash), MicroSDHC, MicroSDXC, RS-MMC, SD, SDHC, SDXC
- Data transfer rate: 5 Gbit/s
- HD type: 4K Ultra HD
- Maximum digital resolution: 3840 x 2160 pixels
- Cable lock slot: Yes
- Cable lock slot type: Kensington
- Product colour: Grey
Power
- Power source type: USB
- Power connector: USB Type-C
- USB cable length: 0.3 m
Software
- Windows operating systems supported: Windows 10, Windows 11
- Mac operating systems supported: Yes
- Linux operating systems supported: Yes
- Other operating systems supported: iPadOS
Packaging data
- Package width: 115 mm
- Package depth: 325 mm
- Package height: 25 mm
- Package weight: 298 g
Packaging content
- Manual: Yes
Technical details
- Package volume: 934 cm³
- Master (outer) case volume: 57235 cm³
- Compliance certificates: CE, RoHS
Logistics data
- Products per master (outer) case: 40 pc(s)
- Master (outer) case width: 335 mm
- Master (outer) case length: 670 mm
- Master (outer) case height: 255 mm
- Master (outer) case net weight: 11.9 kg
Other features
- Chipset: RTL8153
