Description

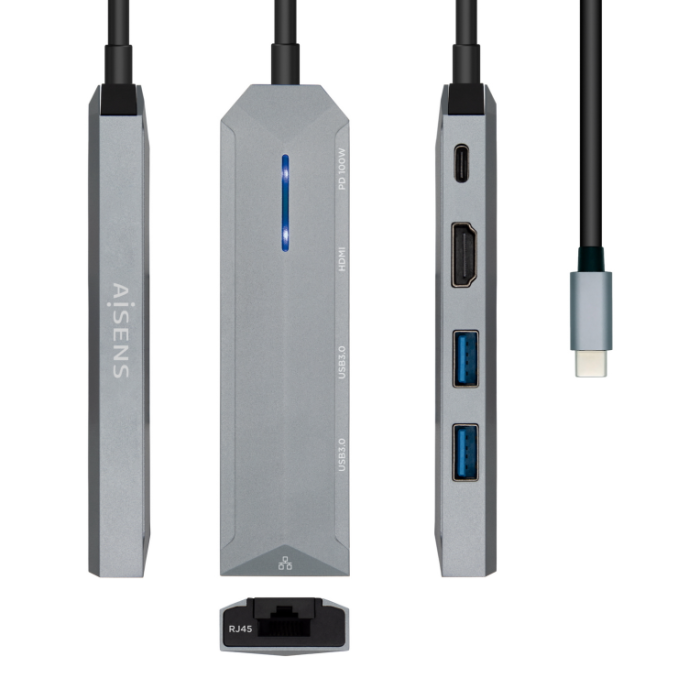

Expand your laptop's connectivity with the AISENS USB-C 5-in-1 dock, a compact grey accessory 15 cm long that connects via cable to a USB 3.2 Gen 1 Type-C port. It features an HDMI port that supports a maximum digital resolution of 3840 x 2160 pixels, with HDCP support. It also has two USB Type-A ports and one USB Type-C port, all USB 3.2 Gen 1, offering a data transfer speed of 5 Gbit/s. USB Power Delivery supports up to 100 W, so you can keep your device charged while you work. It includes an Ethernet LAN RJ-45 port with transfer speeds of 10, 100 and 1000 Mbit/s for a stable network connection. It also features a card reader and has LED indicators that show the operating status. USB Type-C DisplayPort Alternate Mode enables video output to an external display.
Specifications
Ports & interfaces
- Connectivity technology: Wired
- Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
- USB Power Delivery (USB PD): Yes
- USB Power Delivery up to: 100 W
- HDMI ports quantity: 1
- Microphone in: No
- HDCP: Yes
- USB Type-C DisplayPort Alternate Mode: Yes
Network
- Ethernet LAN: Yes
- Ethernet LAN (RJ-45) ports: 1
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
Performance
- Card reader integrated: Yes
- Compatible memory cards: MMC, MicroSD (TransFlash), MicroSDHC, MicroSDXC, RS-MMC, SD, SDHC, SDXC
- Data transfer rate: 5 Gbit/s
- HD type: 4K Ultra HD
- Maximum digital resolution: 3840 x 2160 pixels
- Maximum refresh rate: 30 Hz
- Product colour: Grey
- LED indicators: Yes
- Housing material: Aluminium
Power
- Power source type: USB
- USB cable length: 0.15 m
Software
- Windows operating systems supported: Windows 10, Windows 11
- Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Ma
- Linux operating systems supported: Yes
- Mobile operating systems supported: iOS 15, iPadOS
Packaging data
- Quantity per pack: 1 pc(s)
- Package width: 173 mm
- Package depth: 103 mm
- Package height: 20 mm
- Package weight: 125 g
Packaging content
- Manual: Yes
Technical details
- Package volume: 356.38 cm³
- Master (outer) case volume: 18224.8 cm³
- Compliance certificates: CE, RoHS
Logistics data
- Products per master (outer) case: 40 pc(s)
- Master (outer) case width: 220 mm
- Master (outer) case length: 380 mm
- Master (outer) case height: 218 mm
- Master (outer) case gross weight: 5 kg
Other features
- Chipset: RTL8153B
