Description

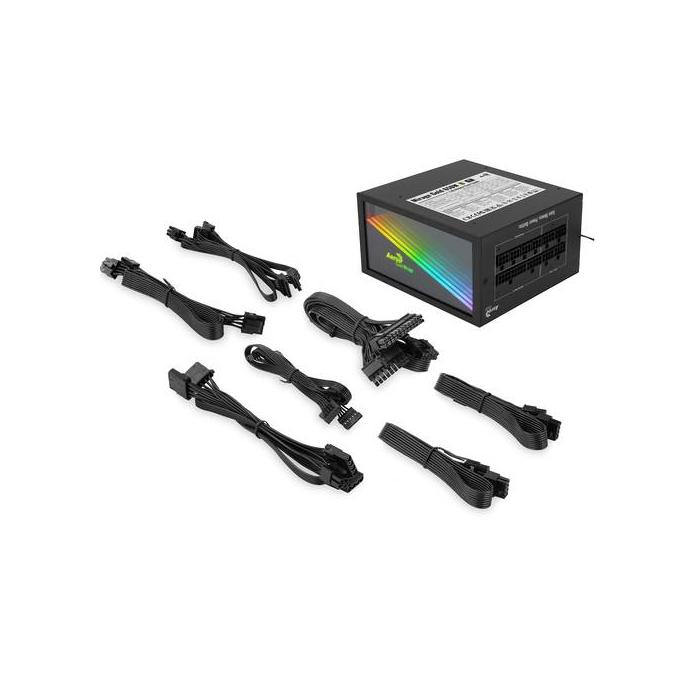

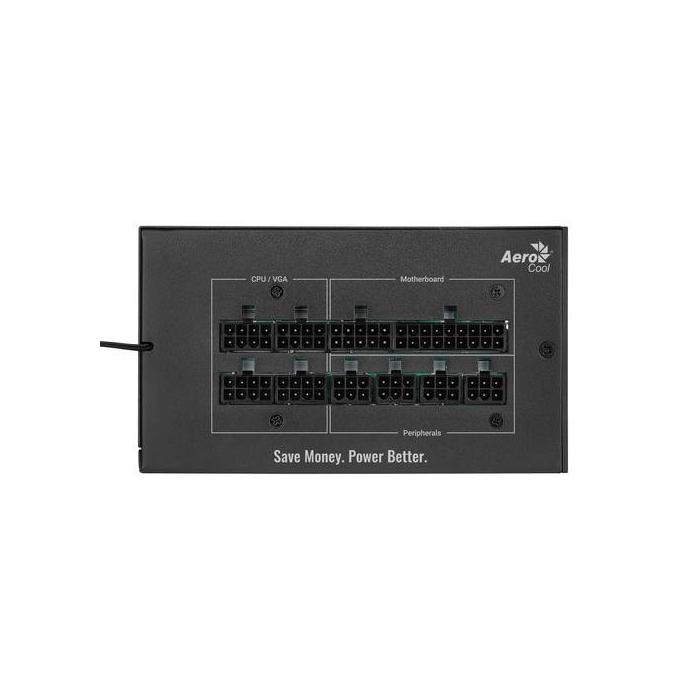

The AEROCOOL MIRAGEGOLD 650W power supply, in black, delivers a total power of 650 W with 90 % efficiency. It features Japanese capacitors and has 80 Plus Gold certification. It supports an AC input voltage of 200 to 240 V and an input frequency of 47 to 63 Hz. Its modular design allows you to connect only the necessary cables. It offers protection against overcurrent, overvoltage, overpower, short circuit and undervoltage. It includes a 20+4 pin ATX motherboard power connector, six SATA power connectors and three PATA connectors. The maximum output current of the +12 V rail reaches 54 A, with a combined power of 648 W on that rail.
Specifications
Power
- Total power: 650 W
- AC input voltage: 200 - 240 V
- AC input frequency: 47 - 63 Hz
- Combined power (+3.3V): 120 W
- Combined power (+12V): 648 W
- Combined power (+5V): 120 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 12.5 W
- Max output current (+3.3V): 20 A
- Max output current (+12V): 54 A
- Max output current (+5V): 20 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 2.5 A
- Efficiency: 90%
- Power protection features: Over current, Over power, Over voltage, Short circuit, Under voltage
Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Number of SATA power connectors: 6
- Number of PATA power connectors: 3
- PCI Express power connectors (6+2 pin): 2
- Cabling type: Fully-Modular
Performance
- 80 PLUS certification: 80 PLUS Gold
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 2.52
Design
- Product colour: Black
- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
- Fan speed: 900 - 1800 RPM
- Illumination: Yes
Certificates
- Compliance certificates: RoHS
