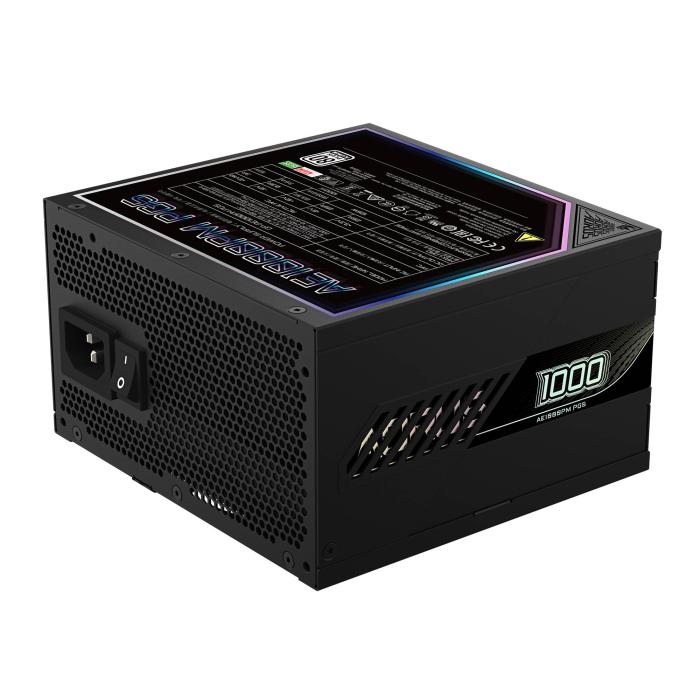

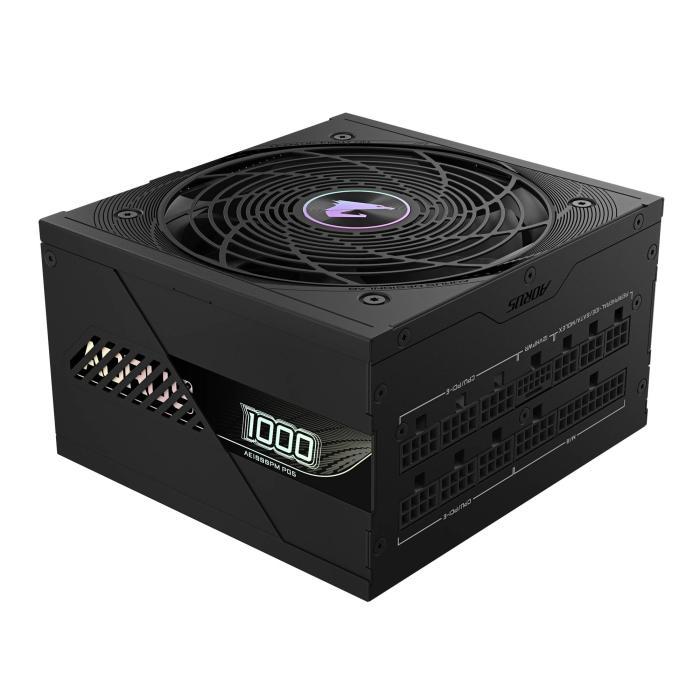

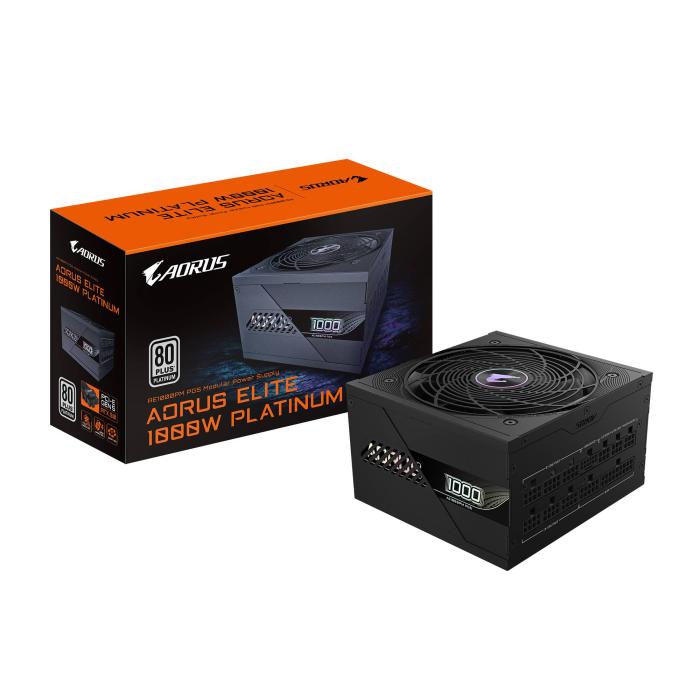

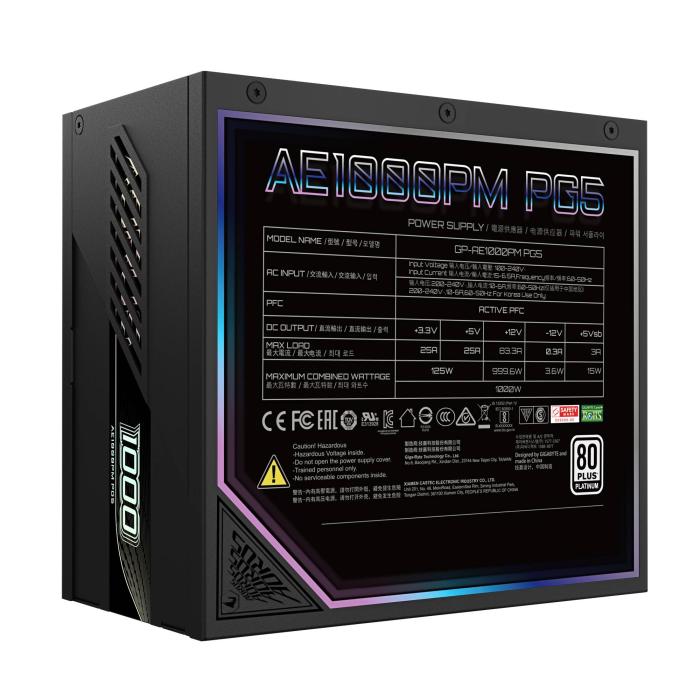

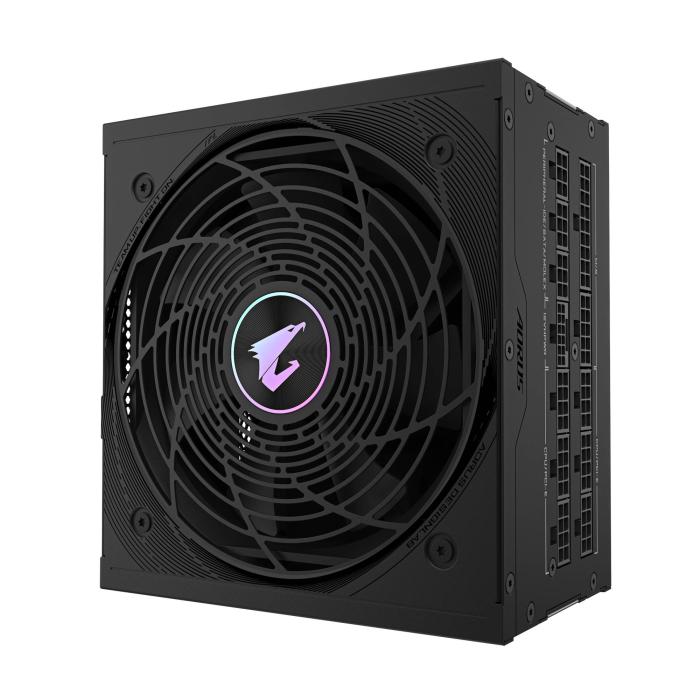

GIGABYTE AORUS ELITE P1000W ICE Power Supply Unit - PCIe 5.0, 80 PLUS Platinum, Fully modular design, 120mm Fan, ATX 3.0 compatible, EU Plug

Not avaliable

GIGABYTE AORUS ELITE P1000W ICE Power Supply Unit - PCIe 5.0, 80 PLUS Platinum, Fully modular design, 120mm Fan, ATX 3.0 compatible, EU Plug.   More info

Brand: GIGABYTE
SKU: 111280 PRC: 602180 EAN: 4719331554521 PN: GP-AE1000PM PG5

Description

Specifications

Power

  • Total power: 1000 W
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50/60 Hz
  • Input current: 15 - 6.5 A
  • Power factor: 0.9
  • Power Factor Correction (PFC) type: Active
  • Combined power (+3.3V): 125 W
  • Combined power (+12V): 999.6 W
  • Combined power (+5V): 125 W
  • Combined power (-12V): 3.6 W
  • Combined power (+5Vsb): 15 W
  • Max output current (+3.3V): 25 A
  • Max output current (+12V): 83.3 A
  • Max output current (+5V): 25 A
  • Max output current (-12V): 0.3 A
  • Max output current (+5Vsb): 3 A
  • Hold time: 16 ms
  • Efficiency: 92%
  • Power Good signal delay range: 100 - 150 ms
  • Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

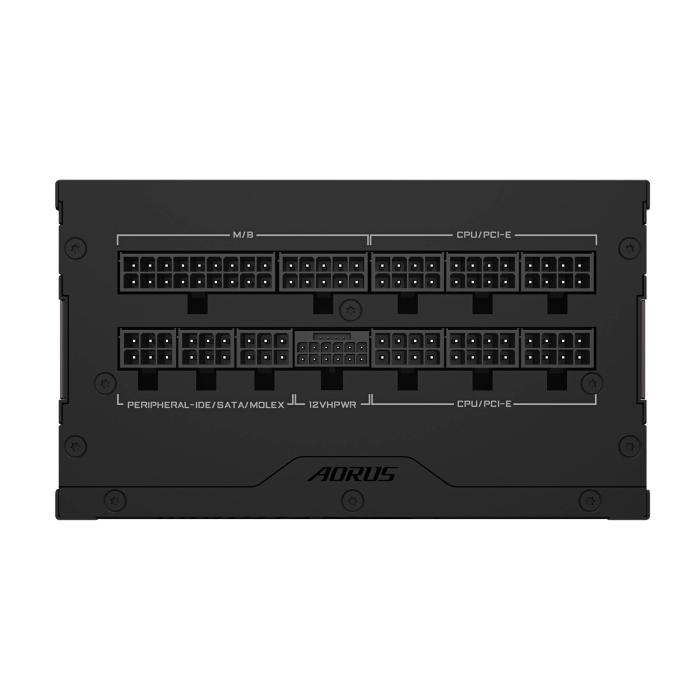

Ports & interfaces

  • Motherboard power connector: 20+4 pin ATX
  • Motherboard power cable length: 65 cm
  • Number of SATA power connectors: 6
  • Peripheral (Molex) power connectors (4-pin): 4
  • PCI Express power connectors (6+2 pin): 6
  • CPU power connector (4+4 pin): Yes
  • ATX power connector (20+4 pin): Yes
  • Floppy drive power connector: 2
  • Floppy disk drive connector: Yes
  • PCI Express connector: Yes
  • Cabling type: Fully-Modular

Performance

  • 80 PLUS certification: 80 PLUS Platinum
  • Purpose: PC
  • Power supply unit (PSU) form factor: ATX
  • ATX version: 3.1
  • Bearing technology: Ball bearing
  • Mean time between failures (MTBF): 100000 h

Design

  • Product colour: Black
  • Cooling type: Active

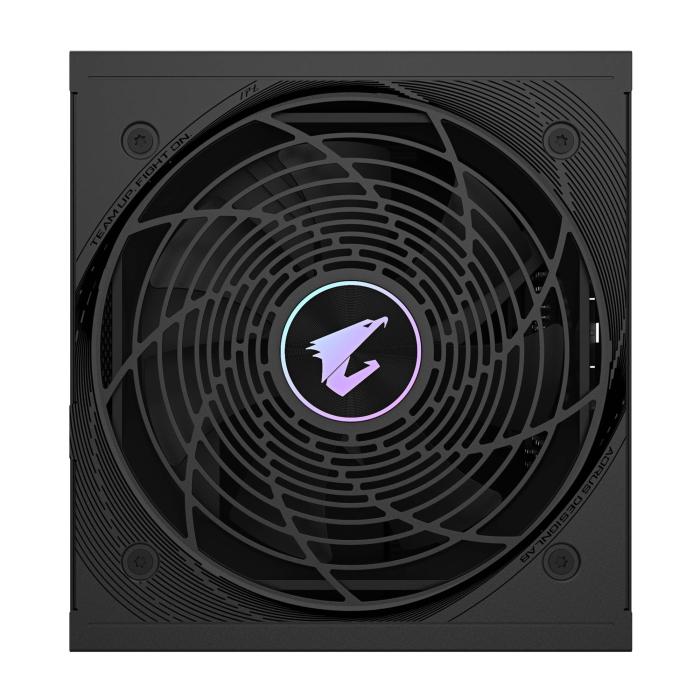

  • Fan diameter: 12 cm
  • Number of fans: 1 fan(s)
  • Fan location: Top
  • On/off switch: Yes

Weight & dimensions

  • Width: 150 mm
  • Depth: 140 mm
  • Height: 86 mm
  • Weight: 3.08 kg

Packaging data

  • Package width: 340 mm
  • Package depth: 206 mm
  • Package height: 120 mm
  • Package weight: 3.72 kg
  • Package type: Box

Logistics data

  • Warranty period: 10 year(s)
