Description

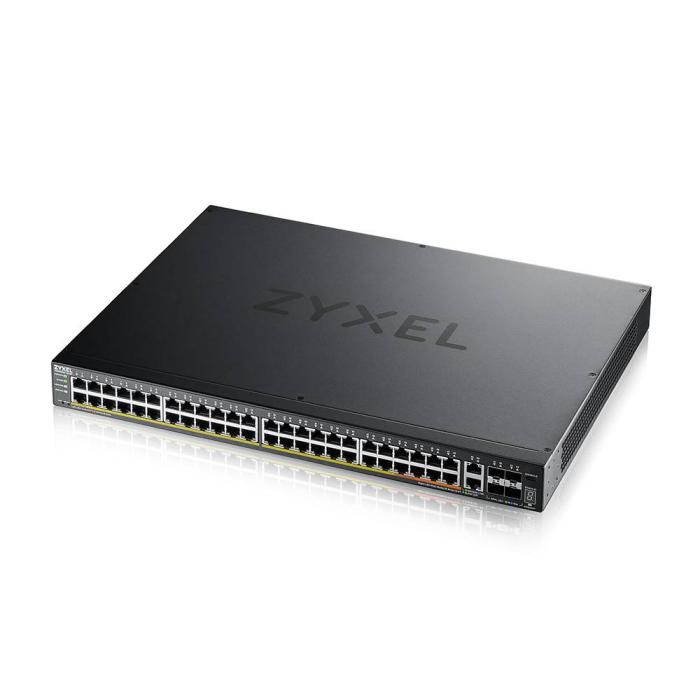

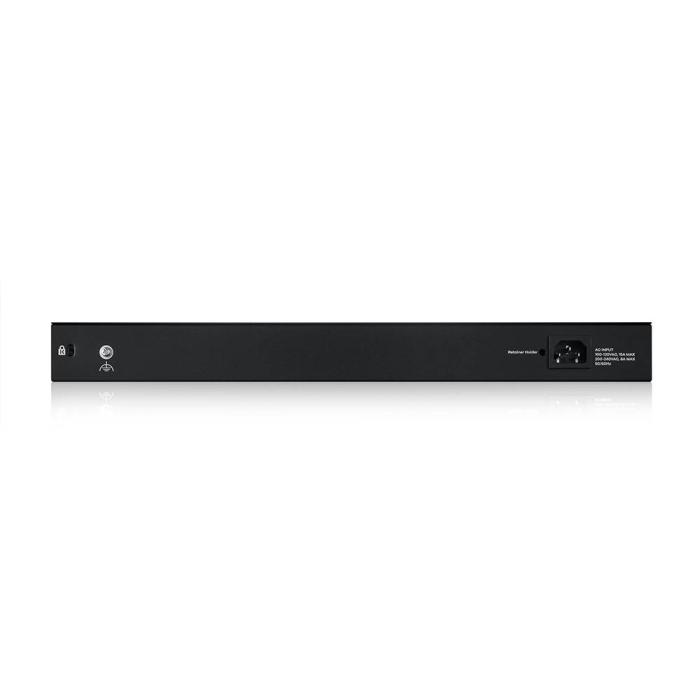

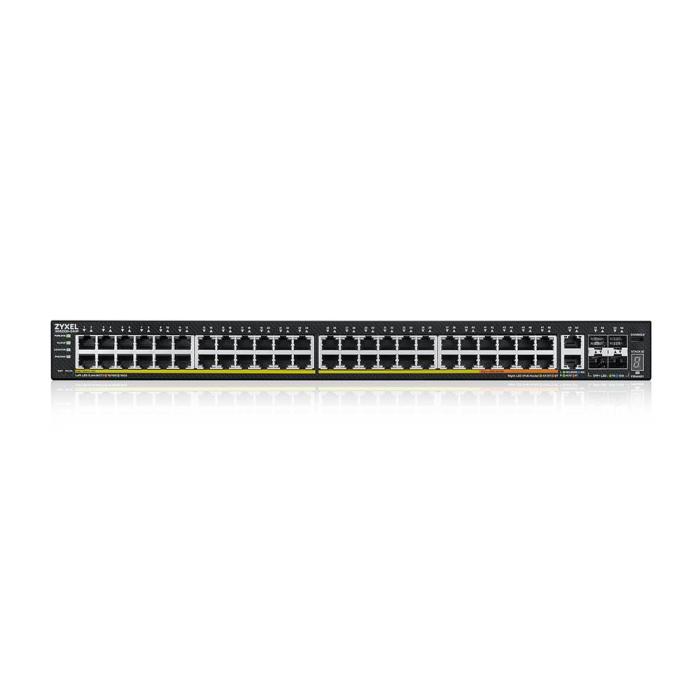

The Zyxel XGS2220-54HP managed switch is an L3 layer device with 48 Gigabit Ethernet (10/100/1000) RJ-45 ports, designed to serve dense networks with integrated power. It incorporates two 10G copper Ethernet ports and four installed SFP+ modules, so it combines Gigabit access with high-speed links for the backbone. Its switching capacity reaches 216 Gbit/s and its forwarding rate reaches 161 Mpps, with a MAC address table of 32000 entries and 2 MB of packet buffer memory. It supports jumbo frames and offers management functions such as ARP inspection and quality of service support. In terms of security, it incorporates IGMP and IGMP proxy, as well as DHCP relay and DHCP server functions. The entry routing is 64 and it has 10G support to integrate higher-capacity connections. All of this in a chassis of 441 x 44 x 330 mm (width x height x depth) and a weight of 5 kg.
Specifications
Management features
- Switch type: Managed
- Switch layer: L3
- Quality of Service (QoS) support: Yes
- ARP inspection: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 48
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- 10G Ethernet (copper) ports quantity: 2
- Installed SFP+ modules quantity: 4
Network
- Networking standards: IEEE 802.3ab, IEEE 802.3bt, IEEE 802.1ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.1p, IEEE 802.1s, IEEE
- 10G support: Yes
- Routing entries: 64
Data transmission
- Switching capacity: 216 Gbit/s
- Forwarding rate: 161 Mpps
- MAC address table: 32000 entries
- Jumbo frames support: Yes
- Packet buffer memory: 2 MB
Security
- DHCP features: DHCP relay, DHCP server
- IGMP snooping: Yes
- IGMP proxy: Yes
- Authentication type: IEEE 802.1x, RADIUS, TACACS+
Multicast features
- Multicast Listener Discovery (MLD) snooping: MLD v1/v2
Protocols
- GARP VLAN Registration Protocol (GVRP): Yes
Design
- Rack mounting: Yes
Performance
- Internal memory: 1024 MB
- Flash memory: 64 MB
- Mean time between failures (MTBF): 214.388 h
Power
- Power source: AC
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Power consumption (max): 754.11 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) ports quantity: 50
- Total Power over Ethernet (PoE) budget: 600 W
Operational conditions
- Operating temperature (T-T): -20 - 50 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 95%
- Storage relative humidity (H-H): 10 - 90%
- Heat dissipation: 2571.52 BTU/h
Weight & dimensions
- Width: 441 mm
- Depth: 330 mm
- Height: 44 mm
- Weight: 5 kg
