Description

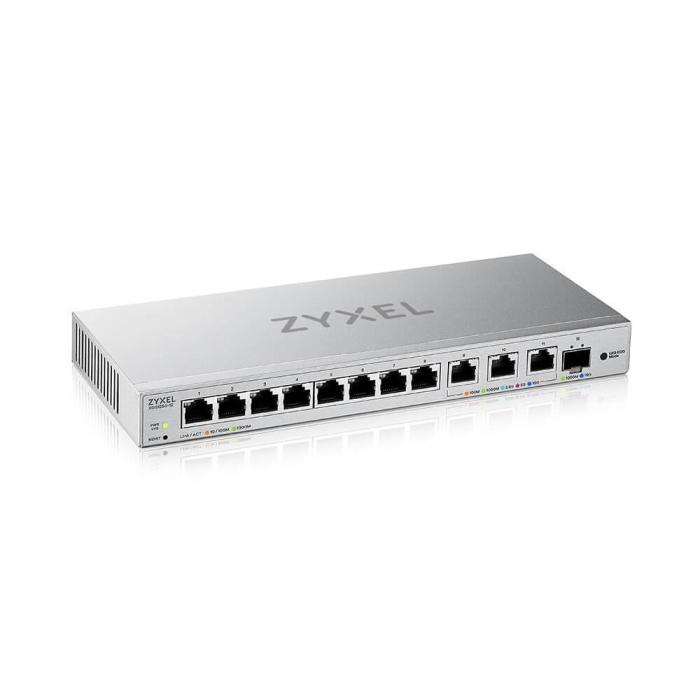

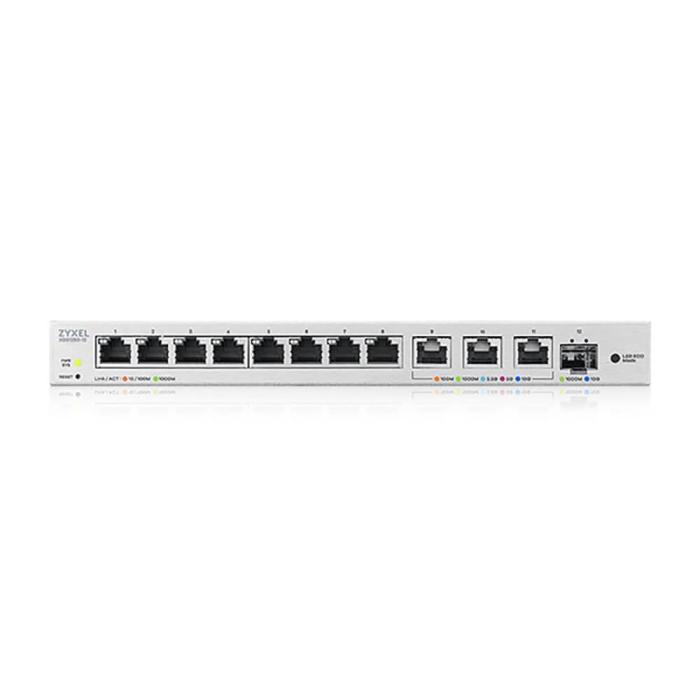

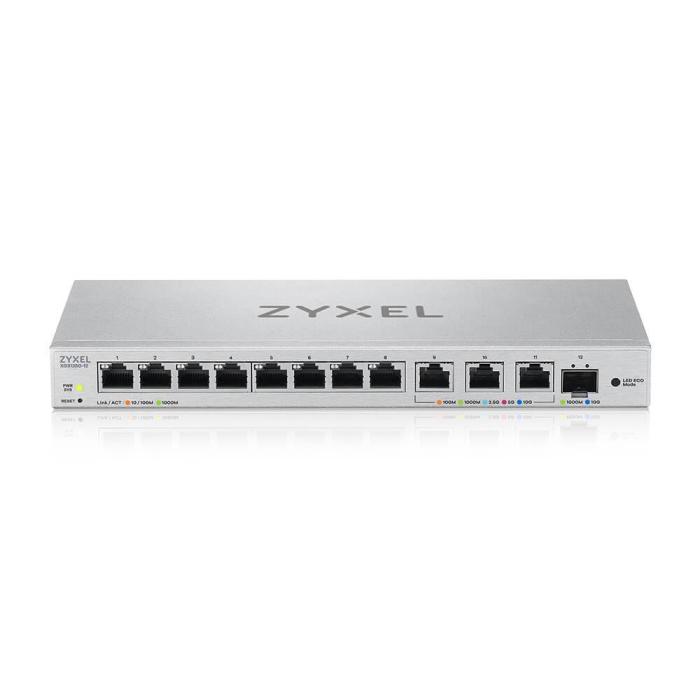

Zyxel XGS1250-12 switch in grey, a managed L2 switch with 11 RJ-45 10G Ethernet ports (100/1000/10000) and 1 SFP+ slot to expand your network with fibre. Includes web-based management, support for QoS, VLAN and storm control, as well as advanced features such as port mirroring and auto MDI/MDI-X with full duplex. This model complies with IEEE 802.3, 802.3ab, 802.3ae, 802.3an, 802.3az, 802.3u and 802.3x standards, reaching speeds of up to 10 Gbit/s and supporting the 10G protocol. With its DC input connector and MIB support, this switch lets you manage your network traffic efficiently and stably, ideal for environments requiring high performance.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- MIB support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 11
- Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
- SFP+ module slots quantity: 1
- Power connector: DC-in jack
Network
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
- 10G support: Yes
- Port mirroring: Yes
- Full duplex: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Broadcast storm control: Yes
- Auto MDI/MDI-X: Yes
- Ethernet LAN data rates: 10,100,1000,2500,10000 Mbit/s
- VLAN support: Yes
Data transmission
- Switching capacity: 96 Gbit/s
- Forwarding rate: 71.42 Mpps
- MAC address table: 16000 entries
- Jumbo frames support: Yes
- Jumbo frames: 12000
Security
- DHCP features: DHCP client
- IGMP snooping: Yes
Multicast features
- Multicast support: Yes
Design
- Rack mounting: No
- Stackable: No
- Product colour: Grey
- Housing material: Aluminium, Iron
- Reset button: Yes
- LED indicators: Yes
- Redundant fans support: Yes
- Wall mountable: Yes
- DIN rail mounting: No
- Number of fans: 1 fan(s)
Power
- Power source: AC
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Power consumption (max): 20.06 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 10 - 90%
Weight & dimensions
- Width: 250 mm
- Depth: 104 mm
- Height: 27 mm
- Weight: 783 g
Logistics data
- Harmonized System (HS) code: 85176990
