Description

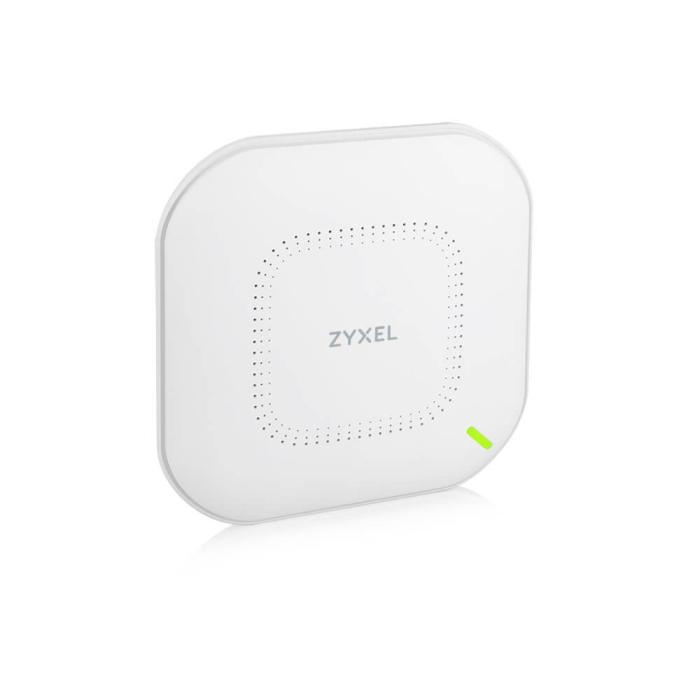

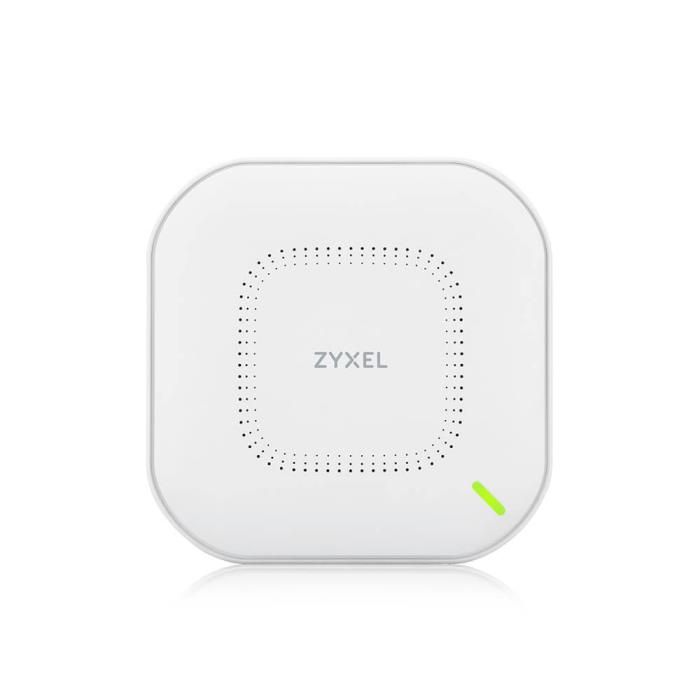

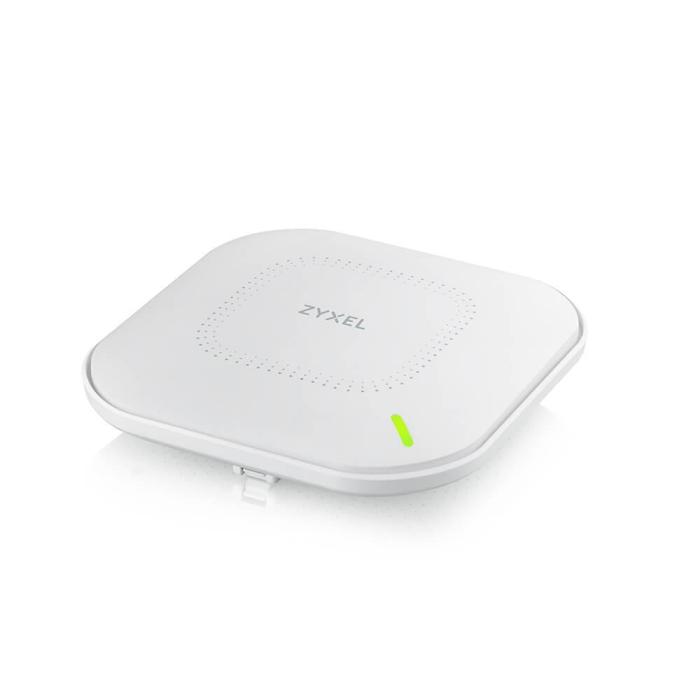

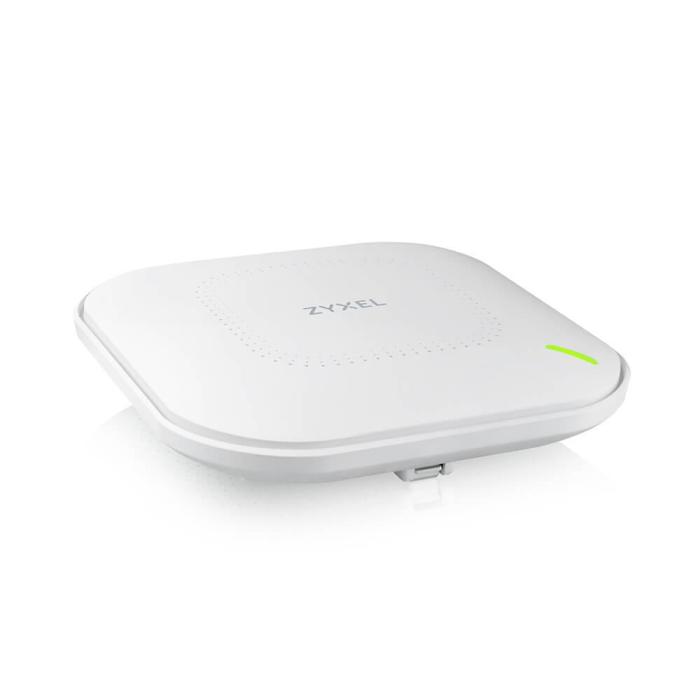

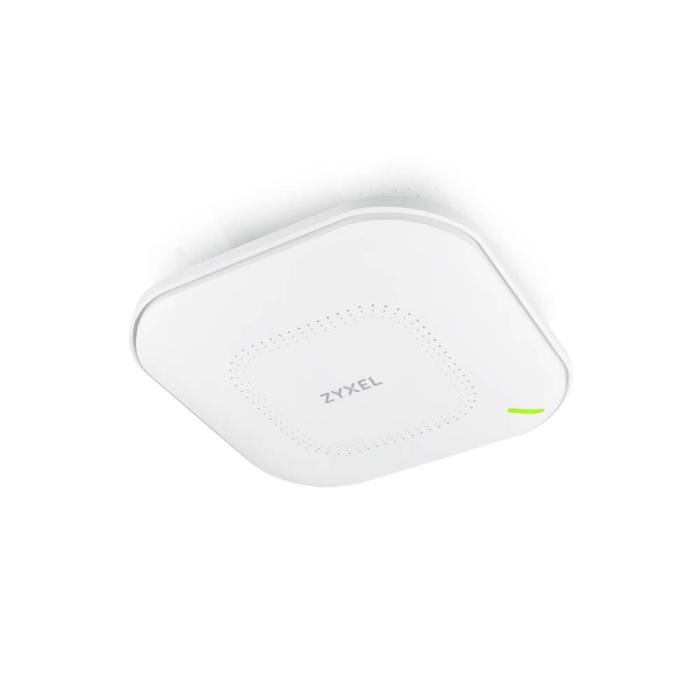

Zyxel NWA110AX, 2.4 GHz, 5 GHz, 1200 Mbit/s, WPA, WPA-PSK, WPA2, WPA2-Enterprise, WPA3, 10,100,1000 Mbit/s
Specifications
Features
- 2.4 GHz: Yes
- 5 GHz: Yes
- Maximum data transfer rate: 1200 Mbit/s
- Maximum data transfer rate (2.4 GHz): 575 Mbit/s
- Maximum data transfer rate (5 GHz): 1200 Mbit/s
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Frequency band: 2.412 - 2.472, 5.470 - 5.725 GHz
- Bandwidth: 0.08 GHz
- Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
- Cabling technology: 10/100/1000Base-T(X)
- Automatic channel selection: Yes
- Automatic channel scanning: Yes
- MIMO: Yes
- MIMO type: Multi User MIMO
- Wi-Fi Multimedia (WMM)/(WME): Yes
- Fast roaming: Yes
- VLAN support: Yes
- Virtual LAN features: SSID-based VLAN assignment
- Band steering: Yes
- Transmitting power: 22 dBmW
- Receiver sensitivity: Min. Rx sensitivity up to -101 dBm
Security
- Security algorithms: WPA, WPA-PSK, WPA2, WPA2-Enterprise, WPA3
- MAC address filtering: Yes
- Auto Wireless Distribution System (WDS): Yes
- Remote Authentication Dial-In User Service (RADIUS): Yes
Protocols
- Routing protocols: IP
- IPv4 & IPv6 features: IPv4/IPv6 access-control list (ACL)
Management features
- Web-based management: Yes
- Command-line interface (CLI): Yes

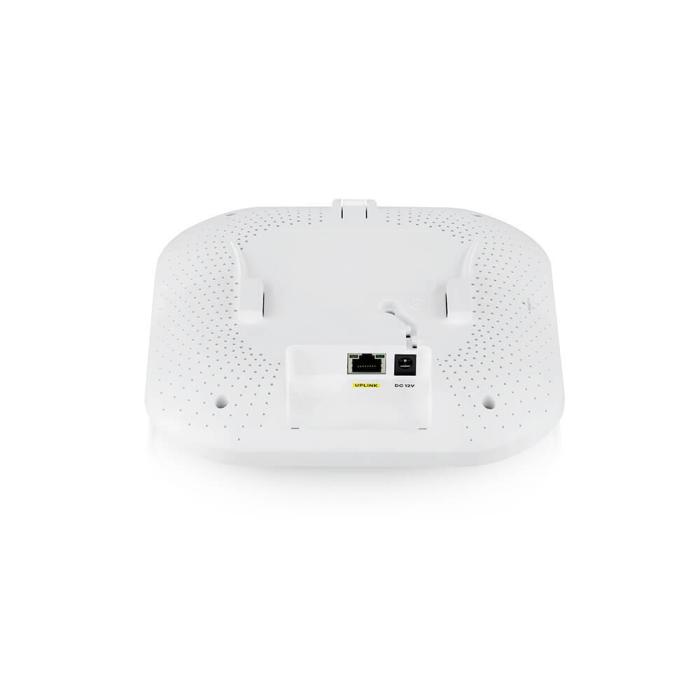

Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1
Power
- Power over Ethernet (PoE): Yes
- DC voltage range: 12 V
- Input current: 1.5 A
- Power consumption (typical): 17 W
Design
- Placement: Ceiling, Table, Wall
- Product colour: White
- On/off switch: Yes
- Reset button: Yes
- WPS push button: Yes
- LED indicators: Yes
Antenna
- Antenna type: Internal
- Antenna features: Integrated antenna
- Antennas quantity: 2
- Antenna gain level (max): 6 dBi
- Polarization: Dual polarization
Certificates
- Certification: FCC Part 15C FCC Part 15E ETSI EN 300 328 EN 301 893 LP0002 EMC FCC Part 15B EN 301 489-1 EN 301 489-17 EN55022 EN55024 EN61000
Weight & dimensions
- Width: 180 mm
- Depth: 180 mm
- Height: 39 mm
- Weight: 453 g
Packaging data
- Package width: 229 mm
- Package depth: 216 mm
- Package height: 64 mm
- Package weight: 770 g
Packaging content
- Quantity per pack: 1 pc(s)
- AC adapter included: Yes
- Mounting kit: Yes
- Quick start guide: Yes
Operational conditions
- Operating relative humidity (H-H): 10 - 95%
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -30 - 70 °C
- Storage relative humidity (H-H): 10 - 90%
Logistics data
- Harmonized System (HS) code: 85176990
