Description

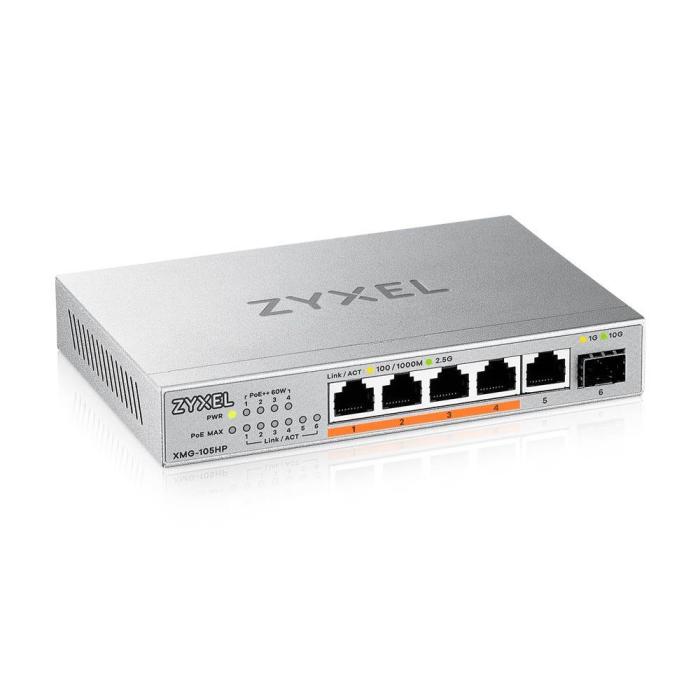

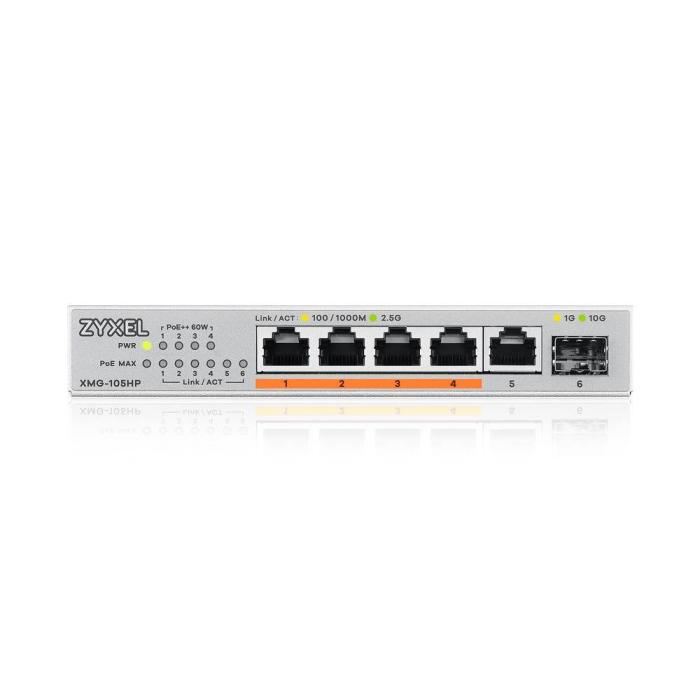

Zyxel XMG-105HP switch in silver, an unmanaged model with five RJ-45 2.5G Ethernet ports (100/1000/2500) and one SFP+ slot for 10G links, ideal for expanding your network without configuration. This hub supports Power over Ethernet to power compatible devices directly from the unit, with PoE, power, and link LED indicators for quick visual monitoring. It offers jumbo frames of 12000 bytes, a switching capacity of 45 Gbit/s, a MAC table of 4000 entries, and a forwarding rate of 33.5 Mpps, with QoS included to prioritise traffic. Its maximum power consumption is 90 W with AC input of 100-240 V at 50/60 Hz, and it features a mean time between failures of over 1.2 million hours.
Specifications
Management features
- Switch type: Unmanaged
- Quality of Service (QoS) support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 5
- Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
- SFP+ module slots quantity: 1
Network
- 10G support: Yes
Data transmission
- Switching capacity: 45 Gbit/s
- Forwarding rate: 33.5 Mpps
- MAC address table: 4000 entries
- Jumbo frames support: Yes
- Jumbo frames: 12000
- Packet buffer memory: 1 MB
Design
- Product colour: Silver
- LED indicators: PoE, Power, Link
Performance
- Mean time between failures (MTBF): 1255904 h
Power
- Power source: DC
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Power consumption (max): 90 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet 4PPoE (PoE++) ports quantity: 4
- Total Power over Ethernet (PoE) budget: 70 W
Operational conditions
- Operating temperature (T-T): -20 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 95%
- Storage relative humidity (H-H): 5 - 95%
- Heat dissipation: 56.27 BTU/h
Weight & dimensions
- Width: 160 mm
- Depth: 110 mm
- Height: 26 mm
- Weight: 492 g
Packaging content
- Quick start guide: Yes
Certificates
- Certification: CE, EAC, FCC, BSMI Class B
