Description

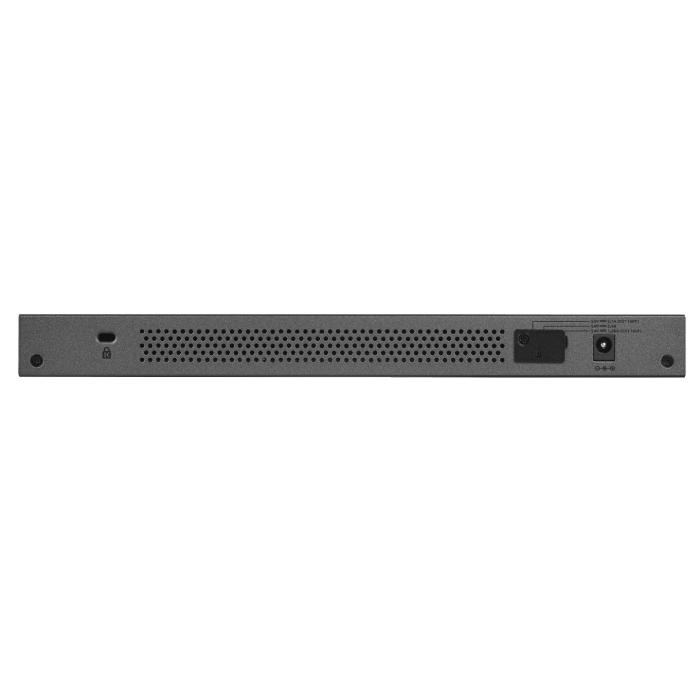

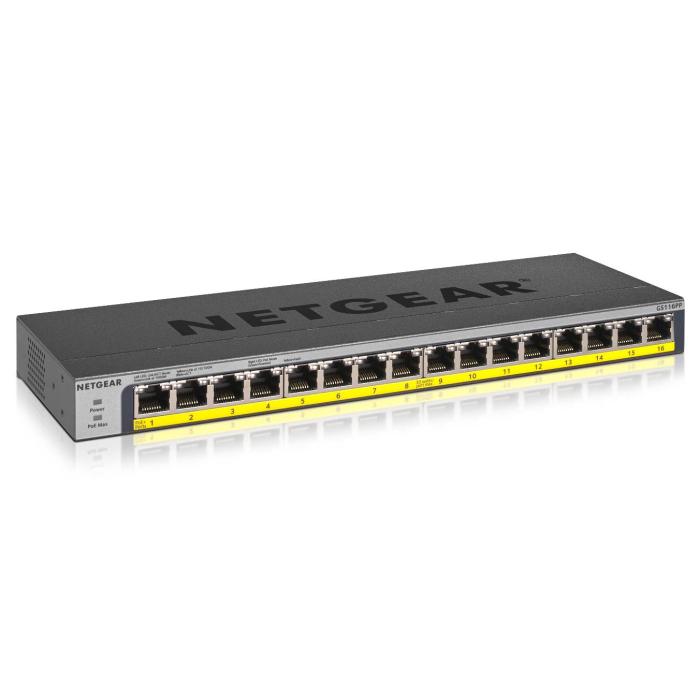

The NETGEAR GS116PP switch is an unmanaged device in black with 16 Gigabit Ethernet (10/100/1000) RJ-45 ports, designed to expand the network with stable connections compatible with the IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az and IEEE 802.3x standards. It offers transfer speeds of 10, 100 and 1000 Mbit/s, supports quality of service (QoS) and has dimensions of 286 x 27 x 102 mm (width x height x depth) with a weight of 880 g. Its switching capacity reaches 32 Gbit/s and its MAC address table supports 4000 entries, while the 1000 KB buffer helps manage traffic. It features LED indicators and allows rack mounting, and includes a fan to maintain cooling. Power is supplied via a DC/PoE power supply with an input voltage of 54 V and an energy consumption of 200 W.
Specifications
Management features
- Switch type: Unmanaged
- Quality of Service (QoS) support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 16
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Network
- Networking standards: IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x
- 10G support: No
- Ethernet LAN data rates: 10,100,1000 Mbit/s
Data transmission
- Switching capacity: 32 Gbit/s
- MAC address table: 4000 entries
Design
- Rack mounting: Yes
- Product colour: Black
- LED indicators: Yes
- Number of fans: 1 fan(s)
Performance
- Buffer size: 1000 KB
- Mean time between failures (MTBF): 2088514 h
Power
- Power source: DC/PoE
- DC input voltage: 54 V
- Input current: 3.7 A
- Power consumption (typical): 200 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet plus (PoE+) ports quantity: 16
- Total Power over Ethernet (PoE) budget: 183 W
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 70 °C
- Operating relative humidity (H-H): 0 - 90%
- Storage relative humidity (H-H): 0 - 95%
- Operating altitude: 0 - 3000 m
- Heat dissipation: 680.58 BTU/h
Weight & dimensions
- Width: 286 mm
- Depth: 102 mm
- Height: 27 mm
- Weight: 880 g
Certificates
- Certification: CE, FCC, ICES-003, VCCI, RCM, BSMI, KC, CB, CE LVD, BSMI, EAC, RCM, KC, EN 60950-1
Logistics data
- Harmonized System (HS) code: 85176990
