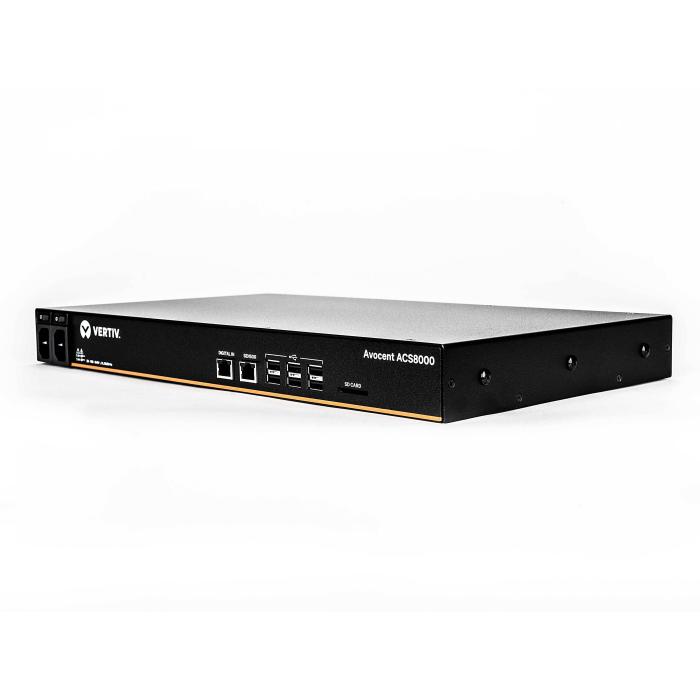

Name: Vertiv Avocent 48-Port ACS8000 Console System with dual AC Power Supply - ACS8048DAC-404
Brand: VERTIV
Price: 6052.99 USD
Availability: InStock

Vertiv Avocent 48-Port ACS8000 Console System with dual AC Power Supply - ACS8048DAC-404

$6,052.99

$6,052.99 without VAT

Vertiv Avocent 48-Port ACS8000 Console System with dual AC Power Supply - ACS8048DAC-404. More info

Amount

Brand: VERTIV

SKU: 85602 PRC: 295513 EAN: 636430086415 PN: ACS8048DAC-404

Description

Specifications

Technical details

Product colour: Black
Rack mounting: Yes
Internal modem: No
Zero Touch Provisioning (ZTP): Yes
Web-based management: Yes
Temperature sensor: Yes

Management features

Management protocols: CLI, HTTP/ HTTPS, SNMP

Security

Authentication method: LOCAL,LDAP,RADIUS,TACACS+ and OneTimePasswords(OTP)
Security algorithms: 3DES, 128-bit AES, 192-bit AES, 256-bit AES, AES, FIPS 140-2, HTTPS, IPSec, SHA-256, SNMP, SNMPv3, SSH, SSH-2
IP address filtering: Yes
One-time password (OTP): Yes

Ports & interfaces

Console port: RJ-45
Serial ports quantity: 48
USB 2.0 ports quantity: 8
Ethernet LAN (RJ-45) ports: 2
SFP module slots quantity: 2
AC outlet types: C13 coupler

Software

Operating system installed: Embedded LINUX

Weight & dimensions

Dimensions (WxDxH): 438.2 x 241.3 x 44.5 mm
Weight: 3.4 kg

Power

Power source type: AC
AC input voltage: 108 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (typical): 20 W
Power consumption (max): 35 W
Input current: 0.1 A
Number of power supply units: 2

Operational conditions

Operating temperature (T-T): -10 - 60 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 5 - 95%

Certificates

Certification: FCC Class A, CE Class A (EU), ICES-003 (Canada), VCCI (Japan), RCM (Australia), Customs Union (CU), KCC (Korea), UL (USA), cUL (

Memory

Flash memory: 16000 MB
RAM capacity: 1024 MB
RAM type: DDR3L
eMMC capacity: 16 GB

Processor

Processor family: ARM Cortex-A9
Processor architecture: ARM Cortex-A9
Processor cores: 2
Processor frequency: 667 MHz

Network

Copper ethernet cabling technology: 10BASE-T, 100BASE-T, 1000BASE-T
Cable types supported: Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Fiber

Other features

Safety: UL (USA), cUL (Canada), EN-60950 (EU), CB, Customs Union (CU)
