Description
The Vertiv Avocent LongView KVM extender, in blue, works as a transmitter and receiver to carry the video, audio and control signal remotely. Its VGA video port and its USB connection for keyboard and mouse allow the remote equipment to be managed as if it were local, with a single display supported. The connectivity technology is wired and it supports Cat5, Cat5e, Cat6 and Cat7 cables, with a maximum transfer distance of 300 m. It reaches a maximum analogue resolution of 1920 x 1200 pixels and offers audio support. Its simplified installation and plug-and-play function speed up commissioning. The housing is made of metal and allows rack mounting, and it has CE, FCC class A and UL certification.
Specifications
Features
- Type: Transmitter & receiver
- Connectivity technology: Wired
- Maximum transfer distance: 300 m
- Cable types supported: Cat5, Cat5e, Cat6, Cat7
- Rack mounting: Yes
- Maximum analog resolution: 1920 x 1200 pixels
- Audio support: Yes
- Product colour: Blue
- Material: Metal
- Easy to install: Yes
- Plug and Play: Yes
- Certification: CE, FCC class A, UL
Transmitter
- Transmitter video port type: VGA
- Transmitter local video port: Yes
- Transmitter local video port type: VGA
- Number of displays supported: 1
- Transmitter local keyboard/mouse port type: USB
- RJ-45 ports quantity (transmitter): 1
Receiver
- Receiver local video port type: VGA
- Receiver local keyboard/mouse port type: USB
- RJ-45 ports quantity (receiver): 1
Power
- AC input voltage: 100-240 V
- AC input frequency: 50 - 60 Hz
- Input current: 100 - 240 A
- AC adapter output voltage: 5 V
- Power consumption (transmitter) (max): 12 W
- Power consumption (receiver) (max): 12 W
Weight & dimensions
- Transmitter width: 16.2 cm
- Transmitter depth: 7.5 cm
- Transmitter height: 2.6 cm
- Transmitter weight: 430 g
- Receiver width: 12.2 cm
- Receiver depth: 7.5 cm
- Receiver height: 2.6 cm
- Receiver weight: 350 g

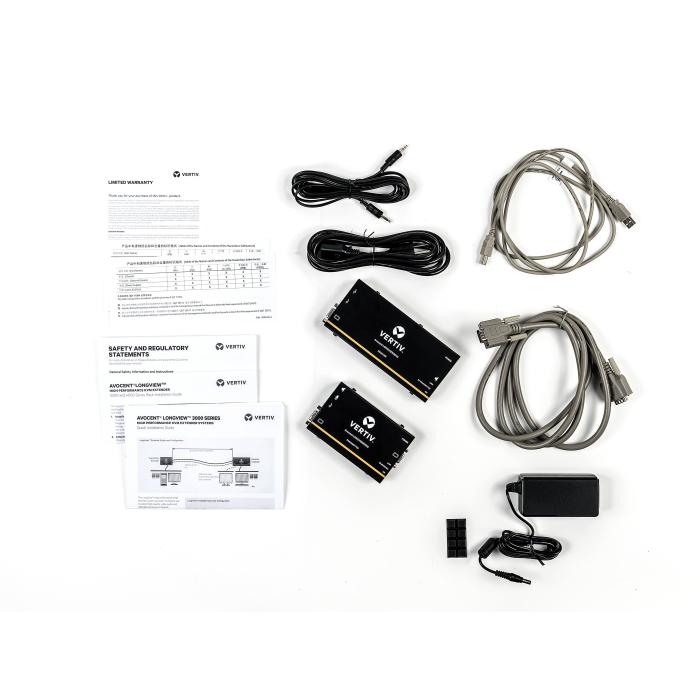

Packaging content
- AC adapter included: Yes
- Cables included: AC, Audio (3.5mm), USB, VGA
- Quick installation guide: Yes
- Mounting bracket(s) included: No
- Included power plug types: UK
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
Technical details
- Maximum resolution: 1920 x 1200 pixels
- Video in: VGA
