Description

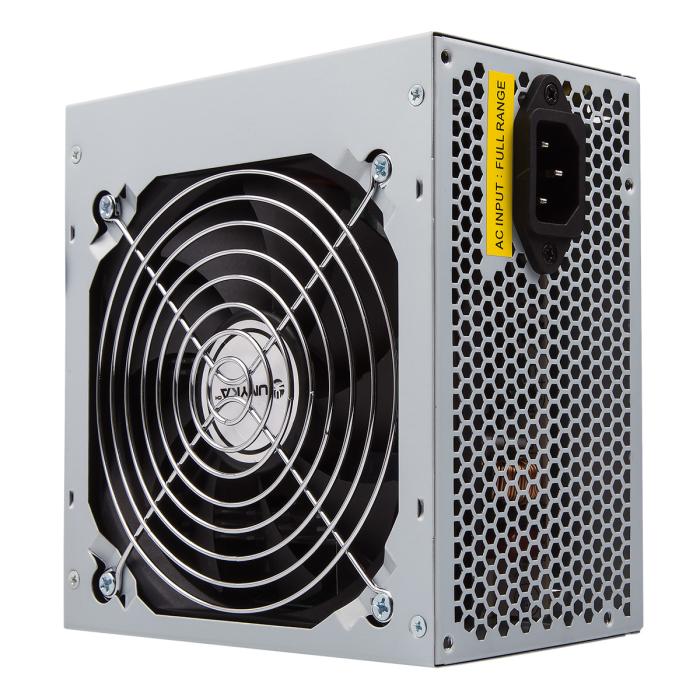

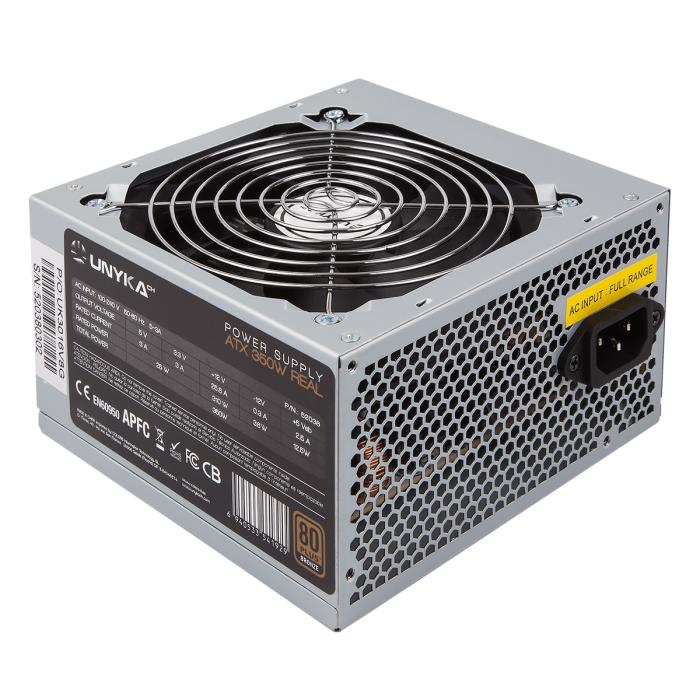

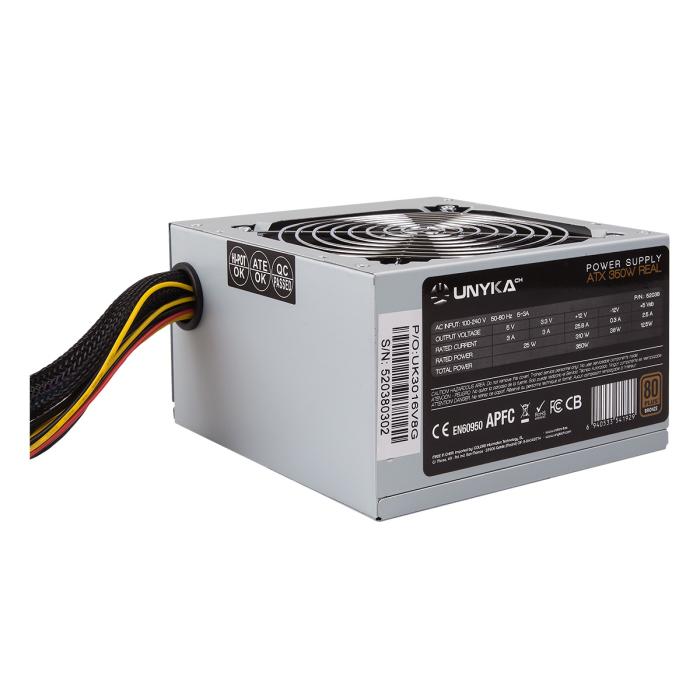

The UNYKAch 52038 is a 350 W ATX power supply unit with active power factor correction, designed to serve desktop configurations. Its design includes an AC input voltage of 100 - 240 V and a frequency of 50 - 60 Hz, with protection against overcurrent, overvoltage, overvoltage, overheating, overload, short circuit and undervoltage. In the output section it offers 25.8 A on the +12 V1 rail, 3 A on +3.3V, 3 A on +5V, 2.5 A on +5Vsb and 0.3 A on -12V. For internal cabling it has a 4 +4 pin CPU power connector with a length of 45 cm, an 8-pin PCI Express connector with 42 cm, three SATA connectors with 380 and 520 mm cables, and two 4-pin Molex peripheral connectors with 380 and 660 mm cables. With dimensions of 150 x 85 x 140 mm (width x height x depth) and a weight of 1.14 kg, it comes in silver.
Specifications
Power
- Total power: 350 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Power Factor Correction (PFC) type: Active
- Max output current (+3.3V): 3 A
- Max output current (+12V1): 25.8 A
- Max output current (+5V): 3 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 2.5 A
- Power protection features: Over current, Over power, Over voltage, Overheating, Overload, Short circuit, Under voltage
Ports & interfaces
- Number of SATA power connectors: 3
- SATA power cable length: 380, 520 mm
- Peripheral (Molex) power connectors (4-pin): 2
- Peripheral (Molex) power cable length: 380, 660 mm
- PCI Express power connectors (8-pin): 1
- PCI Express power cable length: 42 cm
- CPU power connector (4+4 pin): Yes
- CPU power cable length: 45 cm
- Cabling type: Non-Modular
Performance
- 80 PLUS certification: 80 PLUS Bronze
- Supported motherboard form factors: ATX
- Purpose: PC/Server
- Power supply unit (PSU) form factor: ATX
- ATX version: 2.3
- Noise level: 28 dB
Design
- Product colour: Silver

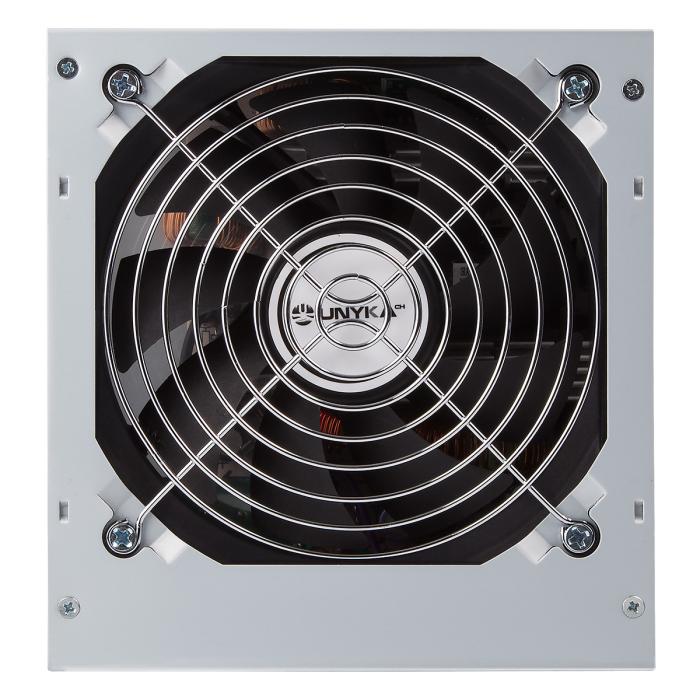

- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
Weight & dimensions
- Width: 150 mm
- Depth: 140 mm
- Height: 85 mm
- Weight: 1.14 kg
Packaging data
- Package width: 150 mm
- Package depth: 140 mm
- Package height: 85 mm
- Package weight: 1.14 kg
Logistics data
- Products per pallet: 10 pc(s)
