Description

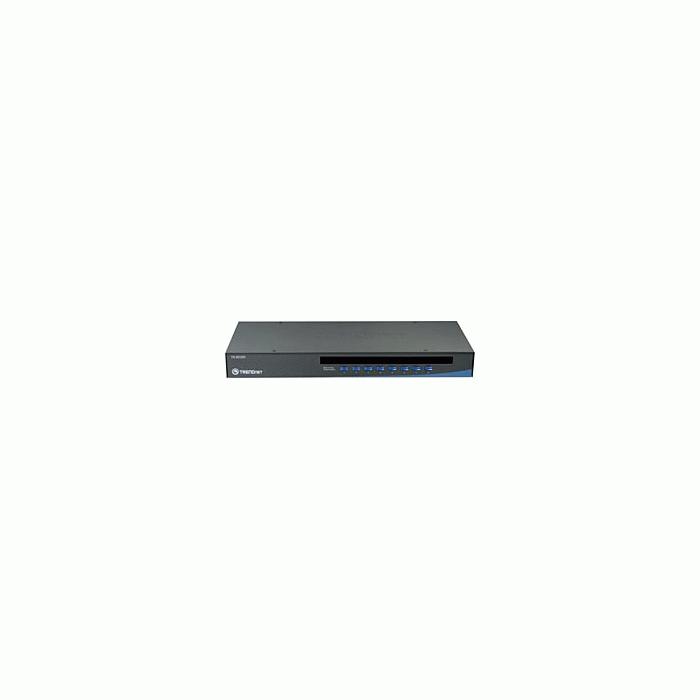

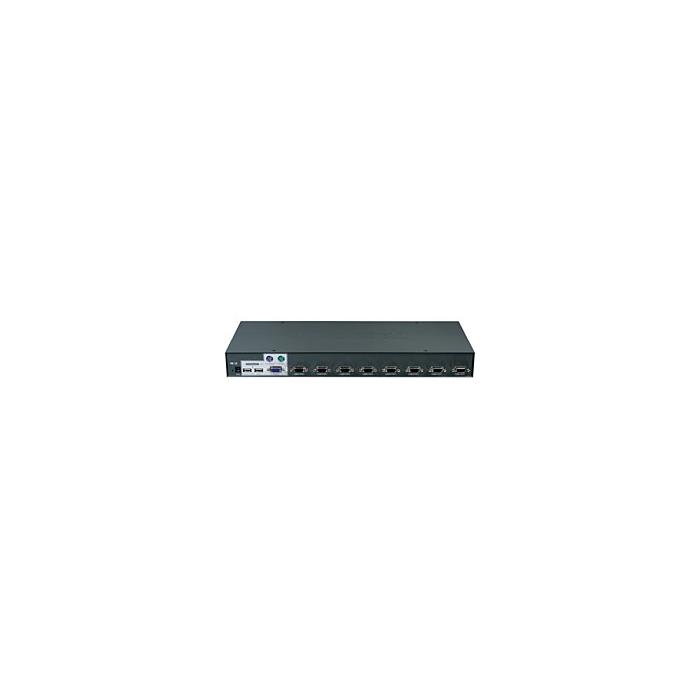

Trendnet TK-803R 8-Port USB/PS/2 Rack Mount KVM switch manages up to eight computers from a single console, combining USB or PS/2 keyboard and mouse ports with VGA video output for versatile control. With 1U rack mounting, this switch integrates into server environments with LED indicators that facilitate monitoring of the active port. Its automatic scanning, with a 10-second interval between units, and a maximum resolution of 2048x1536 pixels ensure sharp display in administration tasks. Compatible with Windows systems from 98 to 2003 Server, Linux and Mac, it operates on 9V DC power and tolerates temperatures from 0 to 40 °C with relative humidity up to 80%, ideal for technical rooms.
Specifications
Ports & interfaces
- Number of computers controlled: 8
- Keyboard port type: USB, PS/2
- Mouse port type: USB, PS/2
- Video port type: VGA
Performance
- Maximum resolution: 2048 x 1536 pixels
- Scan interval: 10 s
Design
- Rack mounting: Yes
- Rack capacity: 1U
- LED indicators: Yes
- Certification: CE, FCC
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
Weight & dimensions
- Weight: 1.83 kg
Other features
- Connectivity technology: Wired
- Dimensions (WxDxH): 407 x 165 x 45 mm
- Ports quantity: 8
- Compatible operating systems: Windows 98(SE)/ME/ 2000/XP/2003 Server, Linux, Mac.
- Power requirements: 9V DC, 1A
Logistics data
- Harmonized System (HS) code: 85176200
