Description

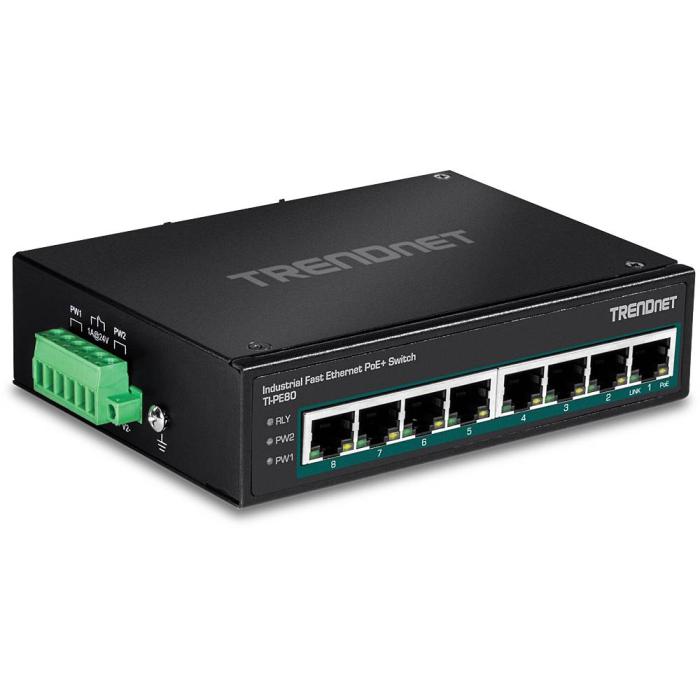

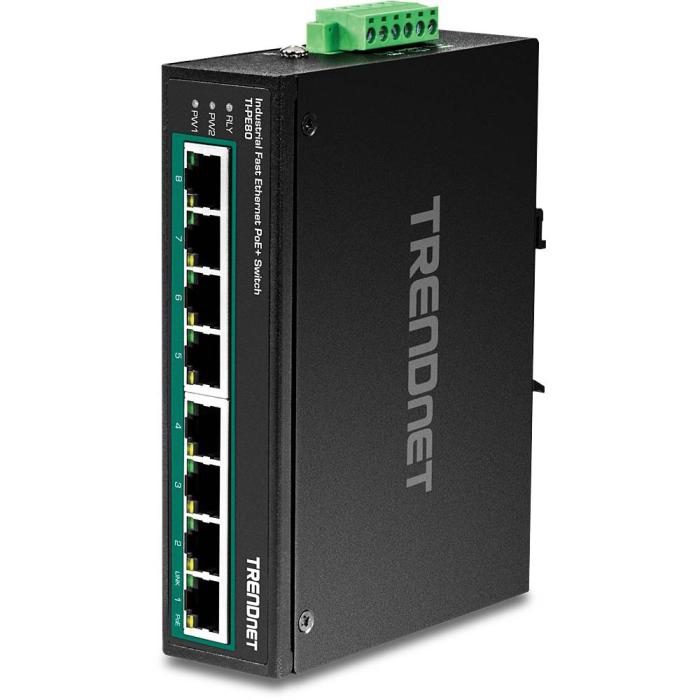

The Trendnet TI-PE80 unmanaged switch in black features eight RJ-45 Fast Ethernet (10/100) ports with PoE support, complying with IEEE 802.3af and 802.3at standards. Its metal housing with IP30 protection and wall or DIN rail mounting options make it suitable for industrial or office environments. With a switching capacity of 1.6 Gbit/s, a MAC address table of 1000 entries and forwarding of 1.19 Mpps, it manages network traffic efficiently. The 1 MB buffer memory and full duplex support per IEEE 802.3x ensure smooth transmission, with LED indicators to monitor the status of each connection.
Specifications
Management features
- Switch type: Unmanaged
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Network
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Full duplex: Yes
Data transmission
- Switching capacity: 1.6 Gbit/s
- Forwarding rate: 1.19 Mpps
- MAC address table: 1000 entries
- Packet buffer memory: 1 MB
Design
- Rack mounting: No
- Product colour: Black
- Housing material: Metal

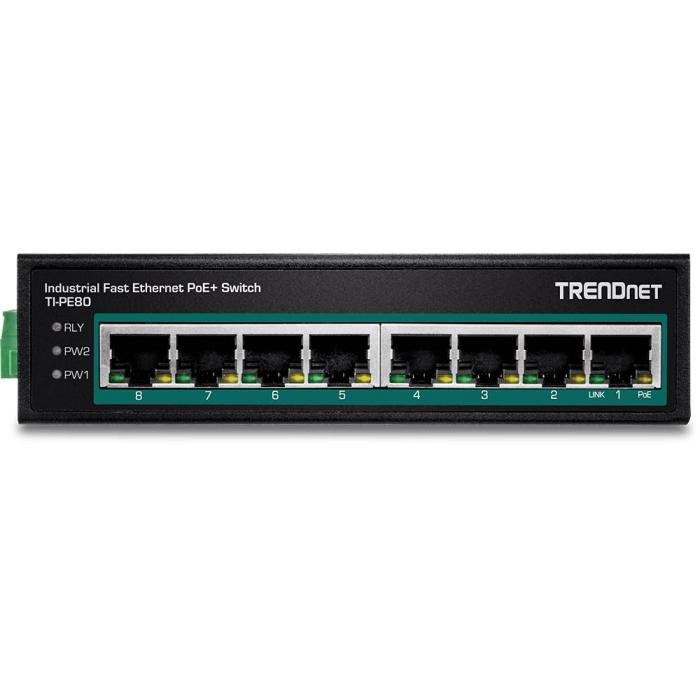

- LED indicators: Yes
- International Protection (IP) code: IP30

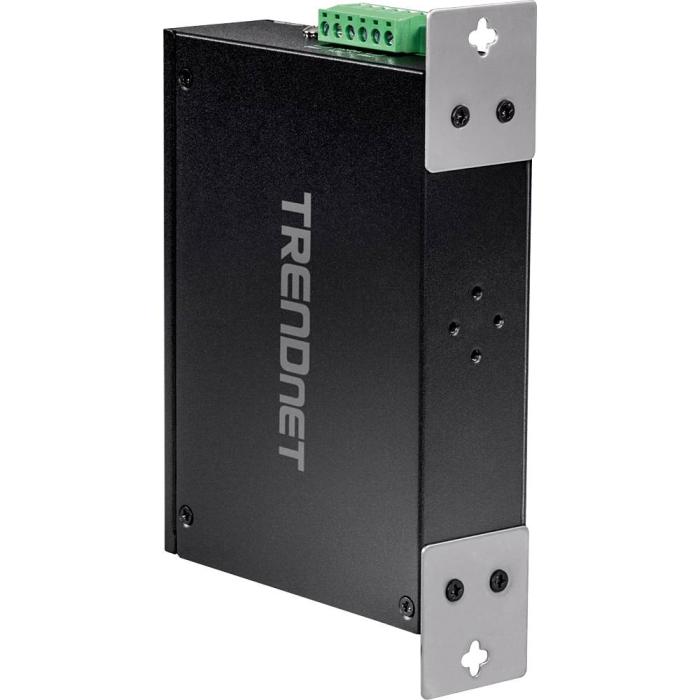

- Wall mountable: Yes

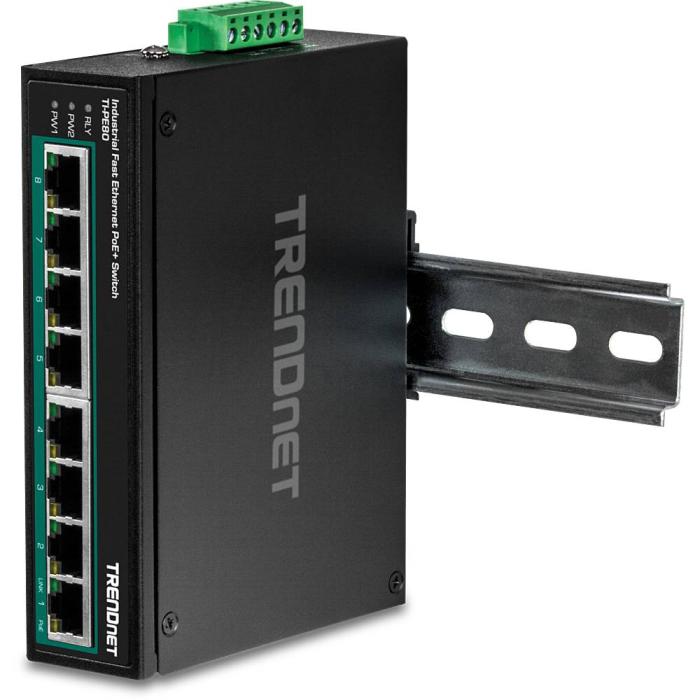

- DIN rail mounting: Yes
Performance
- Mean time between failures (MTBF): 510304 h
Power

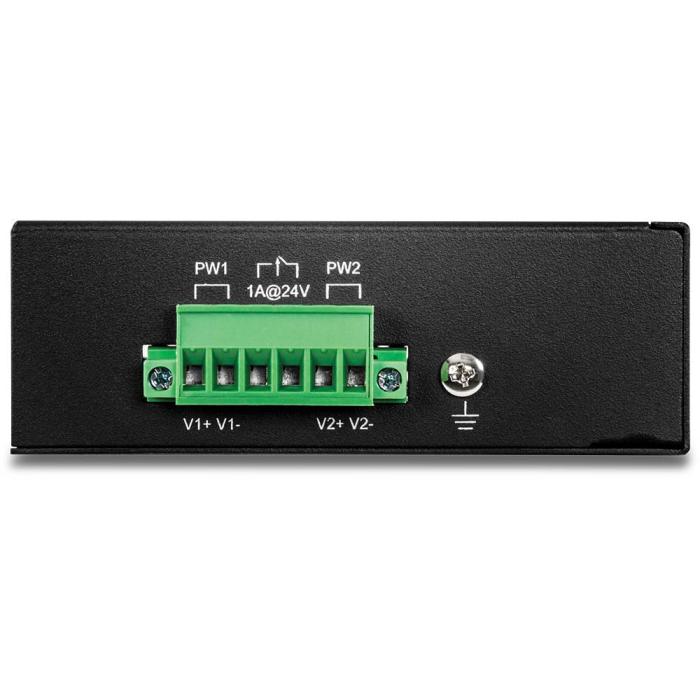

- Redundant power supply (RPS) support: Yes
- DC input voltage: 48 - 56 V
- Power consumption (max): 5.76 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet plus (PoE+) ports quantity: 8
- Total Power over Ethernet (PoE) budget: 200 W
Operational conditions
- Operating temperature (T-T): -40 - 75 °C
- Operating relative humidity (H-H): 0 - 95%
Weight & dimensions
- Width: 142 mm
- Depth: 105 mm
- Height: 37 mm
- Weight: 486 g
Packaging content
- Quick start guide: Yes
Certificates
- Certification: CE FCC UL IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6
Logistics data
- Harmonized System (HS) code: 85176990
